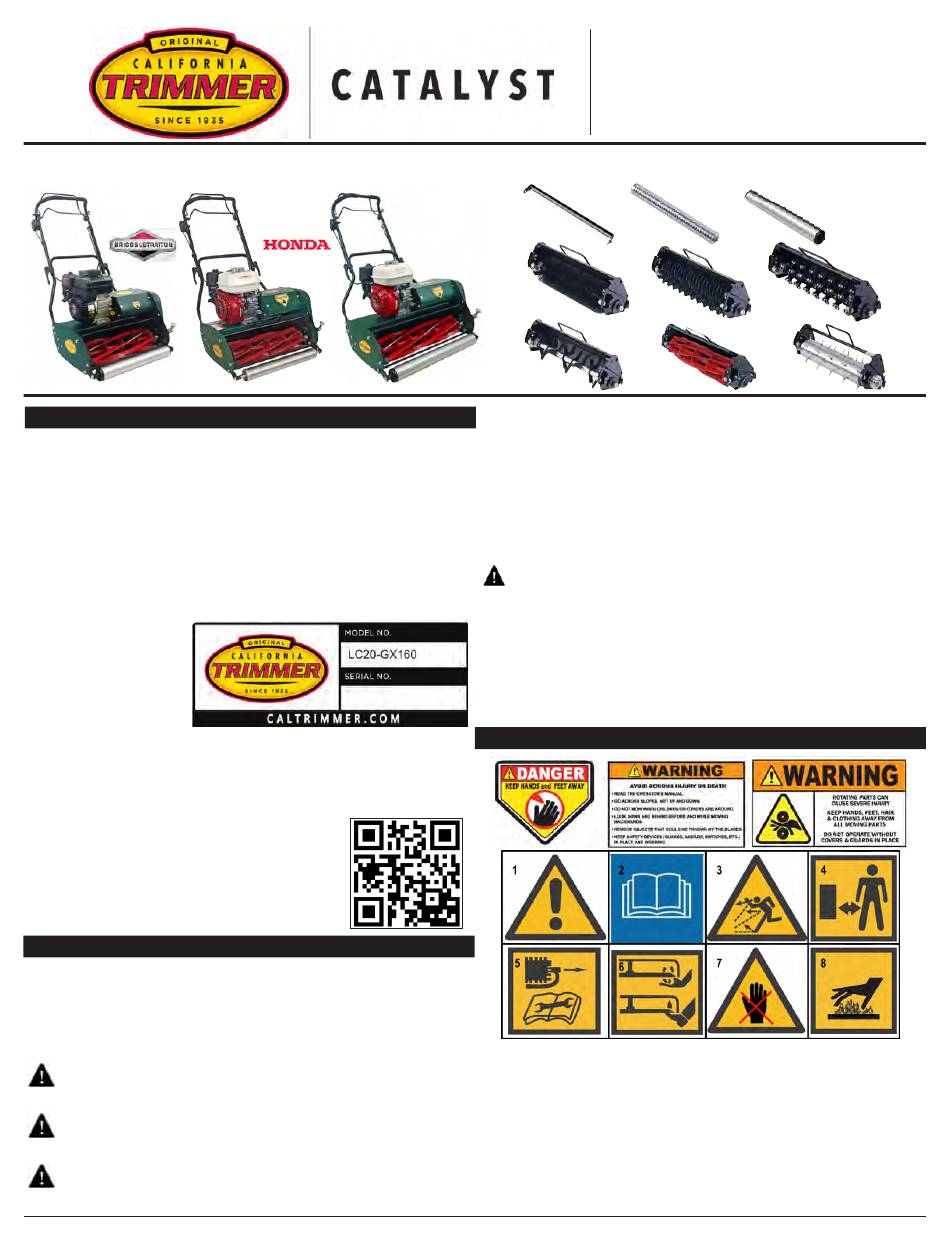

California Trimmer CATALYST LC20 Operator's Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

20" & 25" MODELS: LC20 / LC25
XR3.5
INTRODUCTION
ReAD this infoRmAtion cARefuLLy to LeARn how to
opeRAte AnD mAintAin the pRoDuct pRopeRLy AnD
to AVoiD injuRy AnD pRoDuct DAmAGe. it pRoViDes
instRuctions AnD RecomenDAtions foR the key
Aspects of the pRoDuct. ADDitonAL instALLAtion,
technciAL seRVice AnD pARts infoRmAtion is
AVAiLABLe on ouR wesBite: cALtRimmeR.com oR
contAct us DiRectLy foR Any Questions.
The unit's model and
serial numbers are located
on the decal next to the
engine. Write the numbers
in the space provided
below.
model number: ____________________________________________
serial number: ____________________________________________
You can complete and mail the enclosed product
registration forms (California Trimmer and Honda or
Briggs & Stratton Engine) or you can register on-line
at: caltrimmer.com.
SAFETY & PRECAUTIONS
The following safety alert symbols are used in these instructions and on
the unit itself in conjunction with important safety messages related to the
operation of the unit and potential hazards. As you familiarize yourself with
the various features and functionality of this product, please take note of
the subjects and specific instructions / labels that include these alerts:
cAution
unit damage or loss of functionality if the instructions are not followed.
wARninG
cAn cause serious injury if the instructions are not followed.
DAnGeR
wiLL cause serious or fatal injury if the instructions are not followed.
Evergreen Turf Equipment ▪ 1028 4th St SW / Bldg A ▪ Auburn, WA 98001 ▪ Phone: 253-333-3345 ▪ Web: caltrimmer.com ▪ Email: info@caltrimmer.com
GX160
OPERATOR'S
OPTIONAL ACCESSORIES & CARTRIDGES
turf Rake
Lawn Brush
Dethatcher
This product may only be used for the tasks it is designed to handle, and
any other use is deemed to be a case of misuse. The user/operator, not
the manufacturer will be liable for any damage or injuries of any kind
caused as a result . It is intended for use in home gardening as well as
fine turf sports field environments. The operating instructions as supplied
by the manufacturer must be kept and referred to in order to ensure that
the lawn mower is properly used and maintained. The instructions contain
valuable information on operating, maintenance, and servicing conditions.
wARninG:
Due to the high risk of bodily injury to the user, the
lawn mower may not be used to trim bushes, hedges or shrubs, to cut
scaling vegetation, planted roofs, or balcony-grown grass, or to chop up
tree or hedge clippings. Moreover, the lawn mower may not be used as
a power cultivator to level out high areas such as molehills. For safety
reasons, the lawn mower may not be used as a drive unit for other work
tools or toolkits of any kind.
ON-PRODUCT SAFETY LABELS
1. Notice of safety information about hazards that can result in injury.
2. Read the instructions and follow all warning and safety instructions.
3. Be careful to prevent debris from being thrown.
4. Bystanders should always maintain a safe distance during operation.
5. Stop engine and remove spark plug wire before maintenance, and
clearing debris.
6. Do not place hands or feet into the cutting unit.
7. Do not touch rotating parts.
8. Do not touch hot surfaces.
MANUAL
Grooved Roller
smooth Roller
Verticutter
Scarifier
7/10-Blade Reel
Aerator
