Thank you for purchasing this quality product. Be sure to unpack carefully looking for small parts which may
have come loose during shipment.
Read all instruction and study the drawing carefully before starting the assembly process.
HARDWARE PACK OF HEAD BOARD
NO.
DRAWING
DESCRIPTION
A
Bolt
B
Flat washer
C
Lock washer
D
Hex wrench

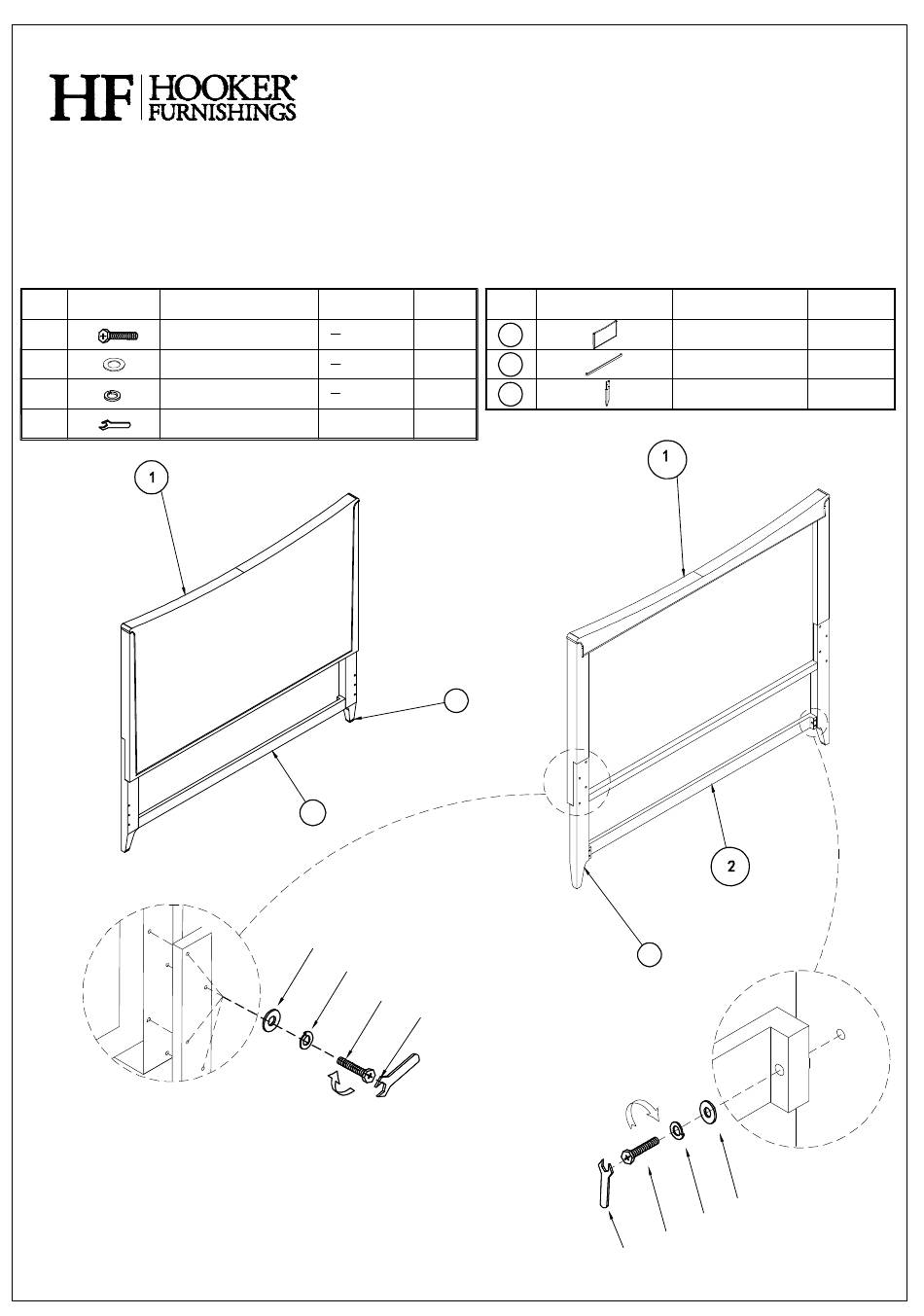

Step 1
Adjust levelers if needed, to level case on uneven floor
ASSEMBLY INSTRUCTION
Item ： 6900-90867-04 6/0 -6/6 Low HeadBoard
6900-90868-04 6/0 Panel Footboard
6900-90853-88 6/0-6/6 Rails
SIZE
QTY
5
10pcs
"x2"
16
5
10pcs
"x19x2
16
5
10pcs
"x12x3
16
1pc
12mm
3
2
B
C
A
D
PART LIST
NO.
DRAWING
1
2
3
3
A
Step 2
D
DESCRIPTION
QTY
Headboard
1pc
Stretcher
1pc
Leg
2pcs
B
C
Page 1 of 2
