Table of Contents General ............................... 4 Safety ..............................4 Responsibilities of Installers and Operators ..................4 Services ..............................4 Limited Warranty ..........................5 Part Disposal ............................5 Applicability ............................6 General ..............................6 Intended Use ............................6 2.2.1 Multi-Sensor-Controller MSC2 ....................6 2.2.2 Multi-Sensor-Controller MSC2 in combination with DEM-06-IO ..........
Page 3
Stand-Alone-Operation ........................20 Addressing for DGC-06 Mode ......................20 Running-in Characteristics ......................... 21 Functional Test ........................... 21 7.10 Calibration SC2/MC2/SSAX1 ......................21 Operating Modes ..........................22 Restart (Diagnostic and Warm-up Stage) ................... 22 Measuring Mode ..........................22 Special Mode ............................23 8.3.1 Maintenance and Calibration Mode ..................
1 General 1.1 Safety The user manual must be carefully read, understood and followed by all persons who install, use, maintain and check the product. The product can fulfil its intended functions only if it is installed, used, maintained, cared for and checked in accordance with the instructions provided by MSR-Electronic GmbH.
1.4 Limited Warranty MSR-Electronic GmbH does not assume any liability in case of improper or incorrect use of the de-vice. The installer and operator are solely responsible for the design and use of the product. If the product is not used, maintained or repaired in accordance with the user manual, warranty and product liability claims as well as claims arising from any guarantees assumed by MSR-Electronic GmbH for the product will be forfeited.

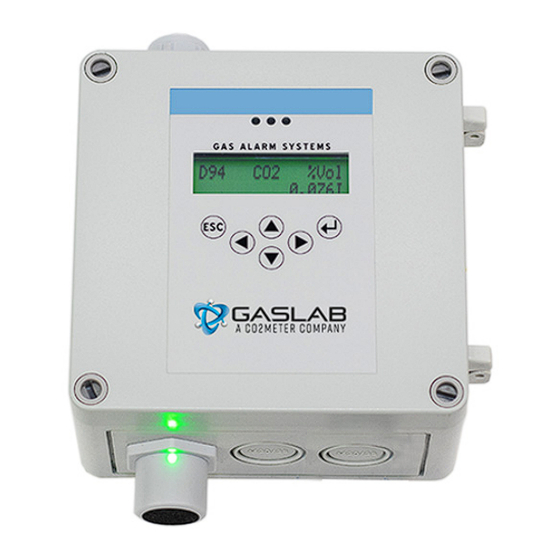

2 Applicability 2.1 General This User Manual is only valid for: • PolyGard2-Series: o Multi-Sensor-Controller MSC2 o Multi-Sensor-Controller MSC2 in combination with the Door-Entrance-Module DEM-06-IO o Multi-Sensor-Board MSB2 ® ® If the PolyGard 2 device has a display or if the Service-Tool is used, the User Manual “PolyGard 2 and PolyXeta Service-Tool and Display”...
3 Functional Description 3.1 General The function of the sensor series SC2/MC2and/or SSAX1 is not subject of this manual but can be read in the User Manual of SC2/MC2 or SSAX1. Connection Options for SC2 Sensors via MC2 Sensors with SSAX1-2 Sensor via Local Bus_1 or Sensors Local Bus_1 or _2...
3.1.2 Multi-Sensor-Controller MSC2 in combination with DEM-06-IO The MSC2 in conjunction with the DEM-06-IO Door-Entrance-Module has 2 local bus slots for SC2 sensors of different gas types or one analog input for an MC2 sensor with 4–20 mA signal. A maximum of 2 sensor inputs of each combination can be used thereof.
3.5 Horn Function (not safe output circuit because resettable) The horn function is considered to be active if at least one of the 2 parameters (time or assignment to digital input) is set. The horn function retains its functionality even for alarms in latching mode. Special function: Recurrence of the horn relay After an alarm has been triggered, the horn will remain active until it is acknowledged.
4 Mounting Instructions Check for completeness and accuracy using the delivery documents and the identification label on the device. Caution: Electronics can be destroyed by electrostatic discharge (ESD). Therefore, the installation work should be done only by persons connected to ground, e. g. by standing on a conductive floor or by taking appropriate grounding measures (acc.
4.2 Installation Work Caution: Assembly work must only be carried out under gas-free conditions. The housing must neither be spot-drilled nor drilled through outside the knockouts. The installation position of the gas detector is always with the sensor head downwards, cables are introduced from above.
5 Electrical Connection Caution: Assembly work must only be carried out under gas-free conditions! Consider static electricity instructions (ESD)! 5.1 General Notes • Only a professional should perform the wiring and the connection of the electrical installation according to the wiring diagram in compliance with the relevant regulations and only when de-energized. •...
• When choosing the option “Power Supply ≥ 90 VAC” you must make sure that a switch or a circuit breaker is provided in the building automation especially for the unit. It must be installed easily accessi- ble near the unit. It has to be marked as a disconnecting device for the unit and shall meet the relevant requirements of UL/IEC 60947 and UL/IEC 60947-3.
5.3 Connection Diagrams 5.3.1 Operating voltage of MSC2, MSC2 with DEM-06-IO-A Type 2: Type 5: Type 7 & 9: Terminal 24 V DC ± 20 % 5 VA 15 VA Connection 24 V AC ± 15 %, 50/60 Hz 100-240 V AC, 50/60 Hz 100-240 V AC, 50/60 Hz UL Version Terminal...
5.3.3 Inputs and Outputs of MSC2 with DEM-06-IO Relay Relay Relay Alarm 1 Alarm 2 Fault Relays: Power Supply Max. 250 V AC Relay Status LEDs (green) Drawing = De-energized Operating Mode = Energized (Alarm ON = Relay OFF) Multi-Sensor-Controller MSC2 Board Status LED Version DEM-06 yellow/green/red (like WAO)
7 Commissioning 7.1 General Notes Before delivery all devices without exception run through a complete functional test with an initial calibration of the sensors. However, transportation, storage, installation or special environmental conditions may lead to (mostly small) deviations. It is therefore necessary that a person authorized by the manufacturer or alternatively an expert puts the device properly into operation and performs a functional test.
7.4 Registration/Assignment of SC2/MC2/SSAX1 SC2 or SSAX1 physically connected to the device are registered on the device. The sensor is automatically rec- ognized via the gas type and measuring range factory-integrated in the SC2/SSAX1 address. For MC2 series sensors, the 4–20 mA signal is recognised/monitored. Please refer to the User Manuals of the Service- Tool STL06 or PCE06-Software for descriptions of the registration process.
7.5 Checking / Changing Operating Parameters The base parameter set is stored in the unit in a fail-safe manner and documented in the enclosed calibration and test protocol. Necessary changes of parameters for adaptation to the application are to be carried out only by experts with the Service-Tool STL06 or the PCE06-Software tool or, if available, on the display.
7.8 Running-in Characteristics After switching on or after an internal reset of the microcontroller, the device always runs through a start rou- tine with defined status of the outputs. The start always begins with the diagnosis and warm-up stages. When they have succeeded and finished, the measurement operation starts.
8 Operating Modes During operation, the unit can assume different operating modes. A distinction is made between the warm-up phase, measuring mode and special mode, whereby special mode is divided into 2 different subcategories. 8.1 Restart (Diagnostic and Warm-up Stage) The device is designed in a way that it generally runs through all internal device tests (diagnostics) in the Board and in the connected sensor head(s) after each power-up or processor reset before the measuring operation starts.
If the measurement signal falls below the zero point, this will be tolerated • for combustible gases with catalytic bead sensor element (Pellistor) up to a limit of - 10 % of the meas- uring range, the analog output signal drops down to 2.4 mA, within this range no error is generated, •...
8.3.1 Maintenance and Calibration Mode Caution: The operator may set the gas detector in the Special Mode only when gas-free state is ensured (no alarm), because the alarm function is not available in this mode. The operator can activate the Special Mode on the optional display or via the external Service-Tool STL06 or the PCE06-Software.
Page 25
Display Fault Analog Cause Remedy Field Bus Relay Output Error Code Text Mess. Sensor Head (SC2 or MC2) Reaction on Board DP1- Sensor element defective 0x8001h Sensor Temperature < -35 °C, > +60 °C 0x8040h Overtemp. Measured value processing 0x8002h ADC Error Replace Internal...
9 Maintenance and Servicing Caution: For testing the sensor, do not use a lighter. If gassed with a lighter the sensor cannot be employed for reliable measurement and must first be recalibrated. The sensor may be damaged, and the cali- bration should then be repeated at much shorter intervals.
9.1 Visual Inspection Note: As described in Chapter 9, the visual inspection interval may deviate from the manufacturer's recommendation depending on the type of gas and ambient conditions and must always be determined by the person responsible for the gas warning system. The visual inspection should be carried out every 3 months by an instructed person and includes at least the following activities: •...
9.2 Function Control / Calibration and Adjustment Caution: Applying the test gas causes the adjustment of the current signal at the analog output and the trig- gering of the alarm relay. Connected actuators are put on alert. Note: As described in chapter 9, the function control interval may deviate from the manufacturer's recommendation depending on the type of gas and ambient conditions and must always be determined by the person responsible for the gas warning system.
9.3 System Check / Proof Test Measuring and testing equipment used within of the proof test (multimeters, etc.), must be in a proper state. To meet this requirement, the measuring devices have to be calibrated at regular intervals. The system check has to be carried out by a qualified person at least every 12 months and includes at least the following activities: •...
9.5 Exchange of Sensor Head Instead of performing a field calibration you can simply and comfortably replace the sensor head in the field by a calibrated one. At the end of sensor lifetime, it is the same procedure. Sensor Head SC2/SSAX1 The communication of the local bus (SC2/SSAX1 <>...
10 Partner protection To prevent 3 parties from accessing sensitive parameter and calibration data, every customer receives his own ® internal partner ID (PID). The PolyGard 2 devices (GC-06, Service-Tool STL06, PCE06-Software and the SB2, WSB2, MSB2 Boards with display option) are supplied with this individual internal PID for each partner. The SB2, WSB2, MSB2 Boards without display receive the PID during addressing via the Service-Tool STL06 or the PCE06-Software.
12 Configuration and Parameter Cards Commission: Order Number: Customer: Service Technician: Commissioning Company: Date: 12.1 Configuration Card of System Parameters Serial No. Date of Pro- Mainten. AV Time Power Dead duction Interval On Time Band Note down Note down 1900 AO Function Relay Multiplication Output...
13 Technical Data All specifications were collected under optimal test conditions. We confirm compliance with the minimum requirements of the applicable standard. ELECTRICAL MSC2 power supply 24 V DC ± 20 %, reverse-polarity protected 24 V AC ± 15 % (power limited, see Connection Diagrams) MSB2 power supply 16–29 V DC, reverse-polarity protected MSC2 &...
Page 34
PHYSICAL Housing type C/E Polycarbonate Flammability classification UL 94 V2 Housing colour Similar to RAL 7035 (light grey) Dimensions housing (W x H x D) • Housing type C 130 x 130 x 75 mm (5.12 x 5.12 x 2.95 in.) •...
Page 35
OPTIONS DISPLAY LC-Display 2 lines, 16 characters each, background highlighted, 2 colours Operation Menu driven via 6 pushbuttons Power consumption 5 V, 60 mA, 0.3 VA Temperature range -20 °C to +60 °C (-4 °F to 130 °F) WAO STATUS-LED/BUZZER Colour/mode Red/yellow/green (alarm-fault-operation-service) Acoustic pressure...
List of Abbreviations Units Hertz Decibel Milliampere Square millimetre Minute parts per million s, sec. Second Volt (voltage) Voltampere V AC Volt for Alternating Current V DC Volt for Direct Current °C / °F Degree Celsius/Fahrenheit Products from MSR-Electronic GmbH ®...
Glossary Adjustment Correction of the measured value by the deviation from the target value in order to obtain a correct measured value display (see also calibration). Calibration Determination of the deviation between the current value and the actual target value under specified condi- tions (equivalent to adjustment or a combination of calibration and adjustment when calibrating MSR-Electronic GmbH devices).
Warm-up period Time span between switching on the device in a specific to the moment when the measured value reaches the specified deviations. Warm-up time Time until the sensor is ready to measure. Watchdog Function for failure detection of a digital system. If a possible malfunction is detected, a restart is initiated to correct the failure automatically.
Page 42
Product Returns If any Product fails under normal use, you may return it to us, by first submitting a customer case support ticket (click here). Policies and procedures for returns and refunds related to the same are located at www.co2meter.com/pages/faq. All returns for refund after thirty (30) days from shipment of the applicable product will incur a 25% re-stocking fee.
