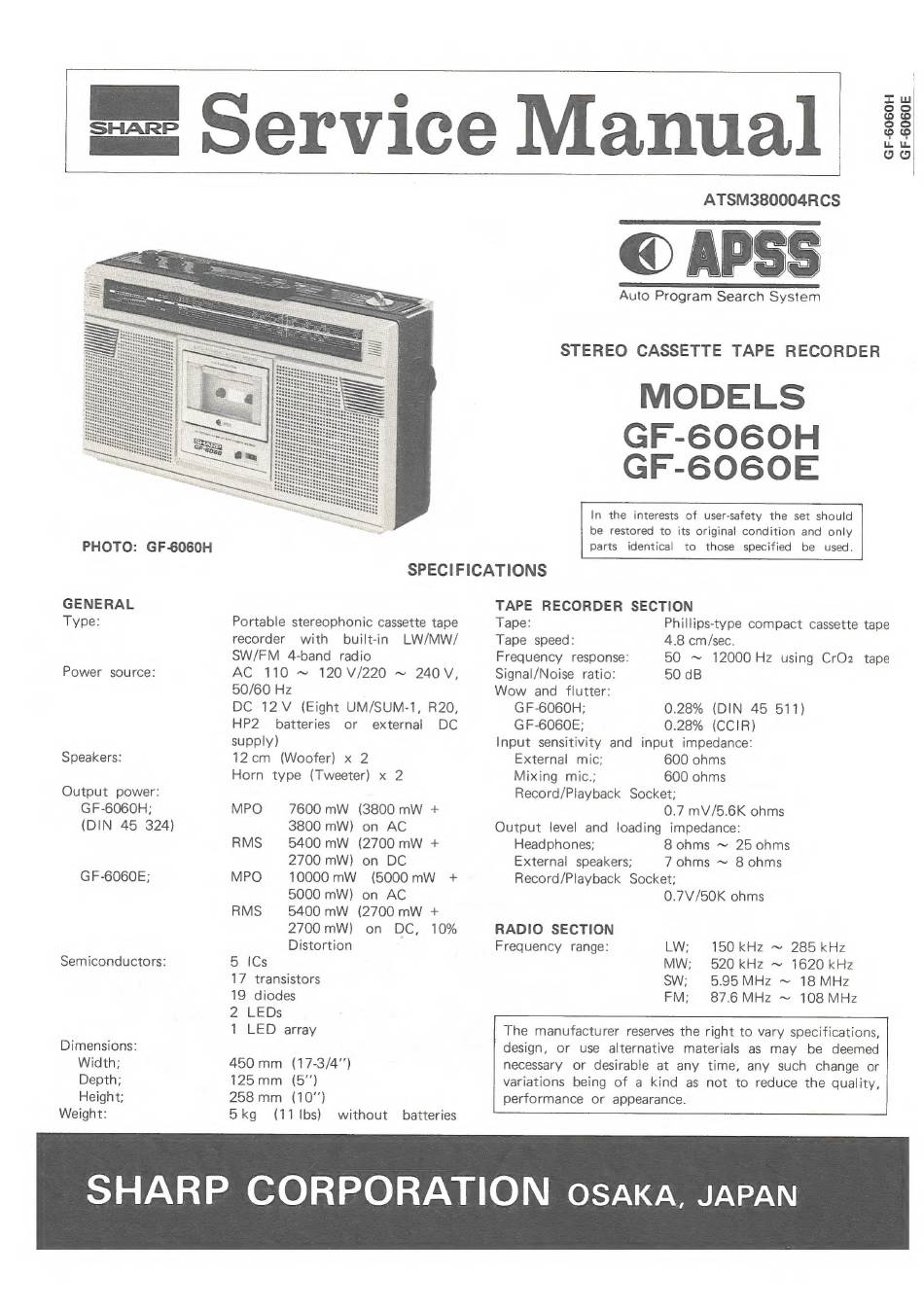

Sharp GF-6060H Service Manual

Service Manual
GF-606 GF-6

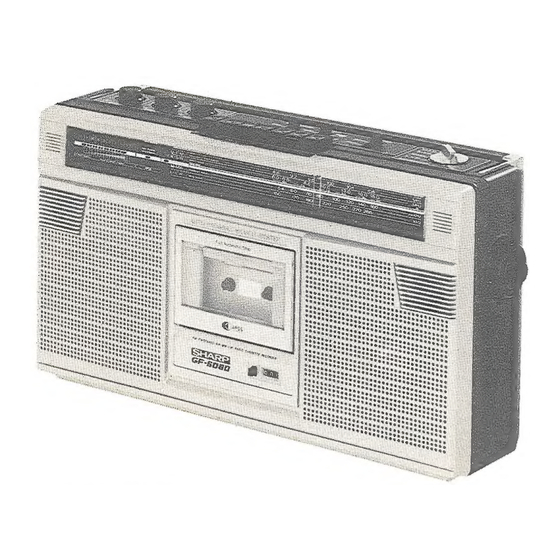

PHOTO: GF-6060H
GENERAL
Type:
Power source:
Speakers:
Output power:
GF-6060H;
(DIN 45 324)
GF-6060E;
Semiconductors:
Dimensions:
Width;
Depth;
Height;
Weight:
ATSM380004RCS
@ APSS
Auto Program Search System
STEREO CASSETTE TAPE RECORDER
MODELS
GF-6060H
GF-6060E
In the interests of user-safety the set should
be restored to its original condition and only
Parts identical to those specified be used.
SPECIFICATIONS
Portable stereophonic cassette tape
recorder with built-in LW/MW/
SW/FM 4-band radio
AC 110 ~ 120 V/220 ~ 240V,
50/60 Hz
DC 12V (Eight UM/SUM-1, R20,
HP2 batteries or external DC
supply)
12cm (Woofer) x 2
Horn type (Tweeter) x 2
MPO 7600 mW (3800 mW +
3800 mW) on AC
RMS 5400 mW (2700 mW +
2700 mW) on DC
MPO 10000 mW (5000mW +
5000 mW) on AC
RMS 5400 mW (2700 mW +
2700 mW) on DC, 10%
Distortion ;
5 Gs
17 transistors
19 diodes
2 LEDs
1 LED array
450 mm (17-3/4")
125mm (5")
258 mm (10)
5kg (11 lbs) without batteries
TAPE RECORDER SECTION
Tape: Phillips-type compact cassette tape
Tape speed: 4.8 cm/sec.
Frequency response: 50 ~ 12000 Hz using CrO2 tape
Signal/Noise ratio: 50 dB
Wow and flutter:
GF-6060H; 0.28% (DIN 45 511)
GF-6060E; 0.28% (CCIR)
Input sensitivity and input impedance:
External mic; 600 ohms
Mixing mic.; 600 ohms
Record/Playback Socket;
0.7 mV/5.6K ohms
Output level and loading impedance:
Headphones; 8 ohms ~ 25 ohms
External speakers; 7 ohms ~ 8 ohms
Record/Playback Socket;
0.7V/50K ohms
RADIO SECTION
Frequency range: LW; 150kHz ~ 285 kHz
MW; 520 kHz ~ 1620 kHz
SW; 5.95MHz ~ 18 MHz
FM; 87.6MHz ~ 108 MHz
The manufacturer reserves the right to vary specifications,
design, or use alternative materials as may be deemed
necessary or desirable at any time, any such change or
variations being of a kind as not to reduce the quality,
performance or appearance.
SHARP CORPORATION OSAKA, JAPAN
