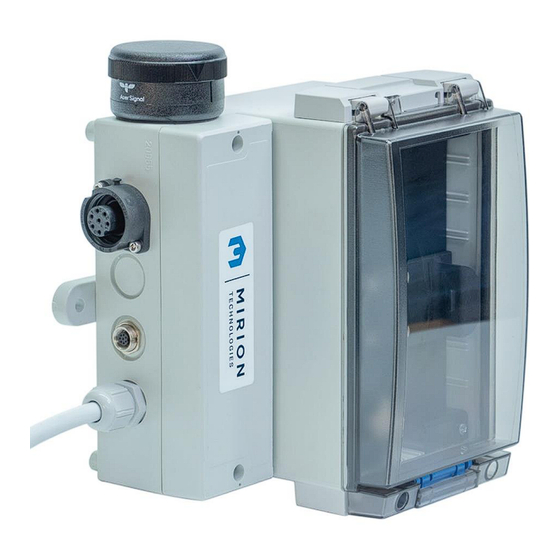

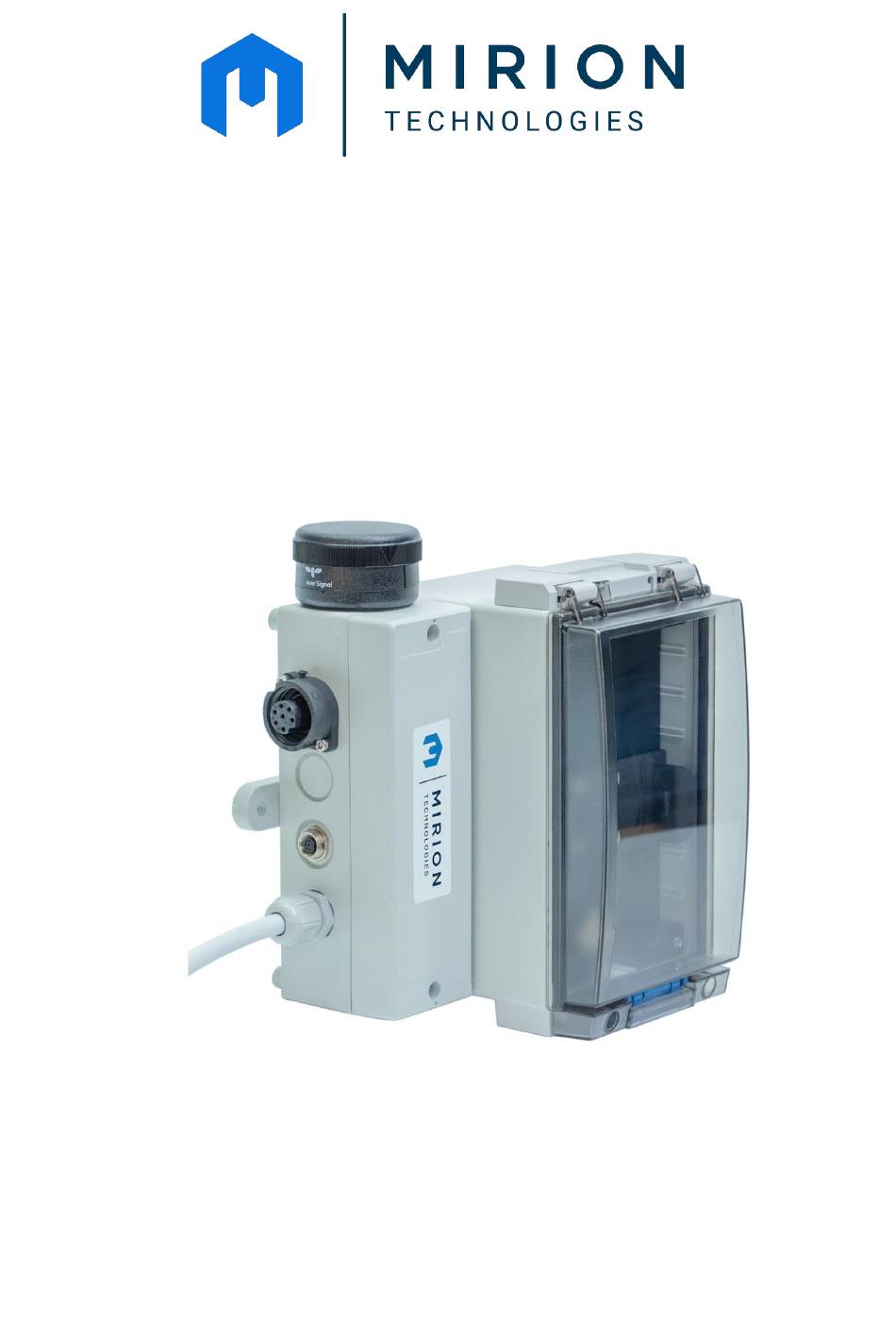

Radiation monitoring alarm box

Advertisement

Quick Links

RDS Radiation Monitoring
Alarm Box
Installation & Configuration Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the RDS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mirion Technologies RDS Series

  • Page 1 RDS Radiation Monitoring Alarm Box Installation & Configuration Instructions...
  • Page 2 ADDRESS ON THE BACK COVER. THERE IS A FEEDBACK FORM AT THE END OF THIS DOCUMENT. ATTENTION! THE ALARM BOX 1233-300 SHOULD BE RECYCLED ACCORDINGLY TO LOCAL REGULATIONS FOR ELECTRONIC COMPONENTS AND BATTERIES. COPYRIGHT © MIRION TECHNOLOGIES (RADOS) OY 2015 Document No. 2096 6619 Version Issue date 30.5.2024...
  • Page 3: Box Installation

    Alarm Box. The RDS-31 requires a box-use dedicated firmware to operate. Turning system on Connect mains supply to box. Turn on the RDS meter in alarm monitor box. Mirion Technologies (RADOS) Oy Alarm Box Instructions V1.5.docx 2096 6619, v1.5, 30.5.2024 / CT...
  • Page 4 COM = pin 1 = pin 2 = pin 3 Relay is rated to 250VAC / 5A Pins 4 – 6 and ground are reserved for signalling lights Mirion Technologies (RADOS) Oy Alarm Box Instructions V1.5.docx 2096 6619, v1.5, 30.5.2024 / CT...
  • Page 5 Connect the LAN cable into the LAN connector and power up the Alarm Box and Start the DeviceInstaller SW. Wait until you see the Lantronix UDS-1100 device in the Device list (if not automatically detected, use “Device/Search” command). Mirion Technologies (RADOS) Oy Alarm Box Instructions V1.5.docx 2096 6619, v1.5, 30.5.2024 / CT...
  • Page 6 Change the setting by typing N Press ENTER until appears Change Setup: Save and exit Select by typing 9 and ENTER Parameters stored … Then select Web Configuration again. Mirion Technologies (RADOS) Oy Alarm Box Instructions V1.5.docx 2096 6619, v1.5, 30.5.2024 / CT...
  • Page 7 Change the setting by typing N Press ENTER until appears Change Setup: Save and exit Select by typing 9 and ENTER Parameters stored … Then select Web Configuration again. Mirion Technologies (RADOS) Oy Alarm Box Instructions V1.5.docx 2096 6619, v1.5, 30.5.2024 / CT...
  • Page 8 Network Mode = Wired Only Use the Following IP Configuration = Yes Fixed IP Address Fixed Subnet Mask Fixed Default Gateway Select OK, when the settings are done. Mirion Technologies (RADOS) Oy Alarm Box Instructions V1.5.docx 2096 6619, v1.5, 30.5.2024 / CT...
  • Page 9 Stop Bits = 1 Configure Flush Mode: Flush Output Buffer = With Active Connect and Flush Output Buffer = With Passive Connect. Select OK, when the settings are done. Mirion Technologies (RADOS) Oy Alarm Box Instructions V1.5.docx 2096 6619, v1.5, 30.5.2024 / CT...
  • Page 10 Local Port: = 7001 Remote Port: = 0 Remote Host: = 0.0.0.0 Configure Disconnect Mode: Inactivity Timeout = 5 mins Select OK, when the settings are done. Mirion Technologies (RADOS) Oy Alarm Box Instructions V1.5.docx 2096 6619, v1.5, 30.5.2024 / CT...
  • Page 11 Wait until the configuration is saved and the UDS-1100 reboots. The DeviceInstaller program must be restarted if you want to check that the settings are saved in the device memory. Mirion Technologies (RADOS) Oy Alarm Box Instructions V1.5.docx 2096 6619, v1.5, 30.5.2024 / CT...
  • Page 12 If you have noticed mistakes, or if any parts of the document remain unclear, please let us know. You can E-mail your feedback to: service.finland@mirion.com Manufacturer: Mirion Technologies (RADOS) Oy Mustionkatu 2 20750 Turku Finland Mirion Technologies (RADOS) Oy Alarm Box Instructions V1.5.docx...
