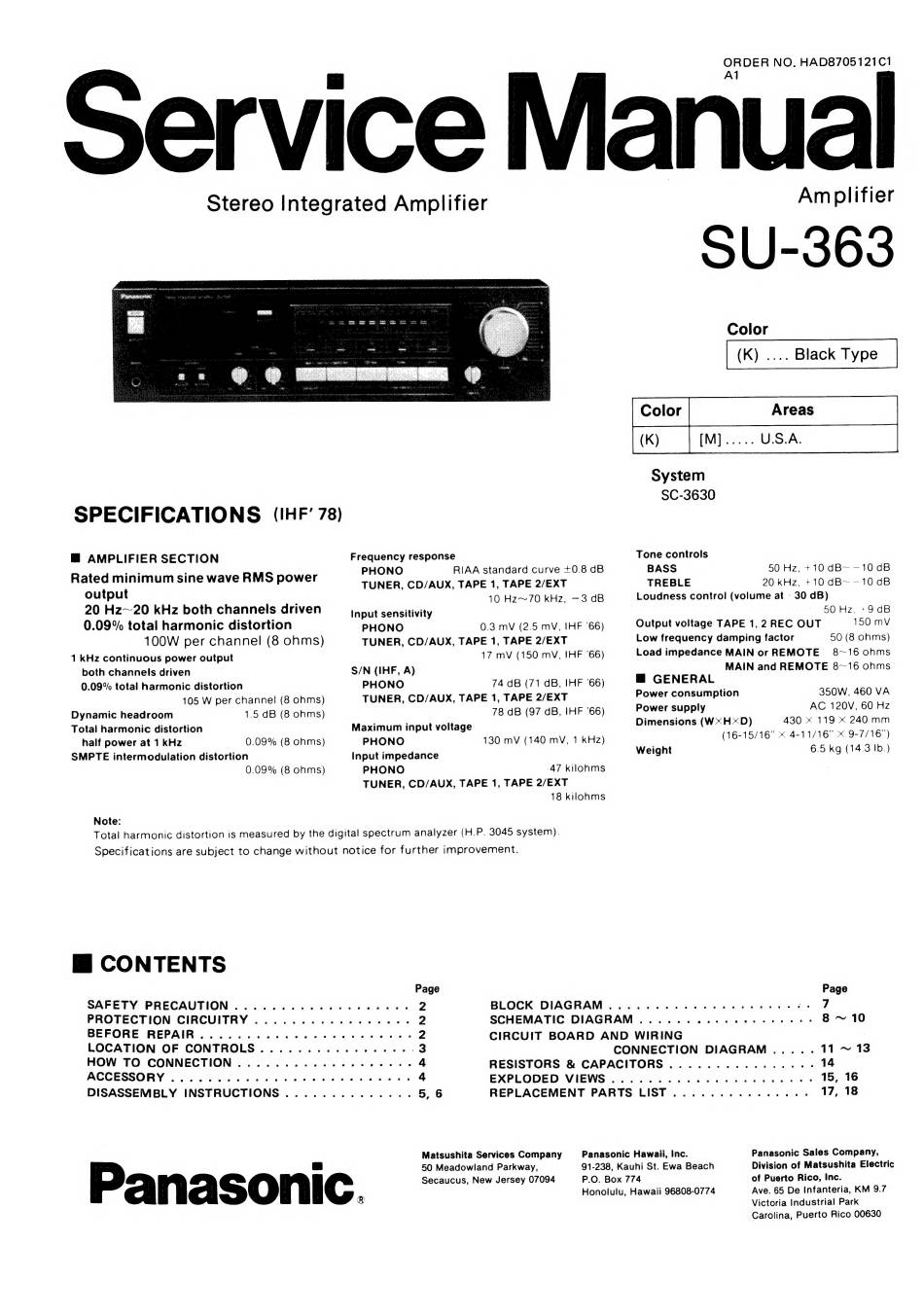

ORDER
NO. HAD8705121C1
U-363
Color
(K) .... Black Type
Stereo Integrated Amplifier
System
SC-3630
SPECIFICATIONS
(IHF' 78)
M AMPLIFIER SECTION
Rated minimum sine wave RMS power
output
20 Hz~20 kHz both channels driven
0.09% total harmonic distortion
100W per channel (8 ohms)
1 kHz continuous power output
both channels driven
0.09% total harmonic distortion
105 W per channel! (8 ohms)
Dynamic headroom
1.5 dB (8 ohms)
Total harmonic distortion
half power at 1 kHz
0.09% (8 ohms)
SMPTE intermodulation distortion
0.09% (8 ohms)
Note:
Frequency response
PHONO
RIAA standard curve +0.8 dB
TUNER, CD/AUX, TAPE 1, TAPE 2/EXT
10 Hz~70 kHz, —3 dB
Input sensitivity
PHONO
0.3 mV (2.5 mV, IHF '66)
TUNER, CD/AUX, TAPE 1, TAPE 2/EXT
17 mV (150 mV, IHF '66)
S/N (IHF, A)
PHONO
74 dB (71 dB, IHF '66)
TUNER, CD/AUX, TAPE 1, TAPE 2/EXT
78 dB (97 dB, IHF '66)
Maximum input voitage
Mi CONTENTS
SAFETY
PRECAUTION...........
PROTECTION
CIRCUITRY
.........
BEFORE
REPAIR
........2.00000.
LOCATION
OF CONTROLS.........
HOW
TO CONNECTION...........
ACCESSORY
......-.
0200 cee eee
Panasonic.
Matsushita Services Company
50 Meadowland Parkway,
Secaucus, New Jersey 07094
Panasonic Hawaii, Inc.
91-238, Kauhi St. Ewa Beach
P.O. Box 774
Honolulu, Hawaii 96808-0774
Tone controls
BASS
50 Hz, +10 dB~ -10 dB
TREBLE
20 kHz,
+10 dB~ ~ 10 dB
Loudness control (volume at » 30 dB)
50 Hz.
+9 dB
Output voltage TAPE 1, 2 REC OUT
150 mV
Low frequency damping factor
50 (8 ohms)
Load impedance MAIN or REMOTE
8~16 ohms
MAIN and REMOTE
8~16 ohms
M@ GENERAL
Power consumption
Power supply
Dimensions (WxHxD)
(16-15/16" < 4-11/16" < 9-7/16")
350W, 460 VA
AC 120V, 60 Hz
430 x 119 Kk 240 mm
PHONO
130 mV (140 mV, 1 KHz)
Input impedance
Weight
6.5 kg (14.3 Ib.)
PHONO
47 kilohms
TUNER, CD/AUX, TAPE 1, TAPE 2/EXT
18 kilohms
Page
Page
Panasonic Sales Company,
Division of Matsushita Electric
of Puerto Rico, Inc.
Ave. 65 De Infanteria, KM 9.7
Victoria Industrial Park
Carolina, Puerto Rico 00630
