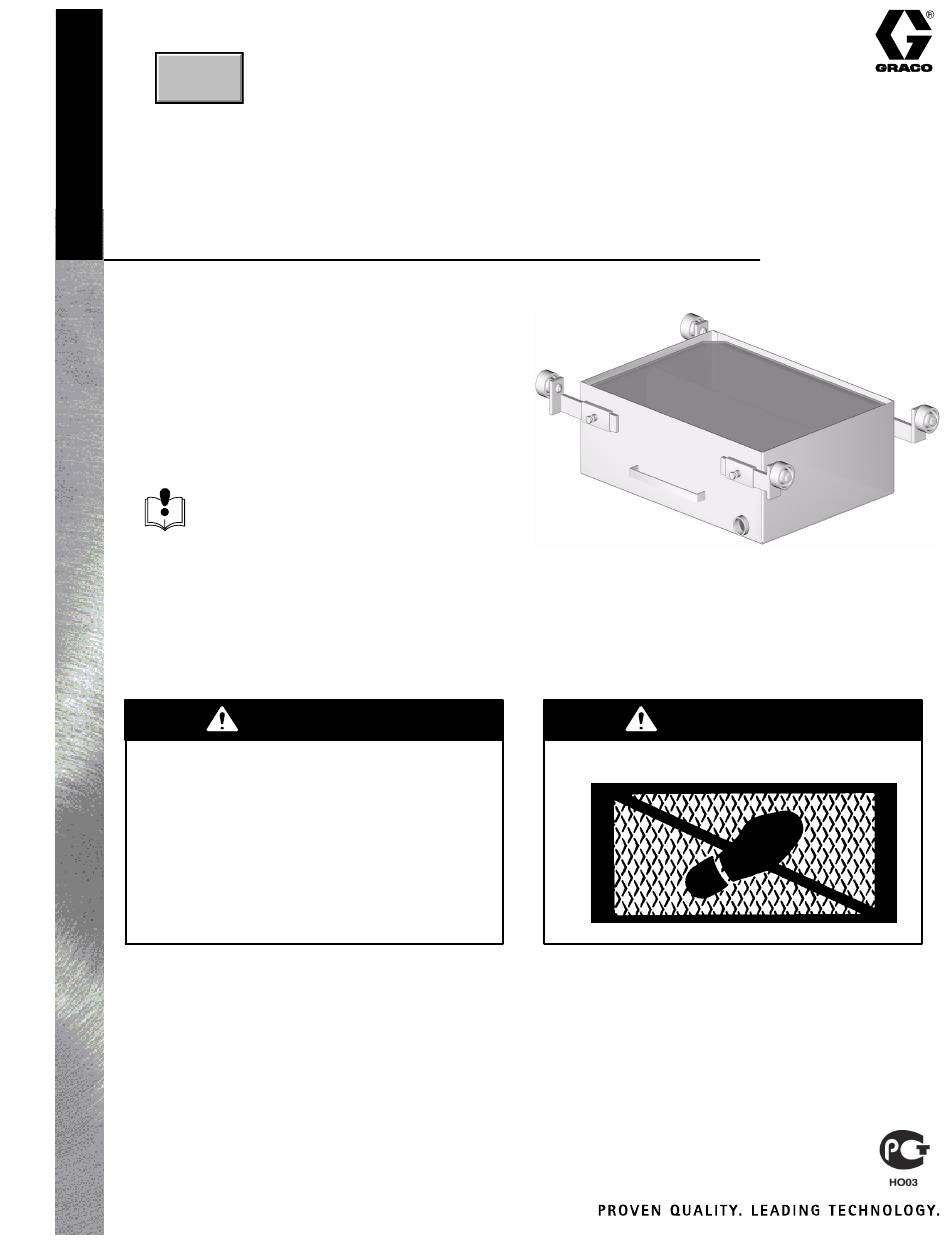

Graco 235346 Instructions-Parts List Manual

Rolling drain cart

Instructions – Parts List

Parts

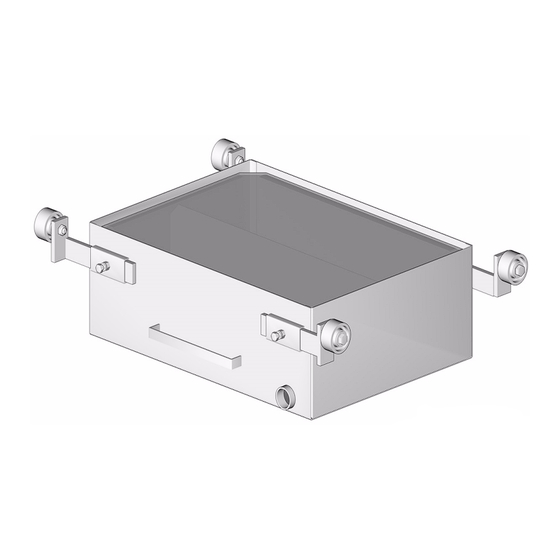

Rolling Drain Cart

For collecting used oil in a fast-lube facility.

Model 218969

30 Gallon Capacity

Model 235346

27 Gallon Capacity

Read warnings and instructions.

WARNING

To reduce the risk of the cart falling off the

track of the service pit, which could result in

serious injury to any person near the cart:

Never extend the wheel arm further than flush

with the inside edge of the arm guide. See

Fig. 1.

Be sure the bolts (6) are torqued into the nuts

(11) to 45–55 ft-lb (62–75 NSm). See Fig. 1.

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441

WARNING

Do not use the drain cart as a step.

307727M

TI6118a

Table of Contents

Need help?

Do you have a question about the 235346 and is the answer not in the manual?

Page 1 Fig. 1. Be sure the bolts (6) are torqued into the nuts (11) to 45–55 ft-lb (62–75 NSm). See Fig. 1. GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 Copyright 1984, Graco Inc. is registered to I.S. EN ISO 9001...
Page 2: Installation
Installation Install the wheels (5) and arms (16–right, 19–left) in the Kit No. 218970 (parts marked with * ) is available for con- arm guides. Extend the arms equally on each side of the necting two carts together and draining one into the other. pan to fit the service pit tracks, but do not extend them See Fig.
Page 3: Parts List
Parts List Models 218969 and 235346 Part No. Description Qty. Part No. Description Qty. 249102 KIT, wheel (Includes 5a–5d) PLUG, pipe; 1–1/2 in. npt 5a** Wheel 108202 CAMLOCK, male,; 1–1/2 in. npt 5b** BOLT, hex head; 108203 CAP, adapter 5/8–11 UNC x 3.25 lg...
Page 4: Dimensional Drawing
2.5 in. (64 mm) Maximum Models 218969 and 235346: Depth: 11 in. (279 mm) Model 218969: Length: 33 in. (838 mm) Model 235346: Length: 29.6 in. (752 mm) I-Beam Dimension Required For Wheel And Bolt Heads 2.5 in. (64 mm)
Page 5 Notes 307727...
Page 6: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
