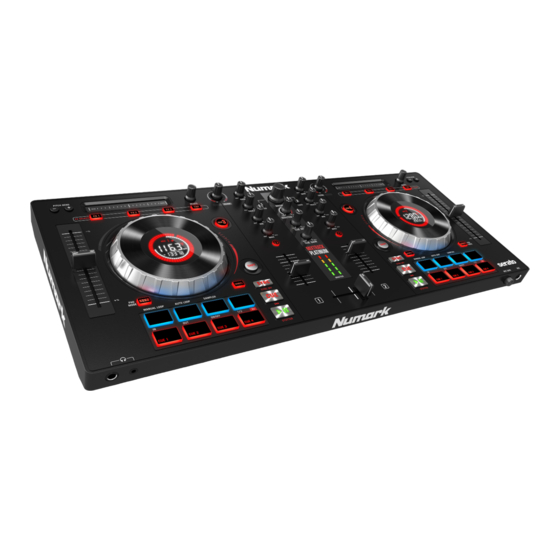

Serato Numark Mixtrack Platinum Manual

Features
Top Panel
16
18
15
20 21
17
26
32
33
1. Browse Knob: Rotate this knob to cycle through folders and tracks. Press the knob to
cycle between the Crates and Library.
2. Master Gain: Adjusts the master volume in the software.
Note: This control does not affect the microphone volume, which is summed with the
final output of the Master Gain to the Master Output. Use the Mic Gain knob to control
the microphone volume.
3. Cue Mix: Adjusts the software's audio output to the headphones, mixing between the
cue output and the master mix output.
4. Cue Gain: Adjusts the volume for headphone cueing in the software.
5. Master Output LEDs: Displays the audio level going to the Master Output.
6. Load: Press one of these buttons while a track is selected to assign it to Deck A or B,
respectively, in the software.
7. Gain: Adjusts the pre-fader, pre-EQ audio level of the corresponding channel in the
software.
8. High EQ: Controls the treble frequencies for the individual channels.
9. Mid EQ: Controls the mid-range frequencies for the individual channels.
10. Low EQ: Controls the bass frequencies for the individual channels.
11. Filter: Adjusts the amount of the filter effect. Turning the knob left and right will produce a
low-pass filter and high-pass filter, respectively.
12. Cue/PFL: Sends pre-fader audio to the Cue Channel for headphone monitoring.
13. Channel Fader: Adjusts the volume of the individual channels in the software.
14. Crossfader: Controls the blend between the two decks.
15. Pitch Bend Down: Press and hold to momentarily reduce the speed of the track.
16. Pitch Bend Up: Press and hold to momentarily increase the speed of the track.
17. Pitch Fader: This controls the speed of the music. Moving towards the "+" will speed the
music up, while moving towards the "–" will slow it down.
19
7
11
22 23
8
9
27
10
12
25
28
13
24
29
30
31
7
11
1
8
6 6
2
9
27
3
10
12
4
28
13
5
29
30
14
31
18
20 21 22
26
25
24
33
15
19
16
23
17
32
3
