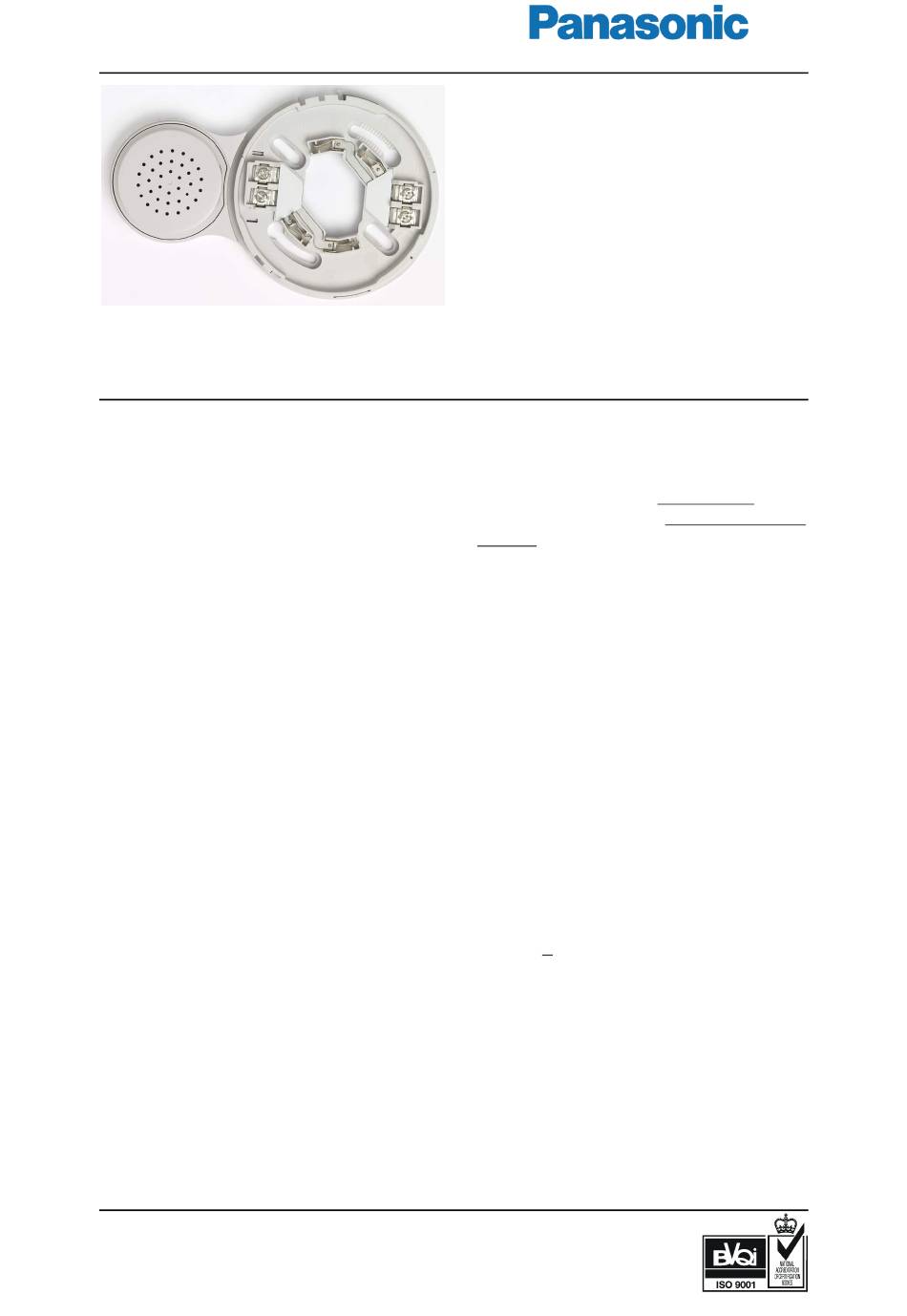

Panasonic 3379 Quick Start Manual


Programmable sounder

Three different sound types and priority levels

Connected directly on the COM loop
General

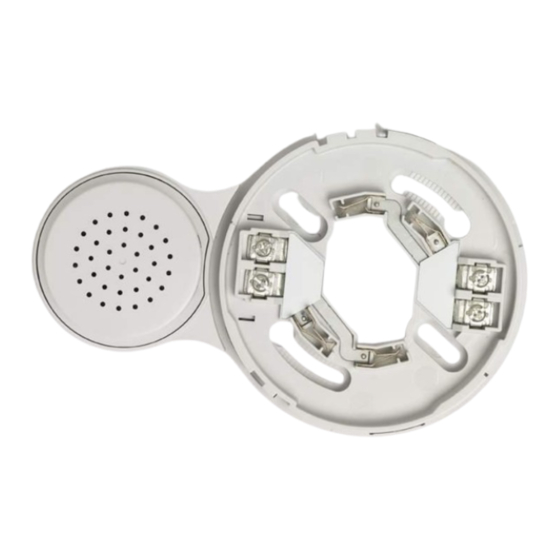

3379 consists of an analog base (similar to
3312) mounted together with a sounder,
which gives an attractive design. The unit is
mounted in the ceiling and a smoke (or heat)
detector can be plugged in the base. The
base is connected directly to the COM loop
like the base 3312.
Programmable output
The sounder is programmed (via Win128 /
Win512 / WinG3) like a programmable
output in the EBL system respectively. The
sounder is mostly used as a fire alarm device
but any of the trigger conditions can be used
in the control expression.
Priority levels
Three priority levels are available in systems
EBL512 and EBL512 G3 (High, Medium &
Low) and two priority levels in system
EBL128 (High & Low). For each priority
level an output control expression and a
sound type have to be programmed.
Sound types
Three Sound types are available:

Steady (continuous) 3650 Hz

Intermittent 3650 Hz,
0.5s on / 0.5s off (1 Hz)

Intermittent 3650 Hz,
0.167s on / 0.167s off (3 Hz)
The sounder can, for example, be used for
pre-warning, fire alarm and general fire
alarm with a different Sound type for each
type of alarm.
Panasonic Eco Solutions Nordic AB
Jungmansgatan 12, SE-211 19 Malmö, Sweden
Tel: +46 (0)40 697 70 00 • Fax: +46 (0)40 697 70 99
E-mail: info.pewnf@eu.panasonic.com • Internet: pesn.panasonic.se
Fire alarm systems
Addressable
sounder base
3379
Address & Mode setting
The COM loop address for the Addressable
sounder base 3379 is set with the Address
setting tool 3314. The sounder base has to
have one address and the detector plugged in
the base has to have another address.
3314 is also used to set the mode:

NORMAL mode:
3379 in all systems.

2330 mode: Cannot be used.

2312 mode: Cannot be used.
Miscellaneous
3379 is power supplied via the COM loop,
i.e. the number of sounder bases is
depending on the other units connected to
the same COM loop as well as the cable
type/length. See Planning Instructions for
the EBL system respectively.
3379 has replaced the Addressable sounder
base 3378.
Product applications
Used in the systems EBL128, EBL512 (SW
version > 2.2) and EBL512 G3 when a
sounder is required in the same room as a
detector (e.g. in a hotel room). The sounder
base is intended for indoor use and in dry
premises.
Shall be used for
