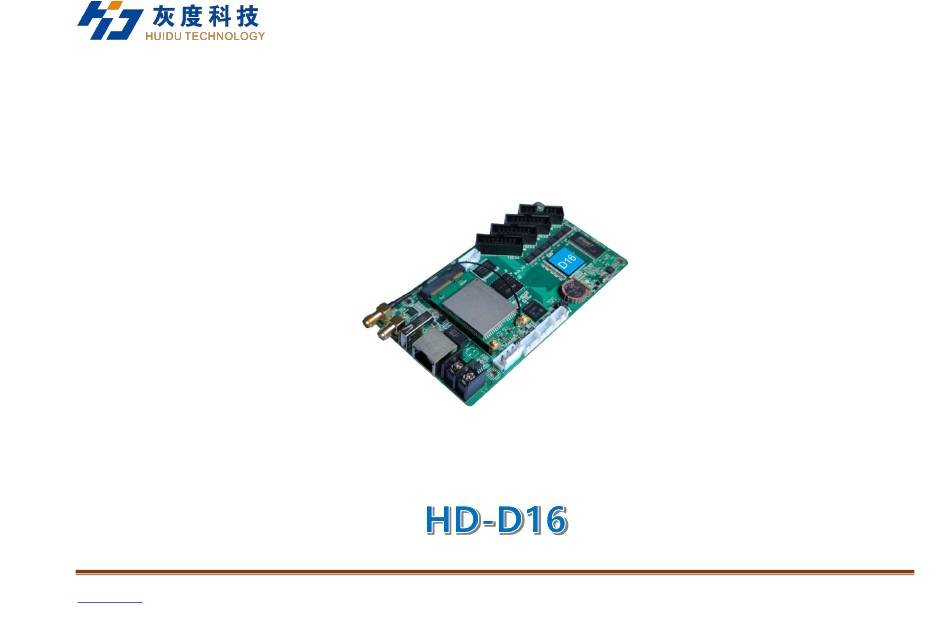

- Page 1 User Manual Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 2: Table Of Contents
CONTENT Chapter 1 Interface connection ....................... 1 1.1 HD-D16 Appearance and interface .................... 2 1.2 Hardware connection ........................ 4 Chapter 2 HDPlayer installation....................... 5 Chapter 3 HD-D16 Parameter settings ....................7 3.1 Connection ..........................7 3.2 Basic Setting ..........................8 3.2.1 Create new screen for D16 ..................... - Page 3 3.3.8 Device lock setting ......................27 3.3.9 Startup screen ......................28 Chapter 4 Async Program Editing and Publishing .................. 30 4.1 Publish programs by HDPlayer ....................30 4.2 Publish programs by U-disk(FAT or FAT 32) ................33 Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 4: Chapter 1 Interface Connection
Chapter 1 Interface connection Shenzhen Huidu Technology Company www.huidu.cn... -
Page 5: Hd-D16 Appearance And Interface
1.1 HD-D16 Appearance and interface Name Function Connect 5V power. Power terminal The computer network port , router or switch connected to the normal RJ45 network port working state is orange light is always on,green light flashes. USB port Connect to the USB device for update program. - Page 6 For connect external sensor，Such as environmental monitoring, multi-function Sensor port sensors, etc. Power port Foolproof 5V DC power interface, the same function as 1. Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 7: Hardware Connection
1.2 Hardware connection Shenzhen Huidu Technology Company www.huidu.cn... -
Page 8: Chapter 2 Hdplayer Installation
Please download the installation package of HDPlayer software from Huidu’s official website www.huidu.cn, and complete the installation according to the diagrams below: 1.Run the software package,then select language for installer. Click [OK] to go on. Shenzhen Huidu Technology Company www.huidu.cn... - Page 9 2.After selecting a language, an installation wizard like below will appear.Click [Next]. Choose components,default installation. Choose the installation location, click [Browse] to change the default target location,then click [Install] after completing; After the installation is complete,you are ready to use HDPlayer. Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 10: Chapter 3 Hd-D16 Parameter Settings
Chapter 3 HD-D16 Parameter settings 3.1 Connection Connect the D16 to the computer by net cable or WiFi(Default password:88888888). Shenzhen Huidu Technology Company www.huidu.cn... -
Page 11: Basic Setting
3.2 Basic Setting 3.2.1 Create new screen for D16 1.Run the HDPlayer software then it shows the D16 connected at the left-down corner. Shenzhen Huidu Technology Company www.huidu.cn... - Page 12 2.You need to create a new screen,then set the screen parameters.Click [OK] after you finish the setting. 3.After the previous steps,you can begin to edit the program. Shenzhen Huidu Technology Company www.huidu.cn...
- Page 13 Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 14: More Setting
Expand the size according to the region. Screen program layout tree area. Screen Preview area. Property setting area. 3.3 More setting 3.3.1 Device information You can view the running status of the device in the device information. Shenzhen Huidu Technology Company www.huidu.cn... - Page 15 Play mode: Support single program loop and order of play. Multi-screen Sync: Default setting is disable.If you want multiple screens to play synchronously, please enable. Shenzhen Huidu Technology Company www.huidu.cn...
- Page 16 Shenzhen Huidu Technology Company www.huidu.cn...
- Page 17 View the 3/4G network and sensor status. Key function:Screen testing or switch program Shenzhen Huidu Technology Company www.huidu.cn...
- Page 18 Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 19: Wifi Setting
3.3.2 WiFi setting Edit WiFi switch, mode, name and password, etc. Station mode enable D16 connect to the wireless network. Shenzhen Huidu Technology Company www.huidu.cn... -
Page 20: Volume Setting
3.3.3 Volume setting Fixed mode: set fixed volume According to the time period:Set the time frame. Shenzhen Huidu Technology Company www.huidu.cn... -
Page 21: Brightness Setting
3.3.4 Brightness setting Default mode: Set fixed brightness Custom mode: Set the time frame for brightness Shenzhen Huidu Technology Company www.huidu.cn... - Page 22 Automatic mode: D16 automatically change Brightness according to the sensor. Sensitivity Indicates the frequency of detection.[High] means every 5 seconds;[in] mean 10;[low] mean 15. You’d better set Brightness monitoring interval to 3400-7000. Shenzhen Huidu Technology Company www.huidu.cn...
- Page 23 Shenzhen Huidu Technology Company www.huidu.cn...
- Page 24 Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 25: Time Correction
3.3.5 Time correction Set the system time zone. D16 support summer time. Automatic synchronization:NTP mean time correct by network.Set GPS if installed the GPS module.Set RF if installed the RF device. Shenzhen Huidu Technology Company www.huidu.cn... - Page 26 Shenzhen Huidu Technology Company www.huidu.cn...
- Page 27 3.3.6 Switch machines setting Shenzhen Huidu Technology Company www.huidu.cn...
- Page 28 Set on/off time for D16. Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 29: Relay Setting
3.3.6 Relay setting D16 supports relay installation. 3.3.7 Network setting Shenzhen Huidu Technology Company www.huidu.cn... -
Page 30: Device Lock Setting
Default is automatic acquisition. You can set fixed IP for D16. 3.3.8 Device lock setting Shenzhen Huidu Technology Company www.huidu.cn... -
Page 31: Startup Screen
Set password to lock the device. After that People without passwords will not be able to make operational changes to the device. 3.3.9 Startup screen Shenzhen Huidu Technology Company www.huidu.cn... - Page 32 You can upload the startup image to D16. Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 33: Chapter 4 Async Program Editing And Publishing
Chapter 4 Async Program Editing and Publishing 4.1 Publish programs by HDPlayer 1. Create new program 2.Add content into Program Shenzhen Huidu Technology Company www.huidu.cn... - Page 34 3. Sending interface Shenzhen Huidu Technology Company www.huidu.cn...
- Page 35 Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 36: Publish Programs By U-Disk(Fat Or Fat 32)
4.2 Publish programs by U-disk(FAT or FAT 32) 1. Export the program to the U-disk in HDPlayer Shenzhen Huidu Technology Company www.huidu.cn... - Page 37 2. Publish the video and picture in the U-disk Put the video and picture in the root catalog of U-disk Shenzhen Huidu Technology Company www.huidu.cn...
