  • Page 1 User Manual Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 2: Table Of Contents

    CONTENT Chapter 1 Interface connection ........................3 Chapter 2 HDPlayer installation ........................10 Chapter 3 HD-A6L Parameter settings ......................12 3.1 Connection ............................12 3.2 Basic Setting ............................12 3.3 More setting ............................17 3.3.1 Device information ........................17 3.3.2 WiFi setting ..........................19 3.3.3 Volume setting ..........................
  • Page 3 3.3.6 Switch machines setting ....................... 27 3.3.7 Relay setting ..........................28 3.3.8 Network setting ..........................29 3.3.9 Device lock setting ........................30 3.3.10 Wireless Display ......................... 31 Chaper 4 Async Program Editing and Publishing ................... 31 Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 4: Chapter 1 Interface Connection

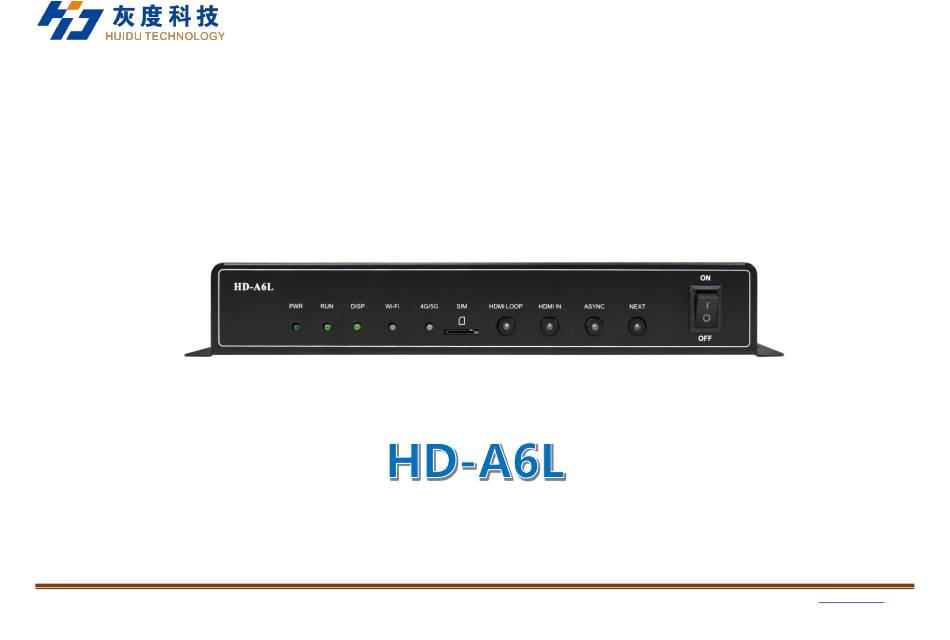

    Chapter 1 Interface connection HD-A6L Appearance and interface Front panel： Serial Name Description number Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 5 SIM is in arrears or cannot dial; the red light is blinking, the SIM cannot be detected; No light, no module detected SIM card slot Nano SIM card slot, providing 4G/5G networking for remote control (optional 4G/5G Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 6 HDMI LOOP：HDMI stitching mode HDMI IN：HDMI signal input, synchronous playback Function button ASYNC：Asynchronous mode switching NEXT：Switch program play Control the power of the player box, ON means power on and OFF means power off Switch Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 7 Rear panel: Serial Name Description number Connect Wi-Fi antenna to enhance wireless signal Wi-Fi antenna Sensor External temperature, humidity, brightness, wind speed, wind direction, noise, PM2.5, Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 8 HDMI HDMI LOOP：HDMI1.4 synchronous signal input or splicing input interface HDMI OUT：HDMI1.4 output interface USB：USB3.0 for updating programs, inserting programs or expanding capacity ：Used for debugging or upgrading firmware (default U disk function, factory configurable) Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 9 Gigabit output network port, cascaded with HD-R series receiving card Output network port Ground wire Ground wire connection port Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 10 1.2 Hardware connection Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 11: Chapter 2 Hdplayer Installation

    Please download the installation package of HDPlayer software from Huidu’s official website www.huidu.cn, and complete the installation according to the diagrams below: 1.Run the software package,then select language for installer. Click [OK] to go on. Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 12 2.After selecting a language, an installation wizard like below will appear.Click [Next]. Choose components,default installation. Choose the installation location, click [Browse] to change the default target location,then click [Install] after completing; After the installation is complete,you are ready to use HDPlayer. Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 13: Chapter 3 Hd-A6L Parameter Settings

    Chapter 3 HD-A6L Parameter settings 3.1 Connection Connect the A6L to the computer by CAT5/6 cable or WiFi(Default password:88888888). 3.2 Basic Setting 3.2.1 Create new screen for A6L 1.Run the HDPlayer software then it shows the A6L connected. Shenzhen Huidu Technology Company...
  • Page 14 Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 15 2.You need to create a new screen,then set the screen parameters.Click [OK] after you finish the setting. Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 16 3.After the previous steps,you can begin to edit the program. Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 17 3.2.2 Play mode setting A6L is dual-mode display player. You can set play mode you want. Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 18: More Setting

    3.3 More setting 3.3.1 Device information You can view the running status of the device in the device information. Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 19 Play mode: Support single program loop and order of play. Multi-screen Sync: Default setting is disable.If you want multiple screens to play synchronously, please enable. Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 20: Wifi Setting

    View the 3/4G network and sensor status. 3.3.2 WiFi setting Edit WiFi switch, mode, name and password, etc. Station mode enable A6L connect to the wireless network. Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 21: Volume Setting

    3.3.3 Volume setting Fixed mode: set fixed volume According to the time period:Set the time frame. Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 22: Brightness Setting

    3.3.4 Brightness setting Default mode: Set fixed brightness Custom mode: Set the time frame for brightness Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 23 Automatic mode: A6L automatically change Brightness according to the sensor. Sensitivity Indicates the frequency of detection.[High] means every 5 seconds;[in] mean 10;[low] mean 15. You’d better set Brightness monitoring interval to 3400-7000. Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 24 Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 25 Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 26: Time Correction

    3.3.5 Time correction Set the system time zone. A6L support summer time. Automatic synchronization:NTP mean time correct by network.Set GPS if installed the GPS module.Set RF if installed the RF device. Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 27 Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 28: Switch Machines Setting

    3.3.6 Switch machines setting Set on/off time for A6L. Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 29: Relay Setting

    3.3.7 Relay setting A6L supports relay installation. Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 30: Network Setting

    3.3.8 Network setting Default is automatic acquisition. You can set fixed IP for A6L. Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 31: Device Lock Setting

    3.3.9 Device lock setting Set password to lock the device. After that People without passwords will not be able to make operational changes to the device. Shenzhen Huidu Technology Company www.huidu.cn...

  • Page 32: Wireless Display

    3.3.10 Wireless Display A6L support DLAN,Miracast and AirPlay projection mode. Chaper 4 Async Program Editing and Publishing 4.1 Publish programs by HDPlayer 1. Create new program Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 33 2.Add content into Program Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 34 3. Sending interface Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 35 Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 36 4.2 Publish programs by U-disk(FAT or FAT 32) 1. Export the program to the U-disk in HDPlayer Shenzhen Huidu Technology Company www.huidu.cn...
  • Page 37 2. Publish the video and picture in the U-disk Put the video and picture in the root catalog of U-disk Shenzhen Huidu Technology Company www.huidu.cn...
