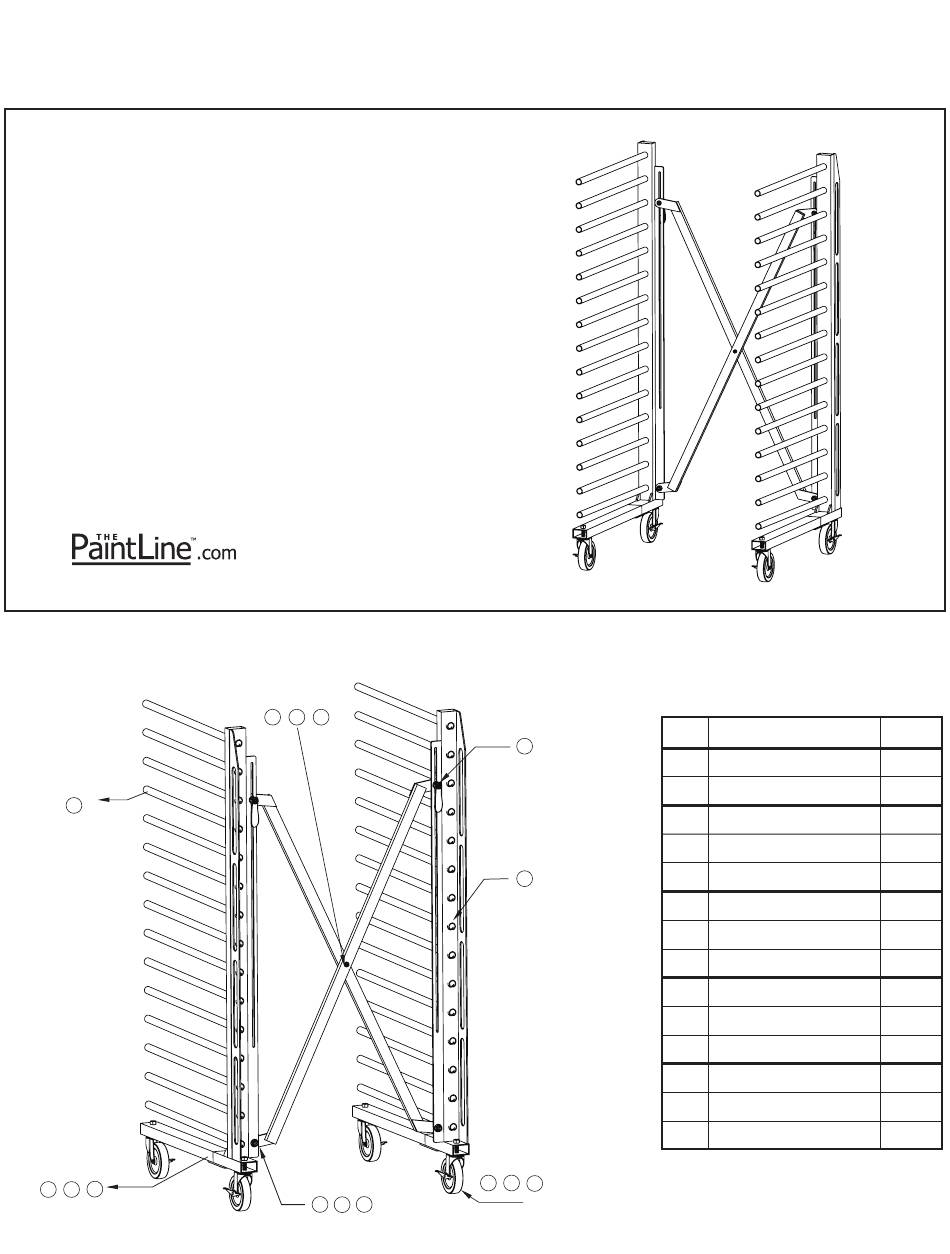

ASSEMBLY INSTRUCTIONS
P
D
ro
rying
Expandable Drying Rack
PDREX
1
Round tubes
3
4
5
Base Legs
(Base bolts)
R
ack
TM
Crossbar
hardware
9
10
11
13
14
15
Crossbar Hinge
12
Clamping levers
2
Main frames
Casters
6
7
8
(1/2"-13 Nuts)
Hardware List
NO.
PART NAME
Round tubes
1
2
Main frames
3
Base Legs
4
3/8-16x3/4" FL.Hex
5
Support Plate
6
Casters
7
1/2"-13 Nuts
8
Lock Washer
9
3/8-16 x 2" FL.Hex
10
3/8-16 Lock Nuts
11
Nylon Washer
12
Clamping levers
13
3/8"-16x1" FL.Hex
14
3/8"-16 Lock Nuts
QTY
30
2
2
8
2
4
4
4
1
1
3
2
2
2
Advertisement
Related Manuals for PaintLine ProDryingRack PDREX
Summary of Contents for PaintLine ProDryingRack PDREX
- Page 1 ASSEMBLY INSTRUCTIONS rying Expandable Drying Rack PDREX Crossbar Hardware List hardware PART NAME Round tubes Clamping levers Main frames Base Legs Round tubes 3/8-16x3/4” FL.Hex Support Plate Main frames Casters 1/2”-13 Nuts Lock Washer 3/8-16 x 2” FL.Hex 3/8-16 Lock Nuts Nylon Washer Clamping levers 3/8”-16x1”...
- Page 2 STEP 1 STEP 2 ASSEMBLY STEPS STEP 3 Place one scissor crossbar on the ground (as shown in Step 1 figure) Attach the other crossbar in the center using nylon washers between the tubes and supplied bolt. Carefully use Step 1 figure above as your guide for proper alignment.
