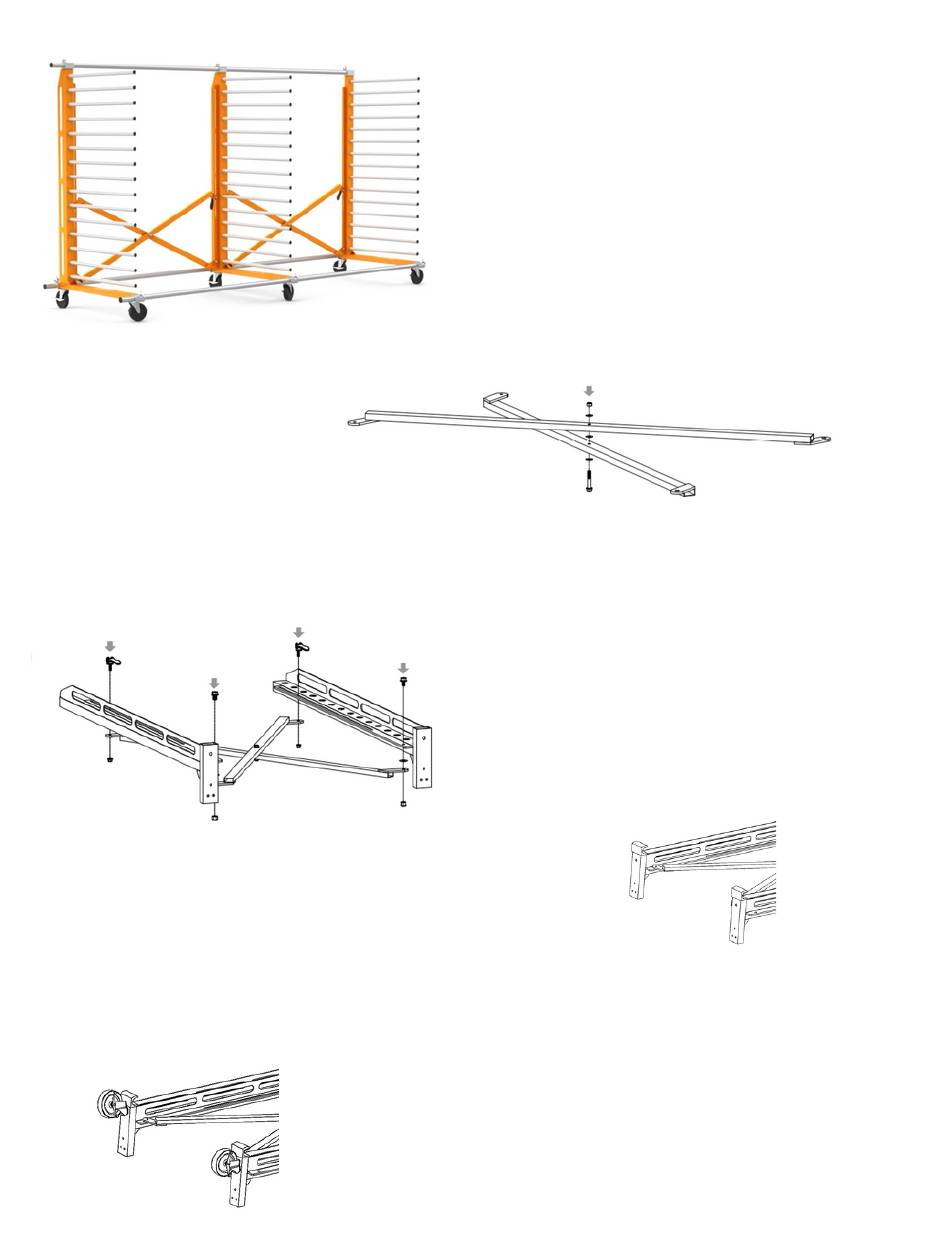

PDREX3 Assembly
Instructions
Step 1
OPEN THE PDREX.M BOX FIRST. Place one
scissor crossbar on the ground (as shown).
Attach the crossbar in the center using the
nylon washers between the tubes and
supplied bolts
Step 2
Place 1 of the PDREX.M (uprights) on the ground as
shown either the left or right of the PDREX. Attach the
scissor connectors
Step 3
Add the lower connectors to the back as shown.
Step 4
Add the casters and secure with 1/2-13 nuts
Advertisement
Related Manuals for PaintLine PDREX3
Summary of Contents for PaintLine PDREX3
- Page 1 PDREX3 Assembly Instructions Step 1 OPEN THE PDREX.M BOX FIRST. Place one scissor crossbar on the ground (as shown). Attach the crossbar in the center using the nylon washers between the tubes and supplied bolts Step 2 Place 1 of the PDREX.M (uprights) on the ground as shown either the left or right of the PDREX.
- Page 2 Step 5 Carefully flip the connected middle sections. Add lower connectors and casters. And support plates Step 6 Stand the middle section up and add the upper connectors. Step 7 Add 2 PDREX.T tube sections and secure in place with 1/4-20 thumb screws...
- Page 3 Step 8 Build outer third section, then secure in place using the tube connectors. Step 9 Add the second scissor connector. Step 10 Add 1" Round Shelves.
