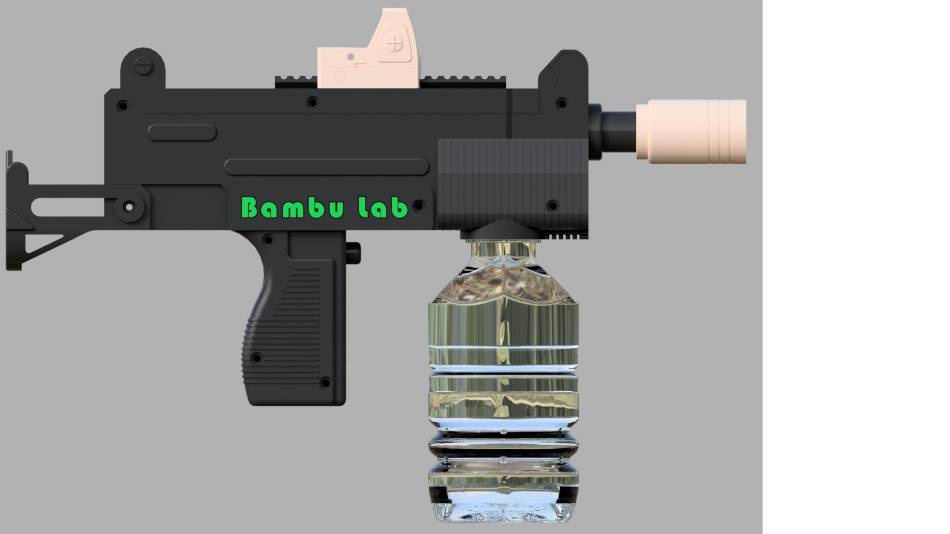

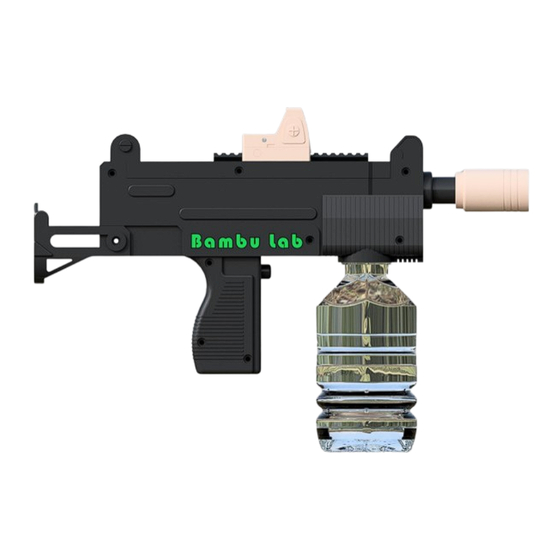

- Page 1 Electric Water Gun Installation steps(安装步 骤)
- Page 2 20*4 20*4 Water storage tank(储水瓶)
- Page 3 Detachable 14500 battery compartment （可拆卸14500电池仓）...
- Page 4 Installation steps(安装步骤) Step 1 Installation of motor-driven （电动波箱安装）： Insert motor-driven the motor-driven into it （电动波箱） according to the position shown in the diagram（将电 动波箱按照图示位置嵌入其 中）...
- Page 5 Installation steps(安装步骤) 14500 battery box（14500 电池盒） Waterproof Step 2 switch（防水 Installation of battery box 开关） and waterproof switch（电 池盒及防水开关安装）： Install the battery box and waterproof switch in the corresponding position（将 电池盒及防水开关安装至相 应位置）...
- Page 6 Installation steps(安装步骤) Step 2’ motor-driven （电动波箱） Refer to the actual internal structure diagram（参见内部 构造实图） 14500 battery box（14500 电池盒） Firing device Water pipes （击发器） Waterproof （水管） switch（防水 开关）...
- Page 7 Installation steps(安装步骤) Step 3 Assemble（组装）：Merge the other half and assemble the corresponding screws according to the diagram（将另 一半合并，并按照图示装配相应的螺丝）...
- Page 8 Installation steps(安装步骤) Step 4 Assemble（组装）Install the handle and assemble the corresponding screws（安 装托手，装配相应的螺丝）...
- Page 9 Installation of gun barrel and silencer(枪管及 消音器安装) Installation steps(安装步骤) Step 5 Assemble（组装）：The barrel, silencer, and main body are connected through 3D printed threads （枪管，消音器及主 体是通过3D打印的螺纹相连接）...
- Page 10 Installation steps(安装步骤) Step 6 Assemble（组装）： Glue the sight up and down and push it into the main body （瞄准镜上下胶接，并推入主体） Push in the main body in this direction （沿此方向推入主体） GLUE( 胶接)
- Page 11 Installation steps(安装步骤) Step 7 Assemble（组装）： Assembly of water storage tank（组装储水瓶）， Please install the 14500 battery（请 安装14500电池）， The assembly is now complete （至此组装完成）， Have fun playing（愉快的玩耍 吧）。...
