Summary of Contents for aegex Aegex100M

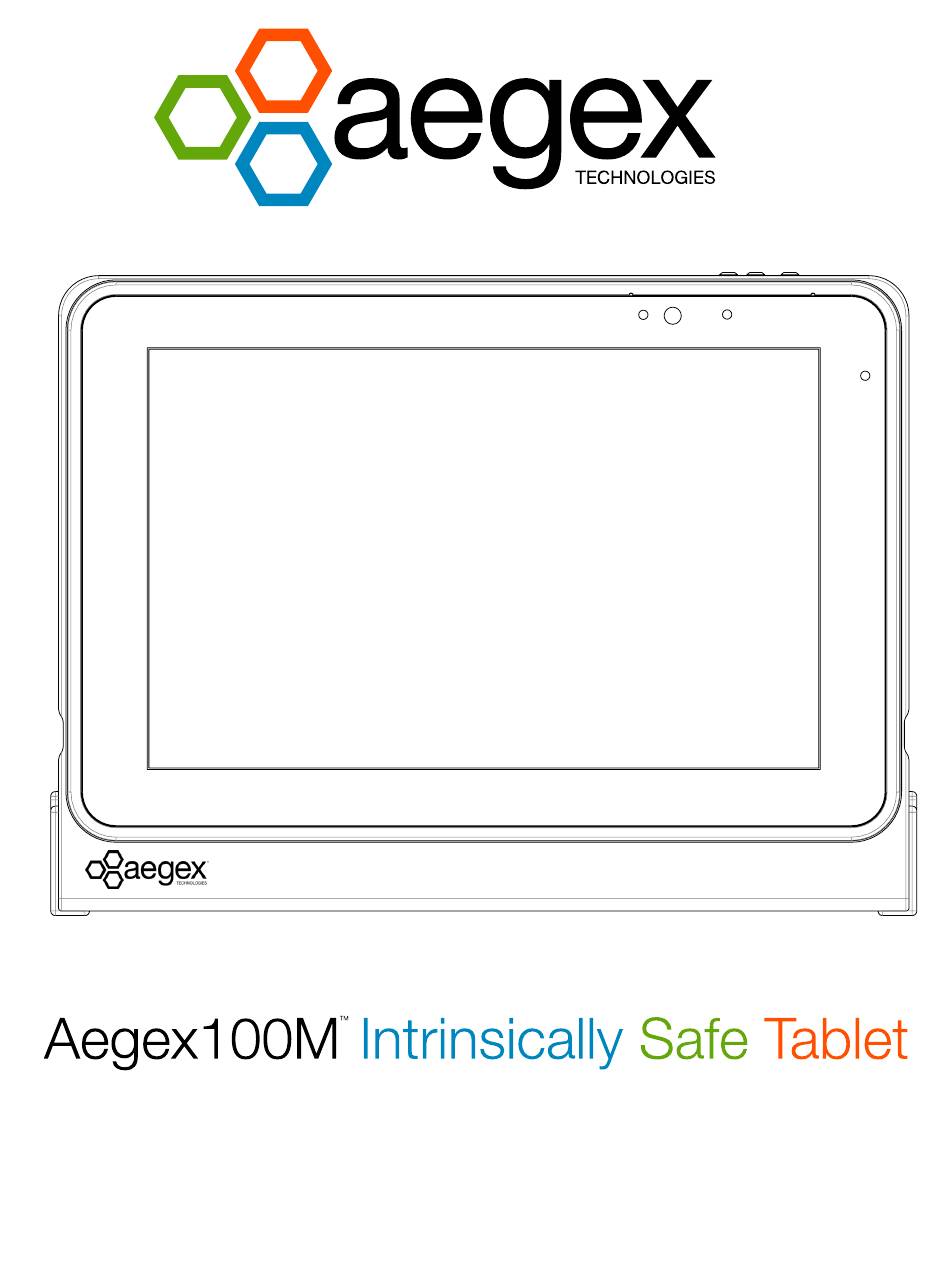

  • Page 1 ® U S E R G U I D E www.aegex.com...
  • Page 2: Table Of Contents

    CONTENTS WARNINGS FCC, IC, and CE NOTICES IMPORTANT PRODUCT INFORMATION AND SAFETY NOTICES PRODUCT WARRANTY ENERGY SAVING FRONT OF TABLET BACK OF TABLET SD & SIM PORT VESA MOUNT SHOULDER STRAP/ACCESSORY MOUNT APPENDIX TABLET POWER SUPPLY BATTERY AND BATTERY SAFETY RECYLCE P a g e Doc#: ADPU-017-02-01...
  • Page 3: Warnings

    XX, WHERE "XX" ARE PLACEHOLDERS OF THE PART NUMBER FOR FUTURE VERSIONS, FOR CHANGES IN THE PRODUCT THAT DO NOT IMPACT THE SAFETY OR CERTIFICATION OF THE PRODUCT. BATTERY PACK CAN ONLY BE USED AND CHARGED WHILE IT IS ON THE TABLET AEGEX100M. DO NOT ATTEMPT TO CHARGE THE BATTERY IN ANY •...
  • Page 4: Fcc, Ic, And Ce Notices

    3015 CE Statement Aegex Technologies LLC, Flatiron Building, 84 Peachtree Street NW Atlanta, GA 30303 USA hereby declare, under its sole responsibility that the product Aegex100M Intrinsically Safe Tablet is in conformity with the relevant European Union harmonization legislation: •...
  • Page 5: Important Product Information And Safety Notices

    If the glass cracks or breaks, do not attempt to remove the broken glass or touch the glass parts as this can lead to injury. If the display cracks or breaks, stop using the device and contact Aegex Technologies at www.aegex.com/support...
  • Page 6: Front Of Tablet

    In the box Inventory Front of Tablet P a g e Doc#: ADPU-017-02-01...
  • Page 7 Ambient Light Sensor Front-facing Camera • 2 megapixel camera and LED indicator that camera is in use Microphone Volume Control On/Off and sleep mode for tablet • 1 push – Wake up Tablet • 2 megapixel camera and LED indicator that camera is in use 1 push when on –...
  • Page 8: Back Of Tablet

    In the box Inventory Back of Tablet Nano SIM P a g e Doc#: ADPU-017-02-01...
  • Page 9 Nano SIM Card Port Use ONLY Nano SIM Nano SIM Note: Not all devices have LTE communications MicroSD Card Port Up to 2TB expanded memory Camera Flash Rear-Facing Camera 8 megapixel camera NFC Antenna Charging Connector Docking Connector USB Connector P a g e Doc#: ADPU-017-02-01...
  • Page 10: Sd & Sim Port

    VESA Mount The Aegex100M has a standard VESA mount configuration FDMI MIS-C 75mm x 35mm. Use only M4 x 8mm screws. Other screws may damage the device and may impact its safety and certifications. VESA mounting holes are identified below.
  • Page 11: Shoulder Strap/Accessory Mount

    Shoulder Strap/ Accessory Mount To attach the shoulder strap, remove the plastic caps over the screw mounting holes you wish to use. Removing these caps does not impact certification or the use of the product in hazardous areas. Attach the shoulder strap or other approved accessories using the M5 screws provided in the locations shown below.
  • Page 12: Appendix

    Note: The Aegex Protection Adapter can connect to the 5-pin magnetic connector on the tablet in either direction. the Aegex100M tablet. Do not attempt to use any other method of connection with the charging pin pad. The charger has the following label on Charging adapter can be connected in either direction.
  • Page 13 Return your used electronic units to dedicated collection points. Please note that your tablet has a Lithium-ion battery. It must be recycled separately. These batteries and/or your Aegex100M, should NOT go into household garbage or recycling bins. Follow your local jurisdiction’s rules and regulations regarding proper Lithium-ion battery disposal.
  • Page 14 Hungarian Branch Office H-7632 Pécs, Tildy Zoltán u. 27/1 +1 404 242 4000 contact@aegex.com © Copyright 2024 Aegex Technologies, LLC. All Rights Reserved. Aegex, Aegex Technologies and Aegex Technologies, LLC are registered trademarks of Aegex Technologies, LLC with the U.S. Patent and Trademark Office. All Aegex Technologies products, including components or features thereof and/or associated software, are protected by copyright, international treaties and patents and patents pending. Some of these rights are reflected in registrations, pending applications, common law rights, or by act of law, regulations, and treaties. All other brands, product names, company names, trademarks and service marks are the property of their respective owners.
