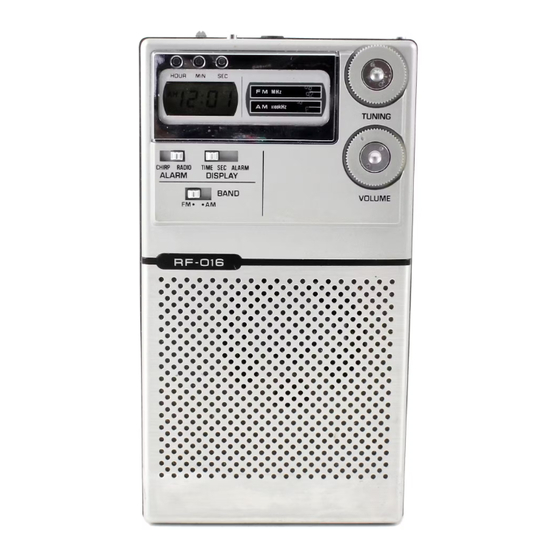

Panasonic RF-016 Service Manual

Service Ma
FM-AM PORTABLE RADIO
WITH QUARTZ CLOCK
Mi TO REMOVE CABINET COVER
Roe we hs
8.
Remove the battery (Radio) cover.
Remove the batteries. |
Remove 1 screw for the cabinet cover, as shown in fig. 1.
Remove the catch in the direction of arrow, as shown in fig. 2.
Remove the catch in the direction of arrows, as shown in fig. 3.
Remove the catch in the direction of arrow@) and remove the
cabinet cover in the direction of arrow@, as shown in fig. 4.
To remove the cabinet cover completely unsolder lead from
telescopic antenna.
To reassemble, reverse the above procedure.
Mi TO REMOVE PC BOARD
Al
Zn
ae
Remove the cabinet cover.
Remove the tuning and volume controls knobs, by removing 2
screws (nos. 1 & 2) by rotating them counterclockwise. In the
absence of a special tool for this purpose, you may use a pair
of tweezers, or two small brads appropriately spaced in a
short length of wood dowel, see fig. 5.
Remove 2 screws (nos. 1 & 2) as shown in fig. 6.
Push the catch in the direction of arrow, as shown in fig. 6.
Remove the battery terminal.
To reassemble, reverse the above procedure.
Wi TO REMOVE VOLUME CONTROL
tT: Remove the PC board. (Refer to PC board removal
instruc-
tion.) !
Remove solder from control, at 5 points, by using solder suck-
er. : |
Remove the control.
To reassemble, reverse the above Breceaure and note the
following.
Note: Be sure that the volume control terminals are flush with the
circuit board when soldering them into place. If not, the
control knob may not Clear the front cover properly.
National Panasonic
Mi SPECIFICATIONS
Frequency Range:
Intermediate Frequency:
Sensitivity:
Power Output:
Batteries:
Speaker:
Dimensions:
Weight:
Impedance:
ORDER NO. RD7802-1560
Radio
RF-016
FM. 87. 5~108 MHz
MW 520~1610 KHz (577~186m)
FM 10.7 MHz
AM 455 kHz
FM. 2xzV for 50mW Output
AM 1004V/m for 50mW Output
120mW Maximum .
Radio: 3V (two "AAA" Size Batteries)
(National UM-4 or equivalent)
Clock: 1.5V (One Silver Oxide Battery)
4.5 cm (14"") PM Dynamic Speaker
75(Wide) x 138(High) x 17.3(Deep)mm
(23° X54" X 6")
180g. (6. 4 oz. ) with batteries
Speaker sneer won, paras 82
Earphone Jack. .3. cccee ee cesis. OO
Specifications are subject to change \ without notice for further
improvement.
Screw (CAio)
Figa:J
Fig. 2
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka, Japan
