- Page 1 DC120 Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction General Warranty Symbols used in this manual Device description Application Accessories Safety device Safety Safety instructions Mandatory checks before initial use Operation / installation manual Open the door Mounting on foundation Insert cable and attach strain relief Maintenance Transportation and storage Resolving problems... -
Page 3: Introduction
1. INTRODUCTION Thank you for choosing an Ecotap® DC charger. This manual describes the DC charger. This manual contains important information for the proper and safe installation and operation of the DC charger. The charging station is designed for vehicles fitted with a mode-4 charging system in line with IEC 61851-1 (edition 2.0) using a connector jack system as per VDE-AR-E 2623-2-2 / IEC 62196-2. -
Page 4: Device Description

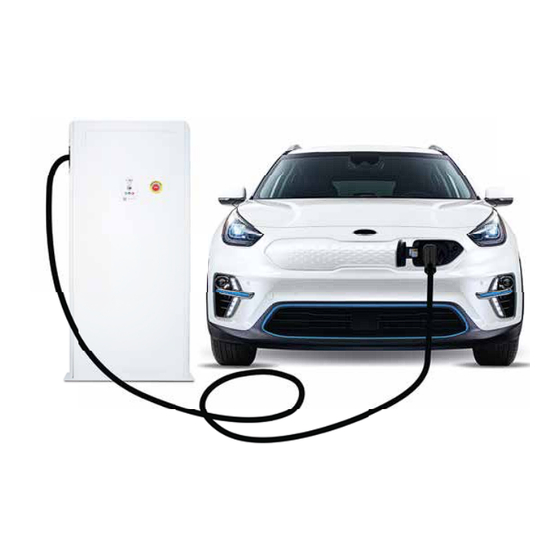

Disconnect the electrical installation from its power supply Reading this manual is mandatory 3. DEVICE DESCRIPTION Application The charging station is specially designed for intensive use. Locations not suitable for placing the charging station: - Small enclosed spaces < 4m3 - The preferred position of the charging station is not directly in full sun. -
Page 5: Mandatory Checks Before Initial Use
5. MANDATORY CHECKS BEFORE INITIAL USE The following checks are mandatory before installing / commissioning the charging station. NEVER use the charging station if the 1 or more checks show that the power supply or stability of the charging station is inadequate. Always perform the checks below before applying voltage to the charging station. -
Page 6: Insert Cable And Attach Strain Relief
6.3 Inserting cable and securing with strain relief Secure the power cable in the foundation using the cable gland. Connect the conductors of the cable to the existing main switch terminals (max. 15 22Nm bolt m8 oder 30 44Nm bolt n10). -
Page 7: Maintenance
7. MAINTENANCE Always de-energise the charging station and read the operating instructions before handling maintenance or faults.Repair or replacement of components should only be done with the products approved by the supplier. Repairs and replacements must always be carried out by an authorised / specialist.Maintenance must always comply and be carried out in accordance with NEN3140 and NEN 50110 low voltage Euro standard. -
Page 8: Technical Specifications
11. TECHNICAL SPECIFICATIONS GENERAL CHARACTERISTICS Reference number 80120102 Dimension H x W x D (mm) 1736 mm x 825 mm x 419 mm Casing material Steel 2,2 mm Standard colour Body: Ral 9016 / Cover: Ral 9016 Steel treatment Anti-corrosion (KTL) and powder coating... - Page 9 30 - 44 N.m for M10 Tightening Torque 22 - 36 N.m for M8 Type of load Mode 4 charging terminal Vehicle connection Mode 4 attache cable connector Use of extension and adapter prohibited. 3,5m straight AC meter Not included DC meter Not included Back office protocol...
-
Page 10: Contact Details Supplier
12. CONTACT DETAILS SUPPLIER Ecotap® B.V. Kruisbroeksestraat 23 5281RV Boxtel – The Netherlands Tel.: 0031 (0) 411-210210 E-mail: info@ecotap.nl 13. EU CONFORMITY STATEMENT (Directive 2014/35/EU, Annex II page 96/369, EMC 2014/30/EU) Ecotap® B.V. Kruisbroeksestraat 23, 5281RV Boxtel, the Netherlands, hereby states that the following charging station meets the requirements of the listed directives and standards. - Page 11 Ecotap B.V. Kruisbroeksestraat 23 5281 RV Boxtel The Netherlands +31(0) 411 210 210 info@ecotap.nl www.ecotap.nl...
