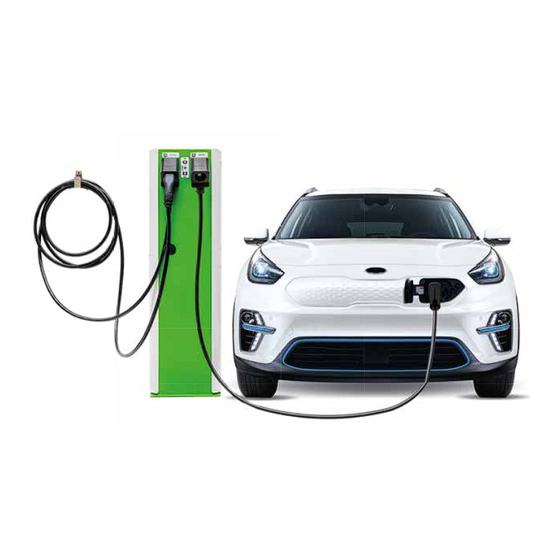

- Page 1 Duo Wide 2 x 44kW Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction General Warranty Symbols used in this manual and on the system Device description Accessories Safety features Safety Safety regulations Mandatory checks before initial use User / installation manual Mounting the casing on the foundation Opening and closing the charging station Mounting casing pipe Cable entry and securing with strain relief Connecting power cable to terminals... -
Page 3: Introduction
1. INTRODUCTION Thank you for choosing for an Ecotap® charging station. This manual is regarding the charge point DUO Wide 2 x 44kW. This manual contains important information for properly and safely installing and using the charging station. This charging station is designed for vehicles that are equipped with a mode 3 charging system that complies with IEC 61815- 1 (version 2.0) and a plug system that complies with VDE-AR-E 2623-2-2. -
Page 4: Device Description
Reading this manual is mandatory 3. DEVICE DESCRIPTION 3.1 Use This charging station is especially designed for public areas. The station can be installed in various environments: in paved areas, in open soil/sand, or in asphalt surfaces. The following environments, however, are not suitable: - All grounds that can flood - Loading quays - Slope at an angle of more than 4%... -
Page 5: Mandatory Checks Before Initial Use
Always check any measuring instruments you will be using to disconnect the installation from its power supply before you use them, checking them several times to make sure they are working properly. 5. MANDATORY CHECKS BEFORE INITIAL USE The following checks are mandatory before the charging station goes live. NEVER use the charging station if one or more of the checks indicate that the power supply or stability of the charging station does not suffice. - Page 6 T 1.0 T 1.1 350,5 16,5(4X) Buizen in g a ten 197,5 p ositioneren SECTION A-A SCALE 1 : 3 www.ecotap.nl 01-05-24...
- Page 7 T 1.2 www.ecotap.nl 01-05-24...
- Page 8 T 1.3 www.ecotap.nl 01-05-24...
-
Page 9: Opening And Closing The Charging Station
6.2 Opening and closing the charging station Always de-energise the charging column and read the operating instructions before handling maintenance or malfunctions. The lock that locks the entire Duo Wide charging column is situated at the back of the charging point, at the bottom of the door. -
Page 10: Connecting The Grounding Electrode/Conductor
6.6 Connecting the grounding electrode/grounding conductor Connect the earth wire of the connection cable to the main earth bar (HAR). Also connect the earth wire, which is connected to the earth connector, to the main earth bar (HAR) terminal, positioned as in Drawing 1.3. -
Page 11: Operation And Control Of Charging Station
10. OPERATION AND CONTROL OF CHARGING COLUMN The charging column can be operated with a charging card. This charging station is operated via a charging pass. The charging pass first needs to be registered in the Open Charge Point Protocol (OCPP). This necessary registration can be completed by phone by calling Ecotap®... - Page 12 Integrated protection system on charging station Main switch 125A Integrated protection system per charge point MCB 40A curve C RCD 40A 30mA Type B Conditional short-circuit 6000A IEC/EN 60898-1 10kA IEC/EN 60947-2 Allowable thermal stress in Short Circuit 16 000 A²s Connection to the mains Phase/Neutral, rigid cable, 2.5 to 35 mm², screw terminals H07 V R/U Earth, rigid cable, 2.5 to 35mm², screw terminals...
-
Page 13: Contact Details Supplier
Ecotap® B.V. reserves the right to change any of the above technical specifications without prior notice as the result of the ongoing innovative development of the machine. Moreover, the technical specifications may differ from country to country. 12. CONTACT DETAILS SUPPLIER Ecotap®... -
Page 14: Eg Conformity Statement
13. EC DECLARATION OF CONFORMITY EC Declaration of Conformity for machines (Directive 2014/35/EU, Annex II page 96/369) Ecotap® B.V. Industrieweg 4 5281RW Boxtel, The Netherlands, hereby declares that the charging stations stated below comply with the Machinery Directive and other regulations and standards mentioned. Name: Ecotap®... - Page 15 Ecotap B.V. Kruisbroeksestraat 23 5281 RV Boxtel The Netherlands +31(0) 411 210 210 info@ecotap.nl www.ecotap.nl...
