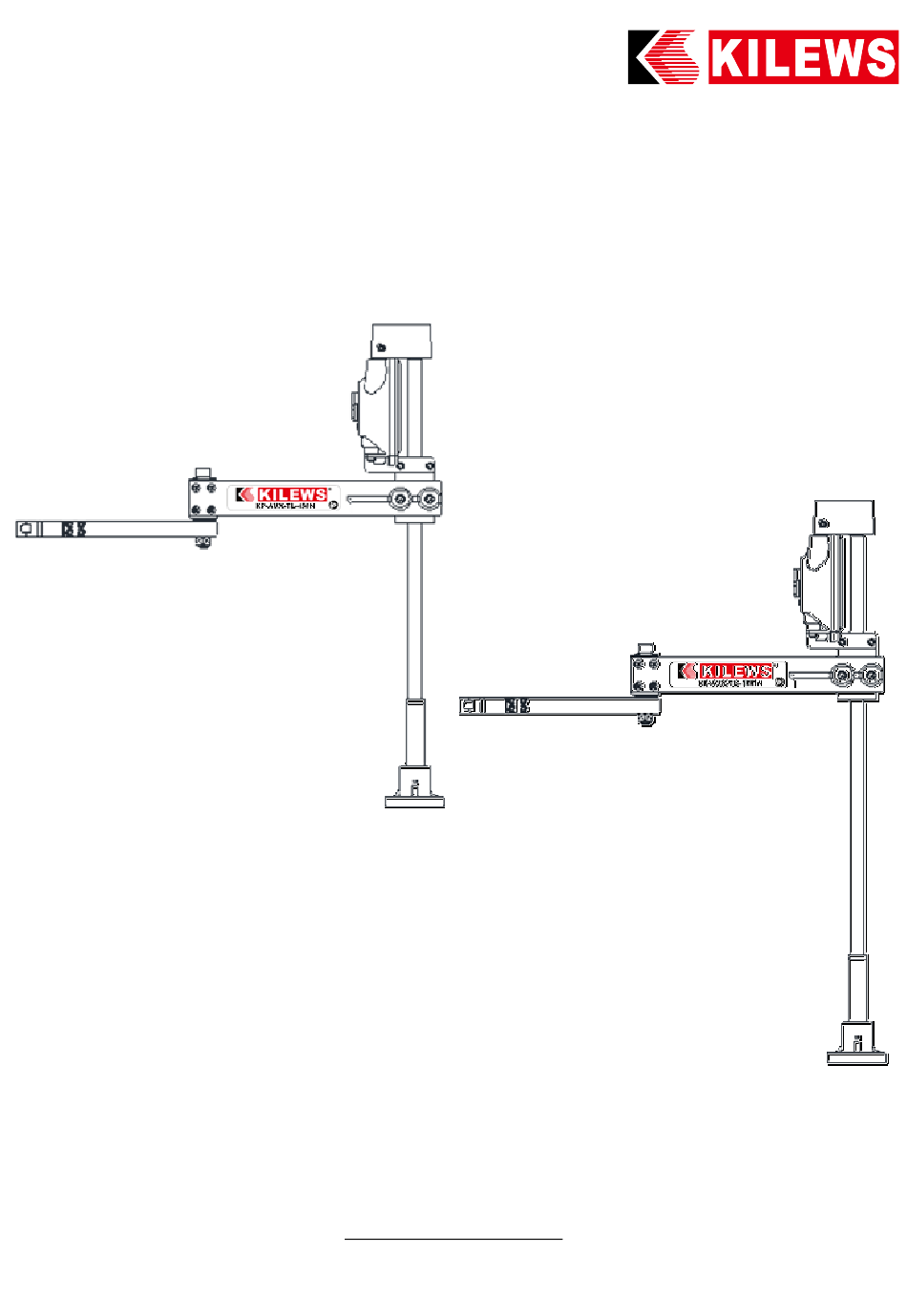

- Page 1 Auxiliary Arm Manual Axial rotation KP-AUX-TL-450N KP-AUX-TL-700N KILEWS INDUSTRIAL CO., LTD. https://www.kilews.com.tw Y2F220B-1-003...
-
Page 2: Table Of Contents
Table of contents Introduction ･･･････････････････････････････････ Feature ･･･････････････････････････････････････ Items ･････････････････････････････････････････ III. Precautions･････････････････････････････････････ ･･････････････････････････････ 1. Sign definitions ････････････････････････････ 2. Safety notifications Description ････････････････････････････････････ 1. Assembly ･･･････････････････････････････････ 2. Dimension ･･･････････････････････････････････････ Extension arm parameter ･･････････････････････ Installation ････････････････････････････････････ ･･････････････････････････････････ 10 1. Fitting tool ･････････････････････････････ 2. Spring adjustment VII. -
Page 3: Introduction
I. Introduction In order to prevent injuries, an auxiliary torque arm has been added to reduce torsion and weight of the screwdriver. Each auxiliary arm corresponds to ergonomics for additional safety measures. II. Feature A total 360° rotation of main pole plus 325° swing ability on axial arm allows the screwdriver to reach different devices at ease. -
Page 4: Items
Item No. Part No Objects Qty. Diagram KP20007-7N Base plate Main pole set. (Linear bearing set KP20032L-2 included) KP-AUX-TL-450N Main pole set. (Linear bearing set KP20032L-3 included) KP-AUX-TL-700N Spring balancer set I. KL-T5000B-1 KL-T5000(AUX-TL-450N) Spring balancer set I. KL-T7000B-1 KL-T7000(AUX-TL-700N) Axial arm set I. -
Page 5: Precautions
IV. Precautions For use of this product properly, avoid jeopardizing personal and property safety of the lives of others, to prevent the occurrence of danger and be sure to read the instructions carefully. <Please be sure to follow instruction> 1. Sign definitions 【PROHIBITION】Attempting to perform without notice may cause body injury or damage to the auxiliary arm. -
Page 6: Description
Description 1. Assembly - Arm (A) Take out 4 M6 * 25 (#15) screws from tool kits (01) and use them to tight pole base on your working table. See figure 1 (B) Insert supporting pole end (02) way down to the table through pole base (01). (C) Use set screw x 2 (#9) to tight supporting pole. - Page 7 P Place an extension arm (04) and slide (#17) into notch of bearing housing (#5).(label faces outside)use tool kits (05)，then tight two M8*35L hex screws (TL-700N is M10 * 40) along with washers (please really tighten) See figure 3 (J) After fixing, and then use 6 mm hex wrench (#41) from tool kits (05) to adjust loading value to proper position.
-
Page 8: Dimension
2. Dimension 2-1. Model：KP-AUX-TL-450N Operating Screwdriver’s Max. Torque Operating area Weight (kg) Place of use Operating Humidity Temperature weight (kg) (Kgf-cm) (mm) －5℃~ 60℃ 20％~ 90％ Approx. Indoor 0.8-2.8 (NO freezing) (NO condensation) - Page 9 2-2. Model：KP-AUX-TL-700N Operating Screwdriver’s Max. Torque Operating area Weight (kg) Place of use Operating Humidity Temperature weight (kg) (Kgf-cm) (mm) Approx. －5℃~ 60℃ 20％~ 90％ Indoor 1.4-3.4 (NO freezing) (NO condensation)
-
Page 10: Extension Arm Parameter
3. Extension arm parameter TL-450N TL-700N Item Name/ Status KL-T5000 KL-T7000 Spiral spring balancer 0.8~2.8 Weight capacity (kg) 1.4~3.4 height Dimension 583 / 581 826 / 824 width Distance highest between clamp and lowest table Track horizontal length vertical (max.) Extendable distance Working radius Working... -
Page 11: Installation
VI. Tool installation guide 1. Fitting tool (1) Before clamp a tool, make sure auxiliary arm is seated at the lowest position, and spring has released it tension. (2) Follow the instructions to clamp a screwdriver and tight with M6*50 screws. The available dimension of fixture for screwdriver is from ψ25mm to ψ45mm. -
Page 12: Spring Adjustment
2. Spring adjustment Be careful and follow the instruction when make lifting adjustment. Use your right hand (suggestion) to hold 6 mm hex wrench and insert it into hexagon hold of quarter spin button way down to the end. Turning wrench to drive quarter button on clockwise direction to get a higher tension on wire rope.
