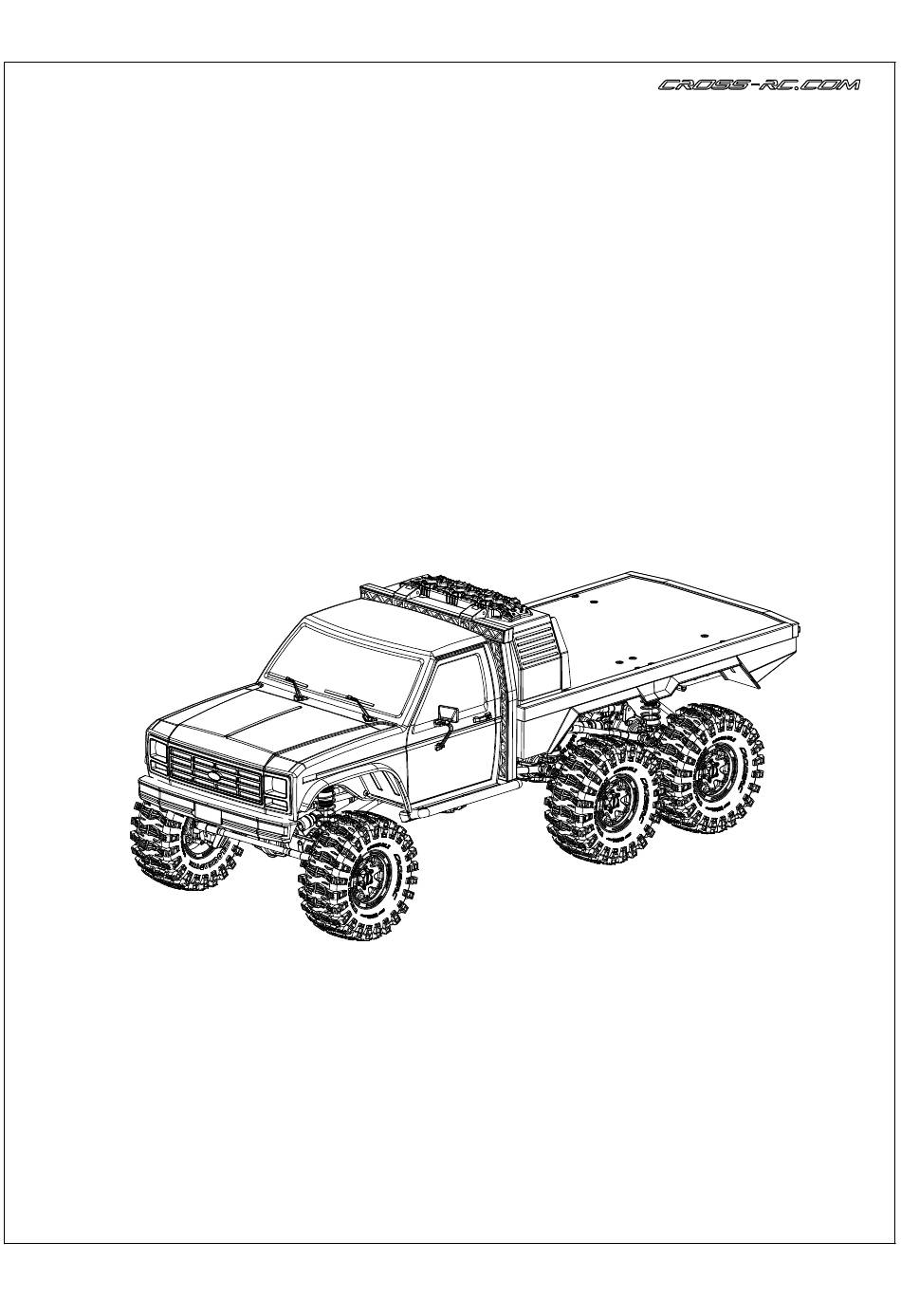

  • Page 1 EMO XL...
  • Page 2 To prevent serious personal injury and/or property CAUTION damage,operate all remotely controlled models in a responsible manner as outlined herein. Safety Precautions 1.1 This radio-controlled model is not a toy, it is designed for persons 14 years of age or older. 1.2 Do not operate your vehicle on unsafe terrain;...
  • Page 3 EMOXL 45123 226403 15012 11315 72007 41747 15012 15012 72007 36206 ∅5 x ∅ 8x0.3 72007 36207 11315 15014 M2.5x6 15014 15014 42234 15014 15012 42203 15014 13001 44212 42236 13001 33903 42236 42235 ∅ 5.1x ∅ 7.5x2.5 41307 42203 11207 72007 15012 ∅...
  • Page 4 EMOXL 11217 11217 M2.5x10 72007 ∅5 x ∅ 8x0.3 41750 15012 41749 15012 72007 226405 72007 15012 11217 44213 226501 74016 44214 12304 11205 72007 72007 41834 ∅5 x ∅ 8x0.3 12304 11205 M3x6 Limited slip adjust (1) Tighten to the right. (2) "0.5"."0.25"or"0.15"...
  • Page 5 EMOXL 11401 M3x4 14102 Ø3xØ7x0.5 41799 44297 11107 14102 M3x10 11401 11107 Tips: Tighten the screws with one sheet of paper inserted between both gears. Final reduction ratio Motor gear Fast 22.1 20.8 19.6 18.6 17.8 Slow 45.4 48.3 42.9 40.6 38.9 EMOXL...
  • Page 6 EMOXL Tips: Test the gear mesh by connecting the ESC to the motor/gearbox assembly. If the gearbox is not operating smoothly or is creating excess noise, check the gear mesh prior to proceeding to the next step. ON/OFF Switch Battery (Not included) EMOXL 95094...
  • Page 7 EMOXL 11207 11207 M3x10 234303 11413 95094 M4x13.5 11413 11413 95094 11413 95094...
  • Page 8 EMOXL 11207 M3x10 11208 M3x12 11210 M3x16...
  • Page 9 EMOXL 11206 11206 M3x8 42209 233606 227909 11206 42209 233605 EMOXL 227910 11206 11206 M3x8 41819 11206 11227 91175 12206 11227 M2.5x8 12206 41819 11206...
  • Page 10 EMOXL 11102 M2x6 233608 11306 233610 M3x10 11102 233607 11313 234504 M3x20 233609 11102 234503 11306 11313 11313 11306...
  • Page 11 EMOXL 13003 13003 44220 ∅ 2.5x ∅ 6x0.4 215401 Ø7xØ2 17037 44219 14115 44217 14115 Ø3xØ7x0.1 91128 91129 Ø7xØ3xØ2 17037 226901 50021 44218 Ø8xØ6xØ1 11102 17001 44221 14109 11133 17001 M2x12 11102 M2x6 Ø4xØ2x0.5 14109 41753 50021 41841 226902 11133 41753 Small...
  • Page 12 EMOXL 15016 33907 75026 226711 11316 M2.5x10 33906 11227 M2.5x8 15015 33906 11227 42223 33907 36202 42243 15015 ∅ 15x ∅ 21x4 36201 11316 15016 ∅ 12x ∅ 18x4 EMOXL 226601 15012 75026 Ø12xØ15x0.2 226710 15012 Ø5xØ10x4 15012 13002 11125 226710 72007 Ø3.8xØ9.2x0.6...
  • Page 13 EMOXL 95091 11412 41259 M3x3 226704 15018 11125 41259 36203 M2.5x10 13002 Ø3.8xØ9.2x0.6 13002 41259 15012 Ø2x7.5 42237 41209 36204 Ø2x10 15012 11125 15012 41209 11412 226709 Ø5xØ10x4 44091 15018 Ø8xØ12x3.5 EMOXL 95092 41259 11412 M3x3 226703 15018 11125 36203 41259 M2.5x10 13002...
  • Page 14 EMOXL 42208 42208 M3x10 42208 42208 41838 36205 42208 Align Insert EMOXL 44215 11401 11401 226602 M3x4 75023 Ø2x14 94086 94084 75023 11401 11120 M2.5x20 Align Insert 11120...
  • Page 15 EMOXL 15012 226603 15012 Ø5xØ10x4 13002 226710 Ø3.8xØ9.2x0.6 72007 15012 Ø5xØ8x0.3 11125 11125 72007 M2.5x10 226710 13002 11125 EMOXL 11316 226707 11316 M2.5x10 226708 11316...
  • Page 16 EMOXL 226706 11412 42242 M3x3 41259 36203 15012 15012 Ø5xØ10x4 13002 11125 M2.5x10 15012 13002 41259 42237 41209 36204 Ø3.8xØ9.2x0.6 15012 11412 41259 11125 44091 226709 Ø2x7.5 41209 Ø2x10 EMOXL 226705 11412 M3x3 42241 41259 36203 15012 15012 Ø5xØ10x4 11125 13002 M2.5x10 15012...
  • Page 17 EMOXL 11125 M2.5x10 11125 36205 41838 11125 EMOXL 44215 11401 226602 00000 00000 11401 75023 Align Insert 11401 M3x4 75023 Ø2x14 11120 M2.5x20 11120...
  • Page 18 EMOXL 15012 234701 15012 Ø5xØ10x4 13002 226710 Ø3.8xØ9.2x0.6 72007 15012 Ø5xØ8x0.3 11125 11125 72007 M2.5x10 226710 13002 11125 EMOXL 11316 226708 11316 M2.5x10 226707 11316...
  • Page 19 EMOXL 11412 226705 M3x3 42242 41259 15012 36203 Ø5xØ10x4 15012 11125 M2.5x10 13002 13002 15012 Ø3.8xØ9.2x0.6 41259 42237 41259 41209 36204 Ø2x7.5 15012 11412 41209 11125 Ø2x10 44091 226709 EMOXL 11412 226706 M3x3 42241 41259 15012 36203 Ø5xØ10x4 15012 11125 M2.5x10 13002 13002...
  • Page 20 EMOXL 11125 M2.5x10 11125 36205 41838 11125 EMOXL 44215 11401 234702 94085 94087 75023 11401 Align Insert 11401 M3x4 75023 Ø2x14 11120 M2.5x20 11120...
  • Page 21 EMOXL 41753 41753 41698 233201 226801 76mm 41753 41753 41697 41753 Small 233201 233201 62.5mm 41753 41753 41695 233201 233201 113.5mm 41753 41753 41696 233201 233202 110mm 41753 41753 41694 226802 226802 137mm 41753 41753 41786 233201 233201 82mm 41753 41753 41786 233201...
  • Page 22 EMOXL 11215 11215 M3x28 11223 M3x30 11215 11223 11210 EMOXL M3x16 11210 11211 M3x18 11214 M3x25 11214 11211...
  • Page 23 EMOXL M3x10 11207 234705 15012 M3x10 15012 42233 15012 234704 Ø5xØ10x4 EMOXL 11215 M3x28 11215 11233 M3x50 11233 12203 11215 12203...
  • Page 24 EMOXL 11215 11215 M3x28 11223 M3x30 11215 11223 EMOXL 11206 M3x8 11209 M3x14 141012 Ø3xØ7x0.5 14102 44272 11209 44274 11206...
  • Page 25 EMOXL 11106 M3x8 11210 M3x16 11212 M3x20 11214 M3x25 11208 12307 11214 11209 11413 11212 M4x13.5 11208 M3x12 12307 11106 11212 11213 226903 11413 11213 11214 M3x22 11209 M3x14 11210 226903...
  • Page 26 EMOXL 11212 M3x20 11213 M3x22 11214 M3x25 12303 11214 11413 M4x13.5 11413 11413 226903 11212 11213 226903 11214...
  • Page 27 EMOXL 11214 M3x25 11413 11209 M3x14 11413 M4x13.5 11214 226903 11209 226903 11214...
  • Page 28 EMOXL 41336 41336 41780 223903 223903 41336 62.5mm 41336 223903 41781 41336 223903 EMOXL 11209 M3x14 11211 M3x18 41205 41205 228404 11209 11211 11209 11211...
  • Page 29 11227 EMOXL 41819 91175 11206 11206 11206 12206 M3x8 227911 227901 11227 M2.5x8 12206 11206 11401 M3x4 11206 12206 44172 11206 91175 41819 11227 94056 EMOXL 11207 11401 M3x4 11207 95096 M3x10 94089 11401...
  • Page 30 EMOXL 11401 11239 42231 91176 11401 M3x4 42231 91176 91176 11401 11239 EMOXL Lock Unlock 11239 11239 Slow 11401 91176 M3x8 42231 Fast 11306 M3x10 11401 M3x4 42231 91176 11306...
  • Page 31 EMOXL 11207 11207 M3x10 87175 11306 M3x10 87179 11306 EMOXL 11208 234102 11208 M3x12 11413 11413 M4x13.5 234101 234103 11208...
  • Page 32 EMOXL 91004 11303 42244 44249 11303 11303 11211 M3x8 11211 M3x18 11211 EMOXL 30402 30411 30402 30411...
  • Page 33 EMOXL 87177 95109 87176 87176 87179 CH6 CH7 CH8 CH9 CH10 Bottom 87175 Steering servo (Not included) 87183 87184 Electronics speed control (Not included) Battery ON/OFF (Not included) Switch Motor Front Rear Shift diffrerntial lock diffrerntial lock servo servo servo (Not included) (Not included) (Not included)
  • Page 34 EMOXL 11125 232202 M2.5x10 95109 232203 11215 234803 234803 234803 11238 234803 11206 11125 M3x8 11238 11206 234803 M3x8x10 EMOXL 73119 73119...
  • Page 35 EMOXL 233404 233304 87183 233404 11102 233304 11102 M2x6 87184 11102 11102 EMOXL 11210 M3x16 12203 12203 M3x16...
  • Page 36 EMOXL 11207 M3x10 11207 EMOXL 11303 11303 M3x8 234801 234802 234802 234801...
  • Page 37 EMOXL 11108 M3x12 50058 12203 11108 42329 227001 227003 227002 12203 EMOXL 12304 12304 227004...
  • Page 38 EMOXL 11208 M3x12 11208 EMOXL 11207 M3x10 11207...
  • Page 39 EMOXL Step 1 Wash the inside of the body shell with mild detergent, then rinse and dry thoroughly. Step 2 237001 85278 Step 3 Mask the windows on the inside with masking tape. Step 4 Paint the body with polycarbonate spray paints. * When the paint is dry,rKITve the masking.
  • Page 40 EMOXL Wash the inside of the body shell with mild detergent, then rinse and dry thoroughly. Step 1 Step 2 231101 Paint the body with polycarbonate spray paints. * When the paint is dry,rKITve the masking. * When you have finished painting,peel off the external protective films.
  • Page 41 EMOXL 233301 42332 EMOXL 11102 233601 M2x6 87177 233611 11102 233602 11102 EMOXL 233401 233302 11102 11102 M2x6 87176 233402 87176 233303 11102...
  • Page 42 EMOXL 233603 11207 M3x10 233604 11207 EMOXL 233506 233505 85276 11207 M3x10 11207 238001 11207...
  • Page 43 EMOXL 233503 233502 73108 73108 EMOXL 94015 94015 11102 94015 11102 233507 M2x6 11102 94015 94015 94015 233502 233504 233501 233503 233504...
  • Page 44 EMOXL UNLOCK LOCK LOCK UNLOCK...
  • Page 45 EMOXL...
