CAUTION
Safety Precautions
1.1 This radio-controlled model is not a toy, it is designed for persons 14 years of age or older.
1.2 Do not operate your vehicle on unsafe terrain; always pay attention to your surroundings.
1.3 Never operate your vehicle on public roadways, around moving people, animals, or operating machinery.
1.4 Keep clear of power lines and high-powered radio equipment to minimize radio frequency interference.
1.5 Since this vehicle contains small components, it may be a choking hazard for small children. Keep the vehicle and
any spare parts out of reach of small children.
Inspect your radio-controlled model before operation
2.1 Ensure that all screws are properly tightened. Use thread-lock to secure any metal to metal contacts- especially for components designed
to withstand torque (servo mounts, motor mount, drive shaft grub screws etc.).
2.2 Always check the battery voltage for both the transmitter and vehicle prior to operating your vehicle. Keep the batteries fresh in the
transmitter and always begin your vehicle runs with a fully charged battery pack.
2.3 Always check that the motor and servo are operating smoothly and in the right direction prior to operation. If binding between
components is observed, replace parts as necessary to reduce possibility of component or servo damage.
2.4 To turn on your vehicle, always power on your transmitter first, then power on your receiver.
After operating your radio-controlled model
3.1 To turn off the vehicle, always power off your receiver prior to powering off your transmitter.
3.2 Use caution when handling the vehicle- components, especially the ESC and motor which will be hot after operation.
3.3 Never use battery packs which are dented or otherwise damaged. Ensure that the wire insulation is intact and that connectors are
properly soldered. Lithium batteries can become fire hazards if mishandled.

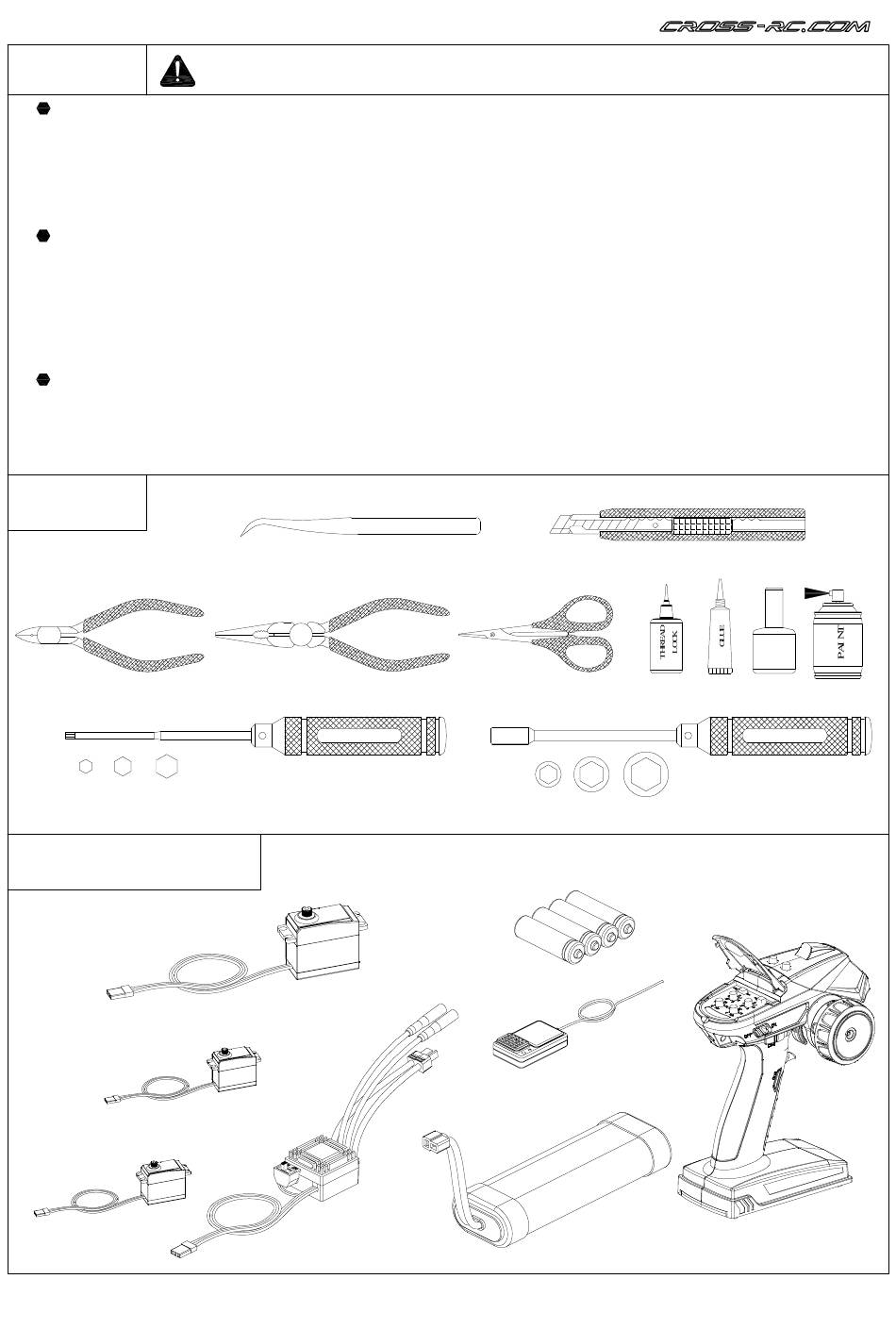

TOOLS
(Not included)
2.5
1.5
2.0
Electronic equipment
(Not included)
To prevent serious personal injury and/or property damage,operate all remotely
controlled models in a responsible manner as outlined herein.
4.0
5.5
1
ABS
CEMENT
7.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the EMO XT4 and is the answer not in the manual?

Questions and answers

Summary of Contents for CROSS-RC EMO XT4

  • Page 1 To prevent serious personal injury and/or property damage,operate all remotely CAUTION controlled models in a responsible manner as outlined herein. Safety Precautions 1.1 This radio-controlled model is not a toy, it is designed for persons 14 years of age or older. 1.2 Do not operate your vehicle on unsafe terrain;...
  • Page 2 EMO XT4 Assembly Remind 1. The spraying and bonding process to body shall be carried out in a ventilated place,and safety masks shall be worn. 2. Please notice to the use of different glues when assembling the vehicle body: the vehicle shell is made of ABS material,please use ABS special glue;...
  • Page 3 71226 71227 91006 91007 BAG(A) 42324 50046 44177 71177 71178 12204 11125 12105 M2.5x10 30307 M2.5 BAG(B) Ø6.5xØ2.5xØ2 Ø7xØ5xØ1 ∅ 2.0x ∅ 5.5x0.4 13004 200501 42312 42313 17007 17008 41195 41821 41197 41196 41418 200401 41198...
  • Page 4 BAG(C) 215205 215206 41556 15012 11125 72007 ∅5 x ∅ 8x0.3 M2.5x10 ∅ 5x ∅ 10x4 BAG(D) 215204 215202 215203 215201 215101 33901 33902 33903 13001 33801 41549 41372 41550 41554 41307 Ø3xØ7.2x0.5 71229 74015 42202 42201 15012 15014 72003 14201 42203 14102...
  • Page 5 BAG(E) 42214 33905(11T) 33906(18T) 33907(13T) 33904(34T) 95069 95068 42213 42212 Ø15xØ18x0.2 41209 44092 215307 215308 75020 41558 33908 41398 42209 42223 12203 215301 215311 215310 215304 215303 215306 215305 215302 215309 15015 15013 13002 15012 72007 Ø5xØ8x0.3 Ø3.8xØ9.2x0.6 ∅ 15x ∅ 21x4 ∅...
  • Page 6 BAG(F) 94051 94052 41688 94053 Ø1.3xØ1 x20 94054 BAG(G) 41164 41645 41644 41646 41641 41642 41640 41643 BAG(H) 223903 2239 223904 41336 2239x2 223903 223901 223902 BAG(I) 11413 95065 95064 M4x12 BAG(J) 14104 Ø2.2xØ5x0.5 73074 45116 41822 71285 75022 75023 75024 75025 BAG(K)
  • Page 7 BAG(L) 215004 215002 215003 215008 215001 215006 215007 215009 BAG(M) 214902 214901 214907 214905 214904 214903 214906 215103 BAG(N) 215104 215105 215107 209003 209001 215106 209002 209001 215102...
  • Page 8 BAG(O) 225305 225308 225302 225307 225301 225306 BAG(P) 225504 225502 225501 225503 BAG(Q) 215014 215005...
  • Page 9 BAG(R) 224601 BAG(S) 224701 224702 BAG(T) 225101 225102 225104 225105 225103...
  • Page 10 BAG(U) 224802 224803 224801 224805 224804 BAG(V) 225204 225203 225202 225207 225208 BAG(W) 225205 225201 225209 225206...
  • Page 11 BAG(X) 225016 225015 225010 225014 225001 225008 225013 225003 225004 225017 225015 225005 225006 BAG(Y) 225401 225402 225410 225412 225416 225411 225417 225418 225404 225413 225407 225415 225419 225405 225414 225403 225406 225408 225409 BAG(Z) 87117 87118 87123 87116...
  • Page 12 BAG(ZA) 224906 224910 224908 224905 224907 224913 224902 224912 224901 224911 224915 224903 224914 224909 224904 BAG(ZB) 73093 73095 73094 73092 BAG(ZC) 41259 11704 42224 Ø2x7.5 M1.6x6 Ø3x10.8 11201 11210 11102 11872 M2x4 M2x6 M2.6x10 M3x16 11874 11211 11104 11205 M2.6x14 M2x10 M3x6...
  • Page 13 BAG(D) 12304 15012 41549 74015 14201 15012 33801 12304 71229 215101 14201 71229 ∅ 4.2x ∅ 8x0.4 Limited slip adjust 14201 12304 (1) Tighten to the right. (2) "0.5"or"0.75" turns to the left. 2S Li-Po:0.75 3S Li-Po:0.5 Recommended motor 11401 Brushed motor 30T-35T M3x4...
  • Page 14 33902 BAG(D) 15014 33901 15014 15014 42201 15014 33903 15014 13001 Ø3xØ7.8x0.5 41307 42202 13001 41554 13001 11207 15012 11207 M3x10 Tips: 15012 Tighten the screws with one sheet of 42203 72003 paper inserted between both gears. 42203 72003 15012 ∅...
  • Page 15 BAG(D) 215201 11207 M3x10 11207 Tips: Test the gear mesh by connecting the ESC to the motor/gearbox assembly. If the gearbox is not operating smoothly or is creating excess noise, check the gear mesh prior to proceeding to the next step. White Black ON/OFF...
  • Page 16 BAG(ZC) 11303 M3x8 214905 11303 42224 214907 11207 11303 214906 11303 M3x8 91152 11207 11207 M3x10 42224 Ø3x10.8...
  • Page 17 BAG(ZC) 11207 M3x10 12203...
  • Page 18 BAG(ZC) 11207 M3x10 12203...
  • Page 19 BAG(ZC) 11206 11206 Not included M3x8 215004 11206 11206 Not included 215002 11206 Not included 11206 215009 M3x8 11206 12206 41819 V3.0 11206 91175 11227 11227 M2.5x8 12206 41819 11206 Turn on the Transmitter and Receiver and set the Streeing Servo Trim at the neutral position.
  • Page 20 BAG(ZC) 11303 M3x8 V3.0 11227 M2.5x8 12206 11401 M3x4 Turn on the Transmitter and Receiver and set the Streeing Servo Trim at the neutral position. Slow...
  • Page 21 BAG(ZC) 11413 M4x12 11413 11413 225305 11413 M4x12 225306 11413...
  • Page 22 BAG(ZC) 11207 M3x10...
  • Page 23 13004 BAG(B) 41195 13004 200501 ∅ 2.0x ∅ 5.5x0.4 Ø6.5xØ2.5xØ2 41197 41418 17007 17007 42312 Ø7xØ5xØ1 17007 42313 41196 17008 200103 41198 17008 41336 41821 200401 41821 41336...
  • Page 24 BAG(E) 15015 75020 215309 11316 33907 M2.5x10 11227 33906 M2.5x8 33904 15015 33906 11227 42223 33907 42214 ∅ 15x ∅ 21x4 33905 15013 15013 11316 ∅ 10x ∅ 15x4 15012 215301 75020 215307 Ø15xØ18x0.2 15012 15012 Ø5xØ10x4 13002 11125 72007 Ø3.8xØ9.2x0.6 215308 11125...
  • Page 25 BAG(E) 15012 Right(95068) 215306 15012 Ø5xØ10x4 15013 15013 95068 ∅ 10x ∅ 15x4 95069 15013 215305 15012 Left(95069) 42208 42208 M3x10 42208 Right 33908 41398 42208 Left Align Insert 42208...
  • Page 26 BAG(E) 41558 11412 11136 M2.5x18 11412 M3x3 42209 42209 215302 11133 M2x12 94051 94052 Align Insert 11136 11133 41209 44092 11412 11412 41209 M3x3 44092 11412...
  • Page 27 BAG(E) 15012 215301 15012 Ø5xØ10x4 215308 13002 15012 Ø3.8xØ9.2x0.6 72007 11125 72007 Ø5xØ8x0.3 215308 11125 11125 13002 M2.5x10 12203 215310 42213 11211 12203 215310 33908 15012 41398 12203 11211 42212 11211 M3x18 42213 15012 42212 Ø5xØ10x4 15012...
  • Page 28 BAG(E) 41558 11412 11412 M3x3 42209 11133 M2x12 11136 42209 215302 M2.5x18 94053 94054 Align Insert 11136 11133 11412 44092 11412 M3x3 41209 11412 41209 44092...
  • Page 29 BAG(G) 41336 41336 41645 BAG(H) 223903 215102 53.5mm 41336 41336 41640 223903 223903 41336 95.5mm 223903 41641 223902 41336 41336 93mm BAG(ZC) 11210 11210 M3x16 11211 M3x18 11215 11215 M3x28 11211 12203 12203 11211 12203...
  • Page 30 BAG(G) 41336 41336 41646 BAG(H) 223903 223903 61mm 41336 41336 41644 41336 215102 215102 115mm BAG(ZC) 11210 11210 M3x16 11214 M3x25 11214...
  • Page 31 34 34 BAG(G) 41336 41336 BAG(H) 41642 223903 223903 101mm 223903 41643 223902 41336 41336 41336 98.5mm 34 35 BAG(ZC) 11211 M3x18 11215 M3x28 11215 11211 12203 12203 11211 12203...
  • Page 32 BAG(I) 95064 41298 41524 11205 11205 41523 M3x6 208002 208001 41297 208001 41298 208003 41524 41523 41297 208002 11205 BAG(I) 95065 41298 41524 11205 11205 41523 M3x6 208004 208001 41297 208001 41298 208005 41524 41523 41297 208004 11205...
  • Page 33 BAG(I) 11413 M4x12...
  • Page 34 BAG(I) 11212 11413 11207 12203 M4x12 BAG(ZC) 11211 11207 M3x10 11212 11209 11413 M3x14 12203 11211 12203 M3x18 11212 12203 M3x20 Not included 11211 11212 11209 11206 M3x8 11210 11210 M3x16 11106 After connecting steering servo arm, continue to adjust steering end points in transmitter to eliminate any cvd binding when turning full right and left.
  • Page 35 BAG(ZC) 11212 41164 11212 M3x20 Front 11214 M3x25 11214 41164 41164 41164 11212 Front 41164 11214 11212 12203 11211 11211 11211 M3x18 11212 11212 11413 M3x20 12203 BAG(I) 11211 11413 11212 M4x12...
  • Page 36 BAG(ZC) 11212 M3x20 11214 M3x25 41164...
  • Page 37 BAG(ZC) 11206 M3x8 14102 Ø3xØ7x0.5 Turn on the Transmitter then Receiver and set the Streeing Servo Trim at the neutral position. 11206 14102 11401 91176 42231 V3.0 Lock Unlock 11401 M3x4 41688 Ø1.3xØ1 x20...
  • Page 38 BAG(A) 50046 11125 M2.5x10 11125 12105 M2.5 42324 30307 71177 44177 12205 71178 12204 12204 12204 12204...
  • Page 39 BAG(Z) Steering (Not included) servo Shift Diffrerntial lock servo servo (Not included) (Not included) (Not included) White Black Electronics speed control (Not included) Battery ON/OFF (Not included) Switch Motor 87117 87116 87118 87123...
  • Page 40 225017 225016 225015 BAG(ZC) 225011 75025 225012 225012 225013 75023 225010 75024 225002 225001 11303 11303 11303 M3x8...
  • Page 41 BAG(ZC) 225006 225009 225005 75023 11102 11102 M2x6 87117 225008 11102 11125 85243 225007 M2.5x10 11125 224803 225104 225105 225004 225003 11102 11102 225206 11872 M2.6x10 11872...
  • Page 42 BAG(ZC) 225203 11872 11872 M2.6x10 225202 11872 11872 M2.6x10 11303 M3x8 11303 11303 11872...
  • Page 43 BAG(ZC) 224802 224912 11704 M1.6x6 71285 45116 14104 11201 11201 M2x4 BAG(J) 225102 224902 14104 41822 Ø2.2xØ5x0.5 11704 11201 225101 11201 224901 11201 11201...
  • Page 44 BAG(ZC) 224801 41259 224911 41259 Ø2x7.5 224909 224913 224914 224910 75022 LOCK 49 56 BAG(ZC) 91186 224601 91186 224804 Ø4x2 224906 224904 224905 224908 224907 224903...
  • Page 45 BAG(ZC) 11104 M2x10 11104 11102 M2x6 11205 11205 M3x6 11102 225103 11102 11102...
  • Page 46 BAG(ZC) 214302 73074 11102 M2x6 214303 225302 214301 11102 73074 225301 11320 11320 M2.5x8 11303 M3x8 11102 M2x6 225419 225418 11303 11303 11102...
  • Page 47 BAG(ZC) 225208 11872 225206 11320 11874 11872 225207 M2.6x10 11320 11874 11872 M2.6x14 11320 11320 11320 M2.5x8 11872 11320 11872 11320 11872 225205 224701 11872 225209 11872 M2.6x10 11872 11872 11872 225204...
  • Page 48 BAG(ZC) 11206 11206 11206 M3x8 11206 11872 M2.6x10 11206 M3x8 11872 11206...
  • Page 49 73093 91182 73094 73095 91182 BAG(ZC) 11206 11206 11206 M3x8 21107 21107 21107 21107 11201 87118 87123 M2x4 21102 21102 11201 11201...
  • Page 50 BAG(ZC) 73092 225014 91182 11102 M2x6 224805 224915 11102 LOCK OPEN...
  • Page 51 BAG(ZC) 11604 M4x30...
  • Page 52 BAG(ZC) 225407 225406 225401 225402 11102 225408 M2x6 225403 225409 11206 225405 225404 M3x8 11102 225410 225411 11102 11206...
  • Page 53 BAG(ZC) 11102 225414 11102 225412 M2x6 225417 11102 225415 11206 225416 11207 M3x8 11206 11207 225413 M3x10 11207 11320 M2.5x8 11206 11320 11320 11320 11102 11102...
  • Page 54 BAG(ZC) 11207 11207 11207 11207 M3x10...
  • Page 55 BAG(ZC) 11208 M3x12...
