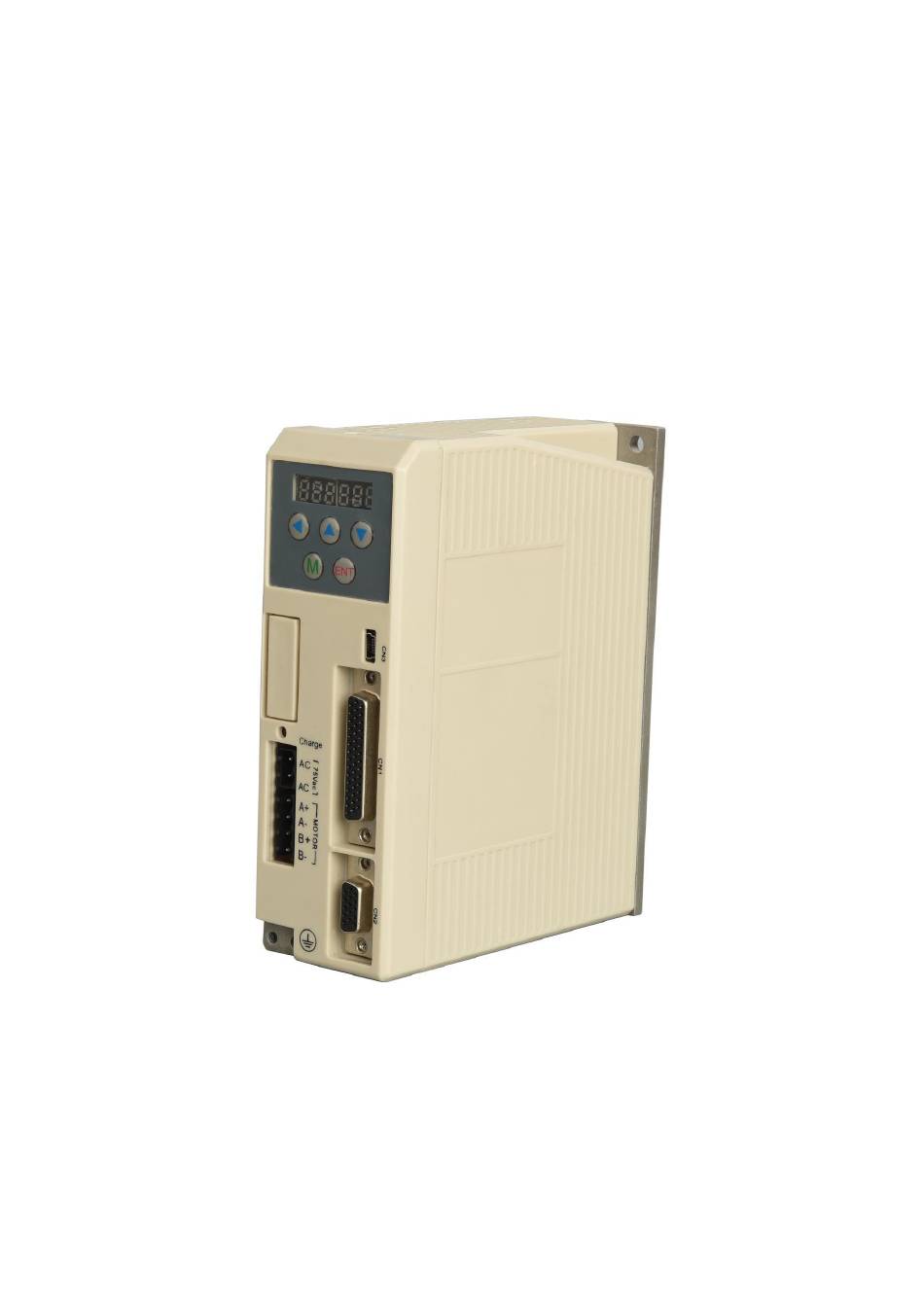

- Page 1 Shenzhen ECON Technology Co.,Ltd JKON-TEK EC758 CLOSED-LOOP STEP MOTOR DRIVE User's Manual...
-
Page 2: Table Of Contents
Shenzhen ECON Technology Co.,Ltd JKON-TEK CONTENT Foreword ......................................3 1 Overview ....................................... 4 1.1 Product Introduction ................................4 1.2 Characteristics .................................... 4 1.3 Application areas ..................................4 2 Performance Index ..................................5 2.1 Electrical characteristics ................................5 2.2 Use environment ..................................5 3 Installation .................................... -
Page 3: Foreword
Shenzhen ECON Technology Co.,Ltd JKON-TEK Foreword Thank you for using our closed loop stepping drive. Before using this product, please read this manual carefully to understand the necessary safety information, precautions, and operation methods. Incorrect operation can have extremely serious consequences. -
Page 4: Overview
In addition, in the motor continuous overload, the driver will output alarm signal, with the same reliability as AC servo system. The installation size of EC758 adaptor motor is fully compatible with the traditional 86 series stepping motor, and the traditional stepping drive scheme is easy to upgrade. -
Page 5: Performance Index
Shenzhen ECON Technology Co.,Ltd JKON-TEK 2 Performance Index 2.1Electrical characteristics EC758 Explanation Minimum Value Typical Value Maximal Value Unit Continuous output current Supply Voltage (AC) Logic input current Logical input voltage Pulse Frequency Pulse high width Position Error Control ±1... -
Page 6: Installation
Shenzhen ECON Technology Co.,Ltd JKON-TEK Use Elevation Below 1000 meters Weight 0.4KG 3 Installation 3.1 Mounting dimensions 3.2 Installation method The reliable operating temperature of the driver is usually within 60℃，and the motor operating tem perature is within 80℃。 It is recommended to use the automatic semi-flow mode when using the motor. When the motor sto ps, the current is automatically reduced by half to reduce the heat of the motor and the drive。... -
Page 7: Port Definition
Shenzhen ECON Technology Co.,Ltd JKON-TEK 4.2 Port Definition 4.2.1 Status indication LED digital EC758 an LED to indicate power status and six digital display, LED panel operation Please refer. Di splay parameters defined as follows:... - Page 8 Shenzhen ECON Technology Co.,Ltd JKON-TEK ： LED display Meaning Remark Low Level Data With high status and data b etween High Level Data Position Error Receives the error pulse an d encoder feedback to the drive r. 32-bit range. When viewing t...
- Page 9 Shenzhen ECON Technology Co.,Ltd JKON-TEK Terminal number Symbols Name Explanation AC power input Power 20-75Vac Power Terminal Interface 2 Terminal number Symbols Name Explanation Stepping motor A + phase winding interface Stepping motor A-phase win ding interface Mixed Servo Motor Terminal (make...
- Page 10 Shenzhen ECON Technology Co.,Ltd JKON-TEK PEND- Position signal negative output terminal ENA+ Enable Positive Input Compatible 5V- 24V level signal ENA- Enable negative input Encoder Signal Port (15 DB NEEDLE HEAD) Terminal number Symbols Name Encoder A channel positive input EA＋...
- Page 11 Shenzhen ECON Technology Co.,Ltd JKON-TEK A control signal interface circuit...
- Page 12 Shenzhen ECON Technology Co.,Ltd JKON-TEK Control Signal Timing Drawing: 高电平高于 3.5V >1us 低电平低于 0.5V >1us 高电平高于 3.5V 低电平低于 0.5V >5us In order to avoid malfunctions and deviations, PUL-, DIR- ENA- should meet certain requirements, and, as shown below: Comment： t1：...
- Page 13 4.2.5 Parameter settings EC758 drive parameters there are two methods: one is through the RS232 serial communication port of a PC, using a dedicated debugging software parameter setting is completed, another panel is set security param eters direct drive, there is an internal drive motor corresponding to the optimal default factory configuration parameters, the user need only adjust the drive to the internal breakdown of the number in accordance with the specific use, see the detailed use of the software debugging using Pro Tuner explained.
- Page 14 Shenzhen ECON Technology Co.,Ltd JKON-TEK Fine Fraction Factory default setting 4000 200～65535 Digital display mode parameters as: Wherein "00" represents a parameter number, the specific meaning of the following table Serial Default value Range Account for number Name The higher the current, the faster it...
- Page 15 Shenzhen ECON Technology Co.,Ltd JKON-TEK ENCODER Default 1000 wire encoder, 4 x 1000 200～65535 resolution frequency The unit is the number of pulses, Tracking error 2000 1～65535 where the number of pulses is based alarm threshold on the encoder resolution.
- Page 16 Shenzhen ECON Technology Co.,Ltd JKON-TEK 0 -- Foshan -- trouble time optical Fault output level 0 or 1 coupler not on 1 -- Trouble time optical coupler on Single and double pulse 0 -- Pulse direction 1 -- Dual pulse...
- Page 17 Shenzhen ECON Technology Co.,Ltd JKON-TEK Internal Start 0 And 1 represent the two startup 0 or 1 Direction directions, respectively After the motor runs a trapezoid, it Internal running 1~65535 waits a set time, and then runs the interval next trapezoid again...
-
Page 18: Warranty And After-Sales Service
Shenzhen ECON Technology Co.,Ltd JKON-TEK 5 Warranty and after-sales service Please keep the packing box for transportation, storage or need to return to the company for maintenance. One year warranty period: From the use of this drive within one year because of the product itself caused by the damage, responsible for the warranty.
