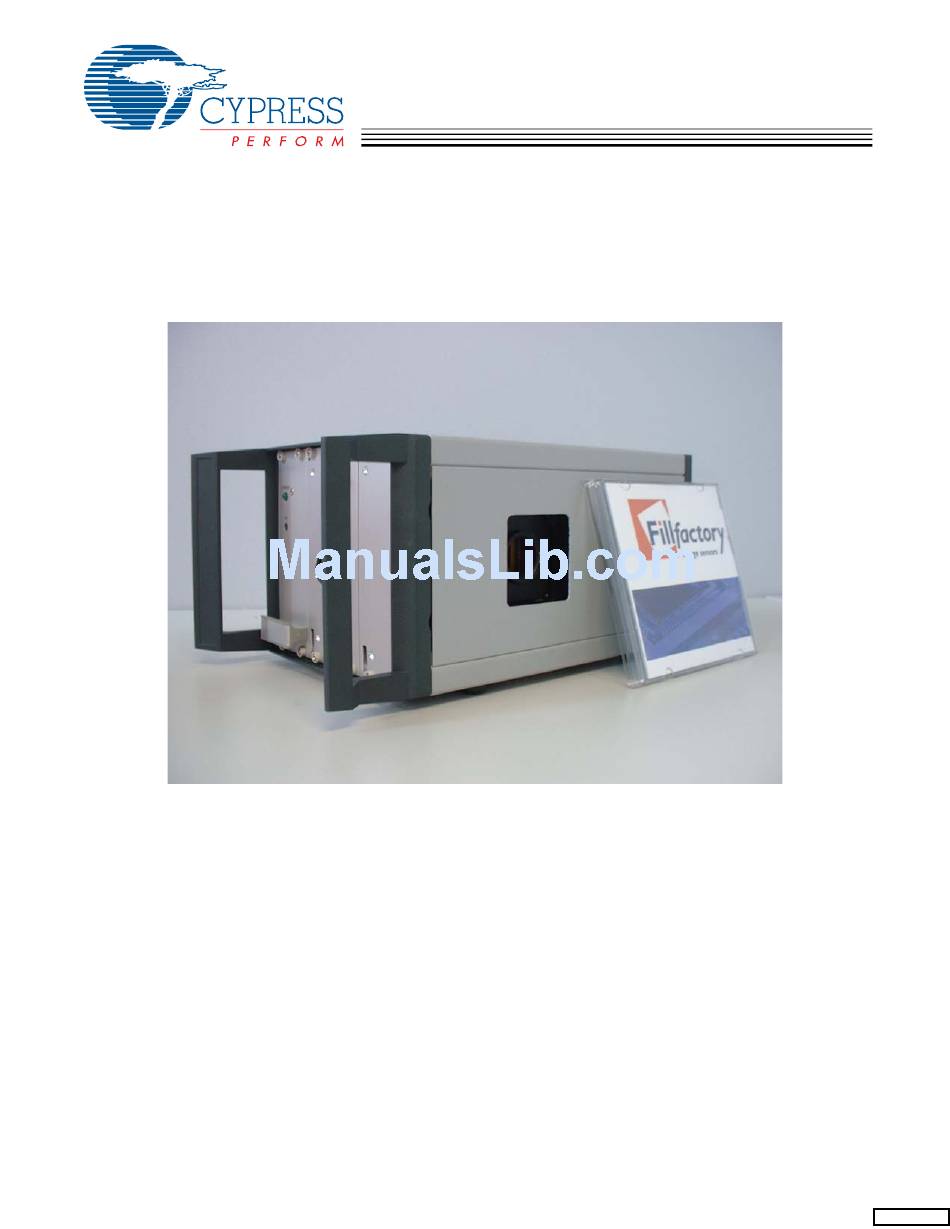

- Page 1 LUPA Demo Kit User Guide Cypress Semiconductor Corporation • 3901 North First Street • San Jose CA 95134 • 408-943-2600 Revised December 5, 2005 [+] Feedback...
- Page 2 3.2.4 Other Sensor Parameters ... 5 4.0 DATA SHEET ... 5 5.0 CONTACT ... 6 List of Figures Figure 1-1. The LUPA300 Demo Kit ... 3 Figure 3-1. Software Windows... 4 LUPA Demo Kit User Guide Page 2 of 6 [+] Feedback...
- Page 3 Evaluation software (Win 2000 & XP) allows the users to make an evaluation of the LUPA300 sensor and its functionalities. Introduction The LUPA demo kit consists of one multifunctional digital board (memory, FPGA, and ethernet interface) and an analog image sensor board.
- Page 4 2. Do not unplug the ethernet cable or power down the demo kit when the software is running to avoid any software failures. When this install sequence is followed strictly the software can be started (C:\program files\cypress\lupa300\lupa_demo\ lupa300_demo_fast.vxe). Using the Software LUPA Demo Kit User Guide Figure 3-1. Software Windows Page 4 of 6 [+] Feedback...
- Page 5 Please consult the data sheet (also on CD) for the impact of the other sensor parameters on the grabbed image Data Sheet For a copy of the data sheet in PDF format, please go to our Web site at LUPA Demo Kit User Guide www.cypress.com Page 5 of 6...
- Page 6 The inclusion of Cypress products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges. LUPA Demo Kit User Guide Page 6 of 6...
