NEUTRAL ASSEMBLY (additional details for P3 Panels):
15. If this kit is installed in a panel with a neutral,
fasten the branch neutral lugs (Item 8) to any
of the eight indicated sites on the upper or
lower neutral cross bus with 1/4"-20 x 3/4"
screws (Item 13). (Refer to Fig. 6)
16. For 30" wide enclosures, larger panels may
have auxiliary neutral lug mounting locations
on the vertical neutral riser bus, as shown on
each side. If present, each of these 3-hole
patterns can be used to mount one neutral
lug. Place a neutral lug on the 3-hole
mounting area, using the two holes that
orient the lug towards the top or bottom
of the panel. Use a pair of 1/4"-20 screws
(Item 13) to secure the neutral lug to the
vertical neutral riser bus. (Refer to Fig. 6 & 7)
(NOTES: 1. Shorter interiors will not have
these auxiliary locations. 2. These auxiliary
locations should NOT be used with 24" wide
enclosures due to wire bending guidelines.)
17. Tighten all screws to the torque values
specified on the back of the deadfront
(or the table on page 2).
DEADFRONT MODIFICATIONS & PANEL RE-ASSEMBLY:
18.
Identify the deadfront area that will cover the 6" kit unit
space. Measure the unit space locating dimension D
directly from the deadfront end plate (as shown).
(Refer to Fig. 8)
19.
Remove any full width plate and any center strip covering
the deadfront area for the 6" kit unit space.
20.
Fasten the proper deadfront plate (Item 5 for P2 panels;
Item 6 for P3 panels) to the deadfront side rails with four
#8-32 screws (Item 10) as shown.
21.
Install the Escutcheon Plate (Item 7) by orienting it such
that the "ON" marked on the Escutcheon Plate is over the
ON side of the breaker and then inserting the clips on the
opposite side and then rocking the "ON" side into position
until it firmly "clicks" into place.
22.
If the installed kit does not completely fill the unit space
of removed modules, a deadfront filler plate kit is required
to cover unit space where no branch components are
installed. Use kit DFFP3 for 3" gaps and kit DFFP6 for
6" gaps.
23.
If a deadfront center strip was removed to make space for
this kit, and a shorter strip is needed to cover remaining
dual-mounted branch modules, use kit DFK1 to install the
appropriate length strip.
Replace the deadfront using screws removed during
24.
disassembly.
25.
Tighten all hardware to torque values on the back of the
deadfront.
26. Before energizing the panel, ensure that any barriers
and fillers are in place and secure, that the deadfront
is installed, that the trim is in place, and the door is
closed and locked.
Contact Siemens Sales Office if considering usage in applications other than as shown.
These instructions do not purport to cover all details or variations in equipment, or to provide for every possible contingency to be met in connection with
installation, operation or maintenance. Should further information be desired or should particular problems arise, which are not covered sufficiently for
the purchaser's purposes, the matter should be referred to the local Siemens sales office. The contents of this Instruction manual shall not become part
of or modify any prior or existing agreement, commitment or relationship. The sales contract contains the entire obligation of Siemens. The warranty
contained in the contract between the parties is the sole warranty of Siemens. Any statements contained herein do not create new warranties or modify the
existing warranty.
Trademarks - Unless otherwise noted, all names identified by ® are registered trademarks of Siemens AG or Siemens Industry, Inc. The remaining
trademarks in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.

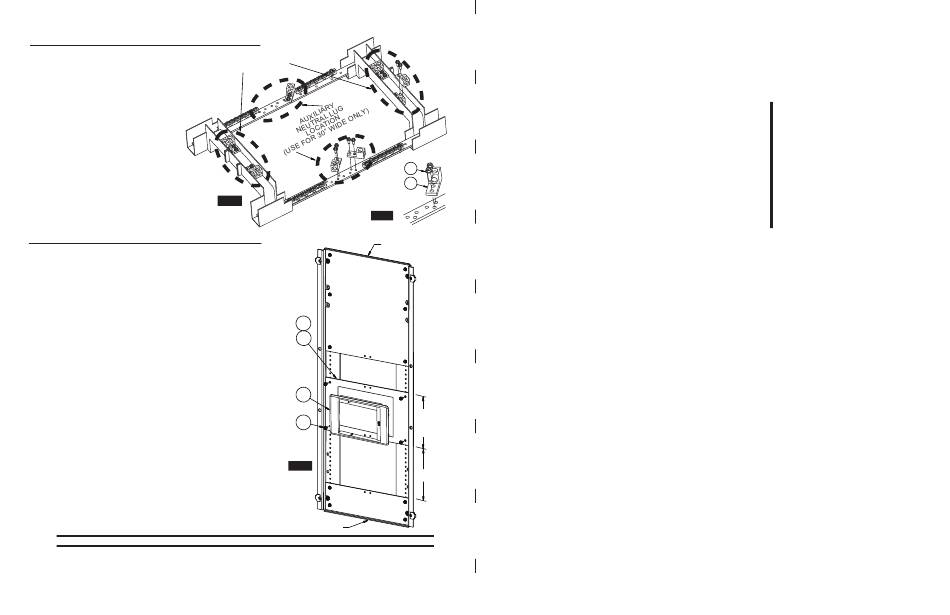

STANDARD
NEUTRAL LUG
LOCATIONS
AUXILIARY
Fig. 6
NEUTRAL LUG
DETAIL
Fig. 7
DEADFRONT
MAIN END PLATE
5
6
7
10
Fig. 8
DEADFRONT
END PLATE
-4-
S
BBKVA5262P2S
P2 / P3 Panelboard Kit
for Branch Mounting
13
3VA52 / 3VA61 / 3VA62
8
Circuit Breakers
6.00"
KIT
UNIT
SPACE
D
Installation
Instructions
