- Page 1 Altitude TV Stand INSTRUCTION MANUAL Please read these instructions carefully and retain them for future reference. FD-TS-12-01...
-
Page 2: Package Contents

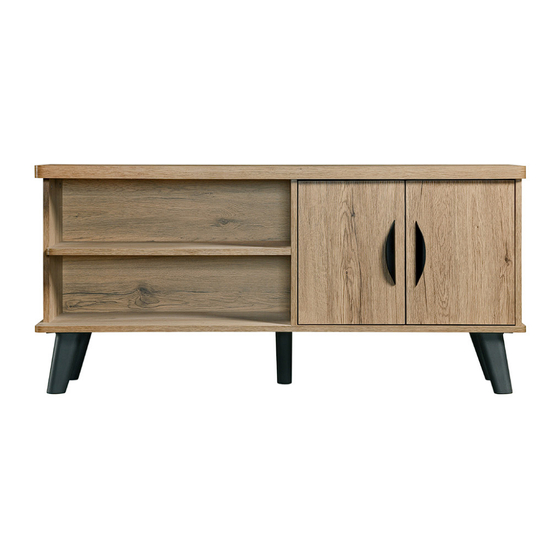

HIGHLIGHTS • Engineered Wood PACKAGE CONTENTS " • Everfurn Altitude TV Stand • Assembly Parts • Instruction Manual SPECIFICATIONS • Depth: 400 mm • Height: 550 mm • Width: 1200 mm • Surface Material: PU Lamination • Top Board Thickness:... -
Page 3: Identifying Parts
IDENTIFYING PARTS 12MM 16MM 40MM PLASTIC POWER DOWEL SCREW SCREW CSK CAP M3.5X16 M6X40 MINIFIX 5654 8X25 M3.5X12 NAIL " 1X16 1X30 1X10 6 SETS 1X10 1X32 DOOR P/H SCREW PVC LEG (H150MM) SUPPORT 902 MAGNET SPRING 1910-96B M4X20MM BLACK ALLEN KEY Hardware A. - Page 4 INSTRUCTIONS FOR USE ASSEMBLY INSTRUCTIONS Important Note: When tightening any fasteners, ensure not to tighten them more than 90% tightness to prevent damage to the product or the fastener. Step 1: 1. Fix the 8X25 Plastic Dowels x16 (A) into the Right Stand Panel (3), Middle Stand Panel (1), Left Stand Panel (4), and the Stand Shelf (2).
- Page 5 ASSEMBLY INSTRUCTIONS (Continued) Step 5: 1. Fasten the Stand Shelf (2) to the Right Stand Panel (3) using the M6X- 40mm Allen Cap Screws (D) and the Allen Key (L). 2. Cover the screws with the Screw Caps (F). Step 6: 1.
- Page 6 ASSEMBLY INSTRUCTIONS (Continued) Step 9: 1. Attach the Rear Stand (7) by hammering in x32 Power nails (G) along border between frame and rear stand. Repeat this step on each corner of the panel. Step 10: 1. Insert the Door Support Springs x4 (I) into each door.
- Page 7 ASSEMBLY INSTRUCTIONS (Continued) Step 12: 1. Clip the Left and Right Cup- board Door (8 & 9) in place by pushing the Door Support Spring (I) down and releasing once it’s aligned. Complete...
-
Page 8: Safety Precautions
CLEANING AND CARE INSTRUCTIONS - GENERAL • Cleaning: Wipe down the product’s surface using a thickly folded damp cloth. • Do not use harsh or abrasive cleaning chemicals or materials on the product; doing so may damage or scratch the surface finish. •... -
Page 9: Environmentally-Friendly Disposal
DISCLAIMER All product and company names are trademarks™ or registered ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. ENVIRONMENTALLY FRIENDLY DISPOSAL IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT. -
Page 10: Warranty
WARRANTY The Everfurn Altitude TV Stand includes a standard 12-month limited warranty against manufacturing defects and faults. Should the product be unboxed with any faulty parts, poor finishing, visible damage, or failure to perform due to a manufacturing defect or poor workmanship, please return it with your proof of purchase (till slip or invoice) to the store of purchase for an exchange, or repair, depending on the store’s returns policy.
