Summary of Contents for IKIMI KD-LFC-D3WB-400-FBM02

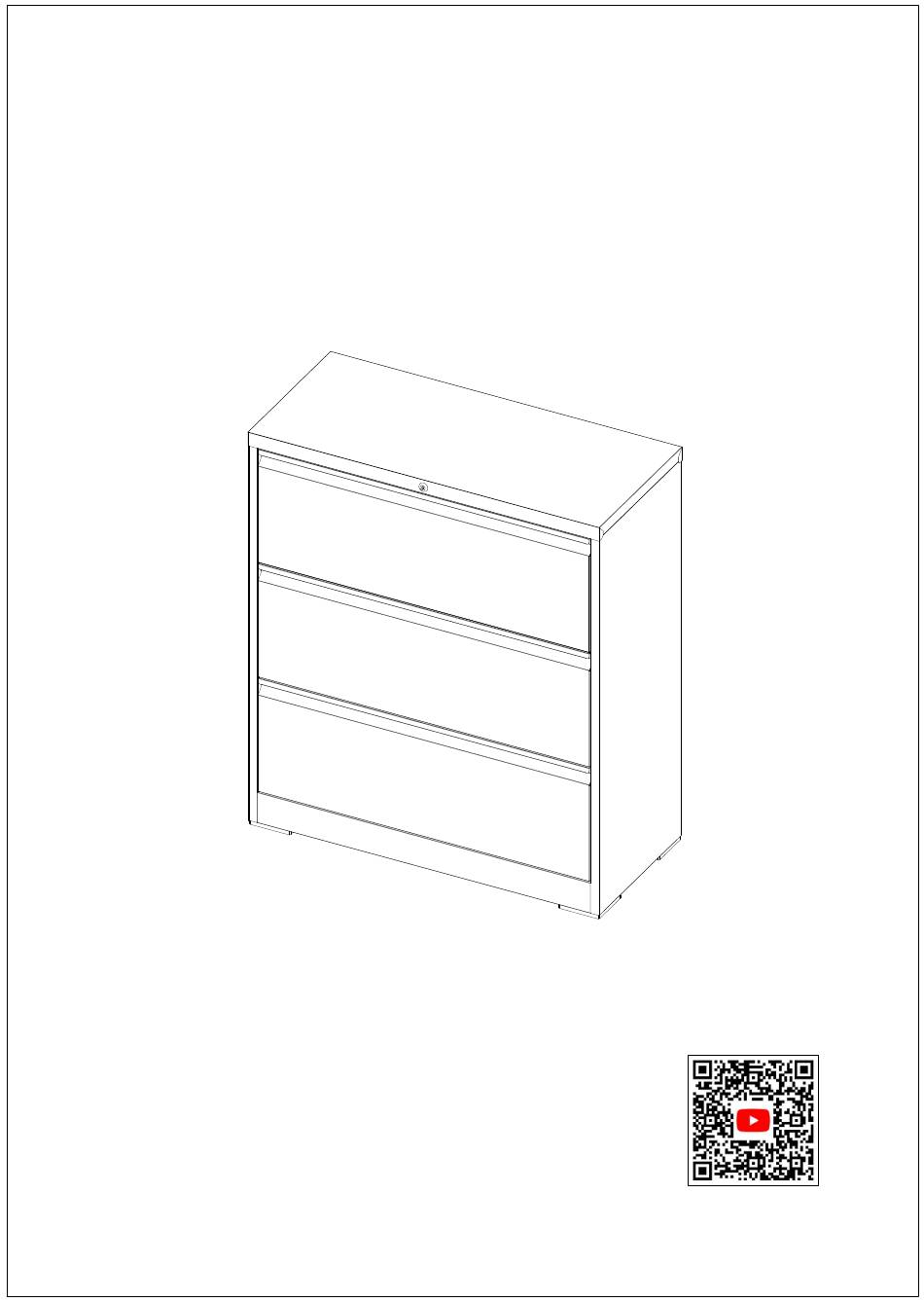

- Page 1 Installation video...
- Page 2 After sale...
- Page 3 1×2 2×1 3×1 4×1 5×1 6×1 7×3 8×3 9×3 10×6 11×3 A×30 B×16 C×3 D×3 G×2 E×4 30mm M5× 1.18inch 16mm M4× M4× 0.3inch 0.6inch...
- Page 5 Inser part 4 into the channels of the two side panels Inser part 5 into the channels of the two side panels...
- Page 6 put sixteen screws to hold part E into place. E×4 B×16 put four bolts and nuts to hold them in place...
- Page 7 put three bolts and nuts to hold them in place D×3 C×3 Put ten screws in the holes to make them in place. A×10...
- Page 8 Noted if the spring shaft is right here Place part 6 as shown in the figure put eight screws to hold part 6 into place. A×8...
- Page 9 Lift the left and right Locking Rods upwards as shown Ensure that the spring shaft is inserted into the lock bar hole Ensure that the spring shaft is inserted into the lock bar hole...
- Page 10 This step is to connect the cabinet to the wall, if you do not need to ignore it back G×2 Insert the tabs at the bottom of the drawer faces 7 into the drawer body 11 and bend the tabs...
- Page 11 Bend the tabs on the drawer faces. Make sure that the little bits protruding from part 8 Put four screws to hold them in place are all inserted. Note that the slots on the back wall of the drawer should face up. A×12...
- Page 12 the file hanging bar can be put inside. Choose the suitable hole according to the size of the folder Note: Whether the lock can be moved up and down while rotating the lock. If not, please follow step 9 again.
- Page 13 1.pill out the small rails in the slide rails on the side walls completely. with two people lifing each side of the drawer, align the four divots on the bottom with the two rail clips on the rails on each side and insert them into the rail clips.
