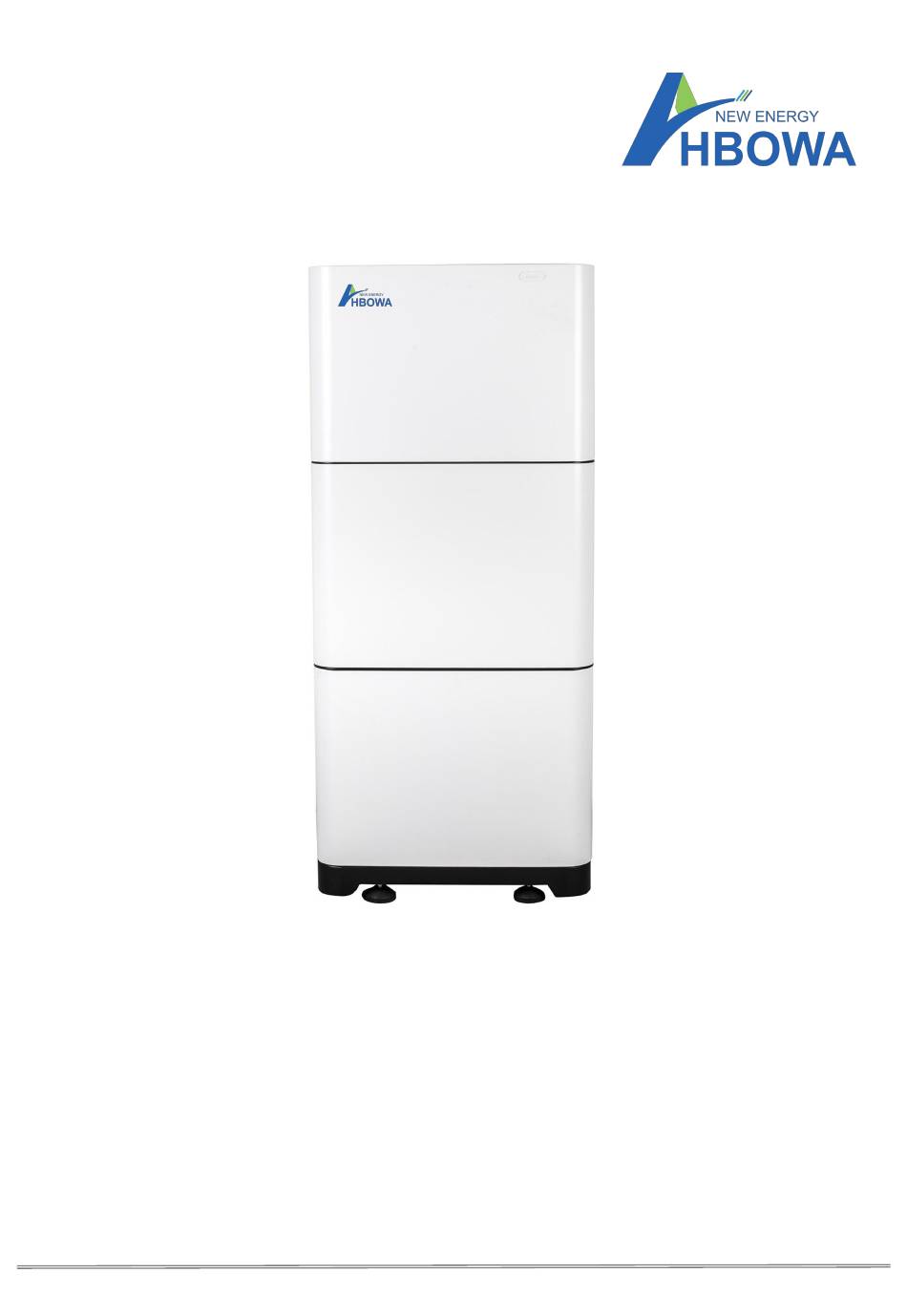

- Page 1 HIGH VOLTAGE ENERGY STORAGE SYSTEM BATTERY User Instruction Copyright © 2024 Suzhou Preta Intelligence and Technology Co.,ltd. All rights reserved.
-
Page 2: Table Of Contents
This manual introduces high-voltage lithium batteries. Before installing the battery, please read this manual and carefully follow the instructions during the installation process. If you have any questions, please contact our company immediately for consultation and clarification. Contents Catalogue 1. Symbol Description ................................4 2. - Page 3 （Revision History） Ver.No Date Revised Content Reasons Reviser Approve for Change 2023.07.20 First Edition First Draft Zhang Digen 2023-6-13 2024.04.6 Second Edition Updates Zhang Digen 2023-6-13 3 / 22...
-
Page 4: Symbol Description
1. Symbol Description Do not place near open fire or flammable materials. A potential hazard exists when the equipment is working. Wear personal protective equipment during operation. Warning electric shock. Power off the equipment before any operation. Grounding: indicate PE cable connection position. Do not place in areas accessible to children. -
Page 5: Safety Precautions
2. Safety Precautions Alert It is important and necessary to read the user manual carefully (and attachment) before installing or using battery. Failure to do so or to follow any instruction or warning in this document can result in electrical shock, serious injury, and death, or damage battery, potentially rendering it unusable. -
Page 6: Introduction
3.Introduction HVXP-P energy storage system battery is a new energy storage product developed and produced by The Company, which can provide reliable power supply for all kinds of equipment or systems. Figure 3-1 3.1 Features... -
Page 7: Specification
Functions Protection and Alarm Management and monitor Charge/Discharge End Cell Balance Over voltage Charging Protection Intelligent Charge Model Under Voltage Discharging Protection Charge/Discharge Current Limit Charge/Discharge Over current Protection Capacity Retention Calculate High/Low Temperature Protection Soft start Short Circuit Protection History Record 3.2 Specification Parameters... -
Page 8: Equipment Interface Instruction
Dimensions Battery module Power box Pedestal Figure 3-2 3.3 Equipment interface instruction Positive terminal: battery positive output Negative terminal: battery negative output Breaker: control circuit output, turn the switch to ON when use Figure 3-3 8 / 22... - Page 9 Figure 3-4 PCS: battery communication with PCS by RJ45 8P8C Parallel port A: Battery cluster communication address input Parallel port B: Battery cluster communication address output Start button: System start switch, Press the button BMS will works Forced Start button: Press and hold the button for 5 seconds BMS will works and close relays, Power supply to PCS when it has no power supply ...
- Page 10 SOC indication Green LED s are used to show the battery’s remaining capacity.There are five LED s to reflect the power status. State Charging/Discharging Capacity Indicator LED 0～20% 20～40% 40～60% 60～80% 80～95% 95～100% Note The SOC indicator light is off. The SOC indicator light is on.
- Page 11 Power terminals Power cable terminals: there are one pair of terminals is the input and output of the battery system. If parallel operation, suggest at the PCS side. For power cables uses water-proofed connectors. Must keep pressing this Lock Button while pulling out the power plug.
-
Page 12: Safe Handling Of Lithium-Iron Ess Batteries Guide
Figure 3-8 RJ45 Socket CAN2_H CAN2_H CAN2_L CAN2_L ADDR_DI ADDR_DO 24V- 24V- ADDR_IN: Input signal for Master BCU to arrange the address. ADDR_DO: Output signal for Master BCU to arrange the address. 24V- : 24V- signal CAN communication: CAN bus for each rack and upper computer or display monitor. (CAN2H CAH2L). 4. -
Page 13: Danger Label
4.2 Danger Label Figure 4-2 4.3 Tool Wire Cutter Modular Crimping Plier Screwdriver Electric drill Note Properly use insulated tools to prevent accidental electric shock or short circuits. If tools are not insulated, cover the entire exposed metal surfaces of available tools with electrical tape except their tips. 4.4 Safety Gear It is recommended to wear the following safety gear when dealing with battery pack. -
Page 14: Installation And Operation
5.Installation and operation 5.1 Package items Unpacking and check the Package items 1) For battery module package: Battery Module 2) For packing box of high voltage box: NOTE: Power and communication cables connect to inverter belongs to the packing box of high voltage box. 2 * 2000mm 8AWG power cables ... -
Page 15: Installation Location
5.2 Installation Location Make sure that installation location should meet the following condition: The area should be completely water-proof. The floor should be flat and level. No flammable or explosive materials. The ambient temperature is within the range from 0°C to 45°C. The temperature and humidity are maintained at a constant level. -
Page 16: Installation Steps
NOT allowed NOT allowed NOT allowed Figure 5-2 5.4 Installation Steps Warning Follow local electric safety and installation policy, a suitable breaker between battery system and inverter is required. All installation and operation must follow local electric standard and requirements. When battery modules are connected in series, the system should be powered off before installation operation. - Page 17 1. Place the base evenly on the ground and stack the battery box vertically downwards. Figure 5-3 2.Use one M4 * 10 screw with a locking torque of 2.5Nm to install the fixing bracket onto the battery box. Figure 5-4 3.Place the base against the wall and mark the position of mounting holes on the wall.
- Page 18 Figure 5-6 4.Place the base against the wall and secure the fixing bracket to the wall with one M6 expansion screw, locking the torque at 8Nm.. Figure 5-7 5. Then place the battery modules one by one on the base and repeat the previous steps Figure 5-8 18 / 22...
-
Page 19: System Turns On
6. Place the high-voltage box on top of the module. Figure 5-9 7. Connect the ground cable, power cable and communication cable between PCS and battery rack . Figure 5-10 5.5 System turns on Warning: Double check all the power cables and communication cables. Make sure the voltage of the inverter/PCS is same level with the battery system before connection. -
Page 20: System Turns Off
If necessary, turn on the switch at inverter`s battery side or between inverter and battery. If possible, turn on AC or PV power source to wake up inverter. Open protect cover of Power switch. And turn on power switch. Switch all the battery racks’ Isolating Switch to on position. Press the battery START button in turn, turn on the START metal button of the slave battery firstly, and finally turn on the START button of the master battery (1 master battery rack and 7 slave battery racks at most can be configured). -
Page 21: Damaged Batteries
6.4 Damaged Batteries Damaged batteries are dangerous and must be handled with utmost care. They are not fit for use and may pose a danger to people or property. If the module seems to be damaged, pack it in its original container, then return it to authorized dealer. -
Page 22: Maintenance Record
Maintenance Record Dear user.thank you for selecting our product,Please fill in and keep the warranty card for better services. Attn: Product No.: Tel: E-mail: Purchase Date: Address: Maintenance Record Date of repair Content Maintenance Personnel Note 22 / 22... - Page 23 Suzhou Preta Intelligence and Technology Co.,ltd Add: No..55 Shangxiang Road, Huaqiao Corporation Head Quarter Centre, Kunshan City, Suzhou City, China Tel: 0512-36684019 Email: info@pretapower.com Web: https://pretapower.com/...
