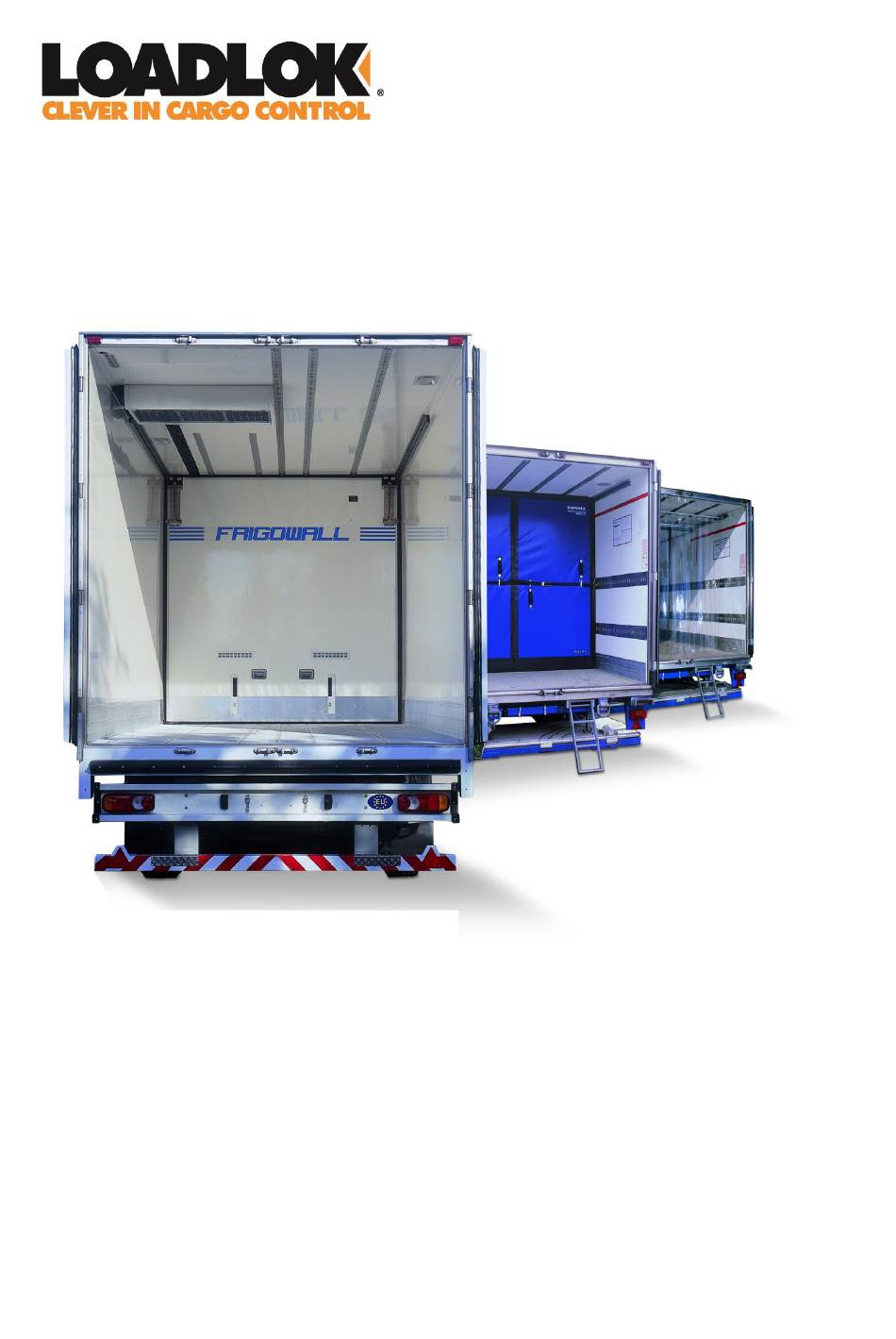

Instruction Manual
Frigo58 SmartLift 2D 2D SmartLift
Type:
Date: 09-01-2017
Version: 0.5
LoadLok
International B.V.
®
Oudewei 4
4004 LS TIEL
Nederland
T +31 (0)344-670 960
F +31 (0)344-722 960

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Frigo58 SmartLift 2D and is the answer not in the manual?

Questions and answers

Related Manuals for LoadLok Frigo58 SmartLift 2D

Summary of Contents for LoadLok Frigo58 SmartLift 2D

  • Page 1 Instruction Manual Frigo58 SmartLift 2D 2D SmartLift Type: Date: 09-01-2017 Version: 0.5 LoadLok International B.V. ® Oudewei 4 4004 LS TIEL Nederland T +31 (0)344-670 960 F +31 (0)344-722 960...
  • Page 2 Document history Version Status Date Author Remarks Concept 13 Jan 2017 Review 08 Mar 2017 page 2 of 42 Date : Jul-2024 Version : 0.5...

  • Page 3: Table Of Contents

    Parts to be supplied by yourself ..............15 Tools needed ......................16 Mounting the track .....................18 Mounting the U-profile (2D / 3D).................23 Installation of the Frigo58 SmartLift 2D in the vehicle ..........24 Check the functionality of Frigo58 SmartLift 2D ............29 Floorstopper recessed ..................29 Adjust spring tension ....................30 Check the break functionality ................32...

  • Page 4: Introduction

    Any change to the product makes the CE marking invalid. Please contact the manufacturer, if a modification of the product is necessary. Loadlok reserves the right, if not being met to the requirements, to withdraw the guarantee of their product partially or entirely.

  • Page 5: List With Abbreviations

    1.5 LIST WITH ABBREVIATIONS 3060 J-formed rail to guide the Frigo58 SmartLift 2D into the trailer. 3062 J-formed rail with locking holes to guide the Frigo58 SmartLift 2D into the trailer. Date : Jul-2024 page 5 of 42 Version : 0.5...

  • Page 6: Safety

    2.1 SIGNS ON THE PRODUCT Type designation sign Common information of the Frigo58 SmartLift 2D Warning sign Do not use the Frigo58 SmartLift 2D as a load securing device! Warning sign The balancer is a spring activated device. 2.2 SIGNS IN THE MANUAL...

  • Page 7: Mounting The Isolok Track

    3 MOUNTING THE ISOLOK TRACK 3.1 PARTS NEEDED 3.1.1 Mandatory parts Article number / Material Measurements Description IsoLok track 14001332 3062 SS304 3200 IsoLok track Alternative article numbers with descriptions: 14001345 10009470 3062 PRE GALV 4400 IsoLok track 3062 SS304 3200 CS IsoLok track 14001340 14001344 3062 SS304 4400 IsoLok track...
  • Page 8 Article number / Material Measurements Description U-profile 12009613 Track U profile L=3000mm pre- galv Notes: When applying 2D or 3D Frigo58 SmartLift 2Ds this article is mandatory Double roller with 12009514 thread Double roller with thread Notes: The roller guide which moves through the U-profile Locking for Frigo58 12009516 SmartLift 2D 2D and...

  • Page 9: Optional Parts

    3.1.2 Optional parts Article number / Material Measurements Description Steel stopper right 14003348 side Steel stopper rightside for Bulkheads Notes: Is delivered without fasteners Steel stopper left side 14003346 Steel stopper leftside for Bulkheads Notes: Is delivered without fasteners Roller wheels on a 12009541 short axle Roller wheels...
  • Page 10 Floorstopper recessed 11060149 Stainless steel floorstopper Notes: Parking assistant 12009651 Parking assistant Notes: It is advisable to mount 2 parking assistants in the Frigo58 SmartLift 2D for stability of the construction page 10 of 42 Date : Jul-2024 Version : 0.5...
  • Page 11 Frigo58 SmartLift 2D 12V Fan Digital with switch. Notes: If the temperature controlled fan is built-in by Loadlok the connecting rod between the balancers will be electrically insulated. Date : Jul-2024 page 11 of 42 Version : 0.5...
  • Page 12 Power Supply Kit controlled fan Multitemp 25+1 Notes: If the temperature controlled fan is built in by Loadlok the connecting rod between the balancers will be electrically insulated. page 12 of 42 Date : Jul-2024 Version : 0.5...
  • Page 13 Article number / Material Measurements Description Electrically guide 14001370 track Aluminium Captive Track 2997mm 10009933 5002 AL 3000 CS 5.5 FH POWERTRACK Notes: These tracks are used in combination with the power pack. Date : Jul-2024 page 13 of 42 Version : 0.5...

  • Page 14: Consumables

    3.1.3 Consumables Article number / Material Measurements Description Rubber seal 12009404 Doorseal profiel L=2,7m PVC spec Notes: Foot floorstopper 11060150 Stainless steel foot with rubber Notes: Stainless steel bolt 12009264 Stainless steel bolt M10x100 DIN 912 Notes: This bolt is used to mount and to adjust the foot floorstopper. page 14 of 42 Date : Jul-2024 Version : 0.5...

  • Page 15: Parts To Be Supplied By Yourself

    Max 5 mm diameter N.A. Notes: The length of the rivet is subject to the composition of the insulation wall of the trailer. This article is not in the delivery program of LoadLok. Screw bolt Max 5 mm diameter N.A.

  • Page 16: Tools Needed

    3.2 TOOLS NEEDED Blind rivet pliers Wrench Spirit level tool Allen key Measuring tape Extended wrench 24mm hex 1/2 inch page 16 of 42 Date : Jul-2024 Version : 0.5...
  • Page 17 Pipe wrench Socket wrench Date : Jul-2024 page 17 of 42 Version : 0.5...

  • Page 18: Mounting The Track

    3. If the IsoLok track is to be shortened, please leave enough material length in order to fasten the rubber end-stop with its steel cover plate. ATTENTION: Loadlok advises to use glue between the IsoLok track and side walls which is fit for this purpose. page 18 of 42 Date : Jul-2024 Version : 0.5...
  • Page 19 Insert the guide rails in the outer left or right side of your vehicle. Install the rails vertical (both to the wall and also to the ceiling). Measure the distance from the floor to the IsoLok track on both ends of the track. The difference must be less than 0.5 mm as is shown in figure.
  • Page 20 ATTENTION: When using rivets: Please fasten the IsoLok track at least of a length of 750 mm with bolts for maintenance purposes of the Frigo58 SmartLift 2D door. These sections must be opposite to each other! ATTENTION: Wait until the adhesive is fully hardened. Only then proceed with rolling the Frigo58 SmartLift 2D assembly into the track.
  • Page 21 10. Mount the end stops at the bulkhead side of the track. (As is shown on position 11 or 12) Use the drain hole to mount / attach the end stop. LoadLok advises to use a M5 x 30 bolt. Date : Jul-2024 page 21 of 42...
  • Page 22 Optional mount the steel stopper as shown in the figure. The hole in the IsoLok track must be drilled. In total 3 holes must be drilled! page 22 of 42 Date : Jul-2024 Version : 0.5...

  • Page 23: Mounting The U-Profile (2D / 3D)

    ATTENTION: Loadlok advises to drill holes in the U-profile every 100 mm. Measure the distance between the IsoLok track and the U-profile in the vehicle, like is shown in the figure.

  • Page 24: Installation Of The Frigo58 Smartlift 2D In The Vehicle

    Cover the lifting equipment as a precaution with soft material, in order to prevent damaging the Frigo58 SmartLift 2D. 1. Secure the Frigo58 SmartLift 2D with a lashing strap on the forks of the forklift to avoid falling. Lift the complete Frigo58 SmartLift 2D with a forklift with extended forks (min.
  • Page 25 SmartLift 2D can not roll out of the unsecured rails. Override the brake with a screwdriver on both sides. 7. Push the Frigo58 SmartLift 2D at least so far in the trailer that the locking finger is in a breakhole WARNING: Severe injuries are possible due to a falling wall.
  • Page 26 Use the drain hole to mount / attach the end stop. LoadLok advises to use a M5 x 30 bolt. Optional mount the steel stopper as shown in the figure. The hole in the IsoLok track must be drilled. In total 3 holes must be drilled!
  • Page 27 16. Put the Frigo58 SmartLift 2D in horizontal position again 17. Adjust the middle trolley in the U-rail in such way that the wheels of the middle trolley touch the U-rail in a firmly manner.
  • Page 28 Frigo58 SmartLift 2D can be moved freely along the IsoLok track. 19. Unlock the ground stopper. 20. Set the Frigo58 SmartLift 2D in vertical position. page 28 of 42 Date : Jul-2024 Version : 0.5...

  • Page 29: Check The Functionality Of Frigo58 Smartlift 2D

    2. Open the levers. The rubber feet may not touch the floor. 3. Check if you must apply some force to close the Frigo58 SmartLift 2D. 4. Check if you can open the Frigo58 SmartLift 2D with closed levers. (You may not succeed!!)

  • Page 30: Adjust Spring Tension

    1. Open the Frigo58 SmartLift 2D now to approx. 45°. 2. Move Frigo58 SmartLift 2D with a sweep to the roof. 3. If the Frigo58 SmartLift 2D is not resting in a parallel position then: Remove the plastic cap on the back of the balancing device.
  • Page 31 9. Check if the Frigo58 SmartLift 2D does go smoothly when opening. If the Frigo58 SmartLift 2D “bangs” to the roof the tension is too tight. Loosen the bolts a bit. 10. Repeat steps 6 to 9, until the Frigo58 SmartLift 2D opens smoothly.

  • Page 32: Check The Break Functionality

    2D must grap in its locking. This area is about 20° from the horizontal and the vertical. 2. Lift the Frigo58 SmartLift 2D into such an angle that it is in the area which is coloured red. The break locks must be positioned in the middle of the breaking hole (as shown in red).
  • Page 33 4. If this is not the case bend the break lock until it does! WARNING: Check both sides! WARNING: If the functionality of the breaking locks cannot be assured: • Contact Loadlok immediately! • Do not deliver vehicle to the public road! Date : Jul-2024 page 33 of 42 Version : 0.5...

  • Page 34: Parking Assistant (Optional)

    6.4 PARKING ASSISTANT (OPTIONAL) If the Frigo58 SmartLift 2D will be longer stored on the roof, Loadlok offers a parking assistant which is easy to be attached on the balancer. Insert the parking assistant in the predefined hole. Adjust the wheel that it rests in the IsoLok track as shown in the picture.
  • Page 35 Tighten the bolts with an M8 allen Date : Jul-2024 page 35 of 42 Version : 0.5...

  • Page 36: Connecting The Built-In Fan

    6.5 CONNECTING THE BUILT-IN FAN 6.5.1 Without the power supply kit This slider is mounted by LoadLok, if a fan is built in the Frigo58 SmartLift 2D. The power to the fan is to be supplied via the IsoLok track.

  • Page 37: With The Power Supply Kit

    6.5.2 With the power supply kit WARNING: In the case of: • Possibility of short circuit Use the power supply kit! This slider must be mounted on the balancer after the Frigo58 SmartLift 2D door is set in its place according the instructions in paragraph “Mounting the track”.
  • Page 38 6. Connect the earthing to the right side. 7. Make sure the power supply is secured with a 10A fuse. page 38 of 42 Date : Jul-2024 Version : 0.5...

  • Page 39: Double Decking Systems And Frigo58 Smartlift 2D

    6.6 DOUBLE DECKING SYSTEMS AND FRIGO58 SMARTLIFT 2D In order to minimize the height loss, the double deck rail ends within the IsoLok track. This is shown in the figure here. The wheels on the balancer are extended as show in this figure.
  • Page 40 Drill extra mounting holes in the IsoLok track (red dots), if required. ATTENTION: Loadlok advises to bend the IsoLok track a bit open, for a better guidance of the balancer wheels! Sections are marked with an red circle in the picture above...

  • Page 41: Maintenance

    Mechanic according paragraph “Floorstopper recessed” If the Frigo58 SmartLift 2D is inspected on a regular basis on above mentioned inspection points the product lasts a lifetime. Date : Jul-2024 page 41 of 42 Version : 0.5...

  • Page 42: Document Information

    8 DOCUMENT INFORMATION Principal Contractor Digital file name LoadLok Nederland B.V. Foxiz BV Mounting Instructions Remarks, corrections or suggestions are welcomed by the technical department. page 42 of 42 Date : Jul-2024 Version : 0.5...
