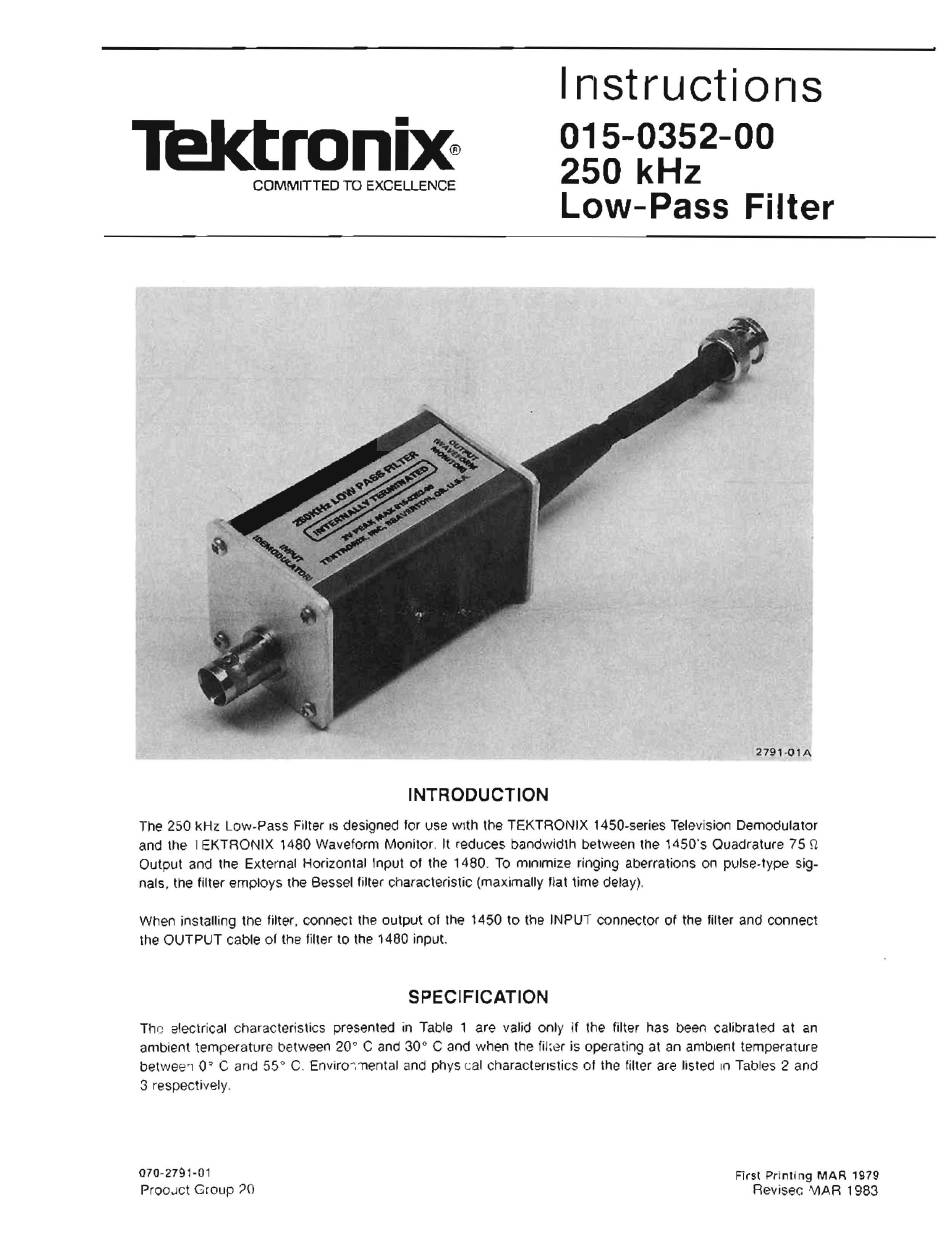

Tektronix 1450 Series Instructions Manual

lektron~
COMMITTED TO EXCELLENCE
INTRODUCTION
I rlstructi oris
015-0352-00
250 kHz
Low-Pass Filter
2791·01A
The 250 kHz Low-Pass Filter IS designed for use wIth the TEKTRONIX 1450-series Television Demodulator
and the I EKTRONIX 1480 Waveform Monitor. It reduces bandwidth between the 1450's Quadrature 75 r2
Output and the External Horizontal Input of the 1480. To minimize ringing aberrations on pulse-type sig-
nals, the filter employs the Bessel filter characteristic (maximally flat time delay).
When installing the filter, connect the output of the 1450 to the INPUT connector of the filler and connect
the OUTPUT cable of the filter to the
1480
input.
SPECIFICATION
Th e electrical characteristics presented in Table 1 are valid only if the filter has been calibrated at an
ambient temperature between 20° C and 30 Q C and when the fil;er is operating at an ambient temperature
betwee'l
0' C
and
55° C.
EnvirO .... 'T1ental and phys cal characteristics of the filter are listed In Tables
2 and
3
respectively.
070-2791-01
PrOOJct Group ?O
First Printing MAR 1979
ReviseC"v1AR 1983
