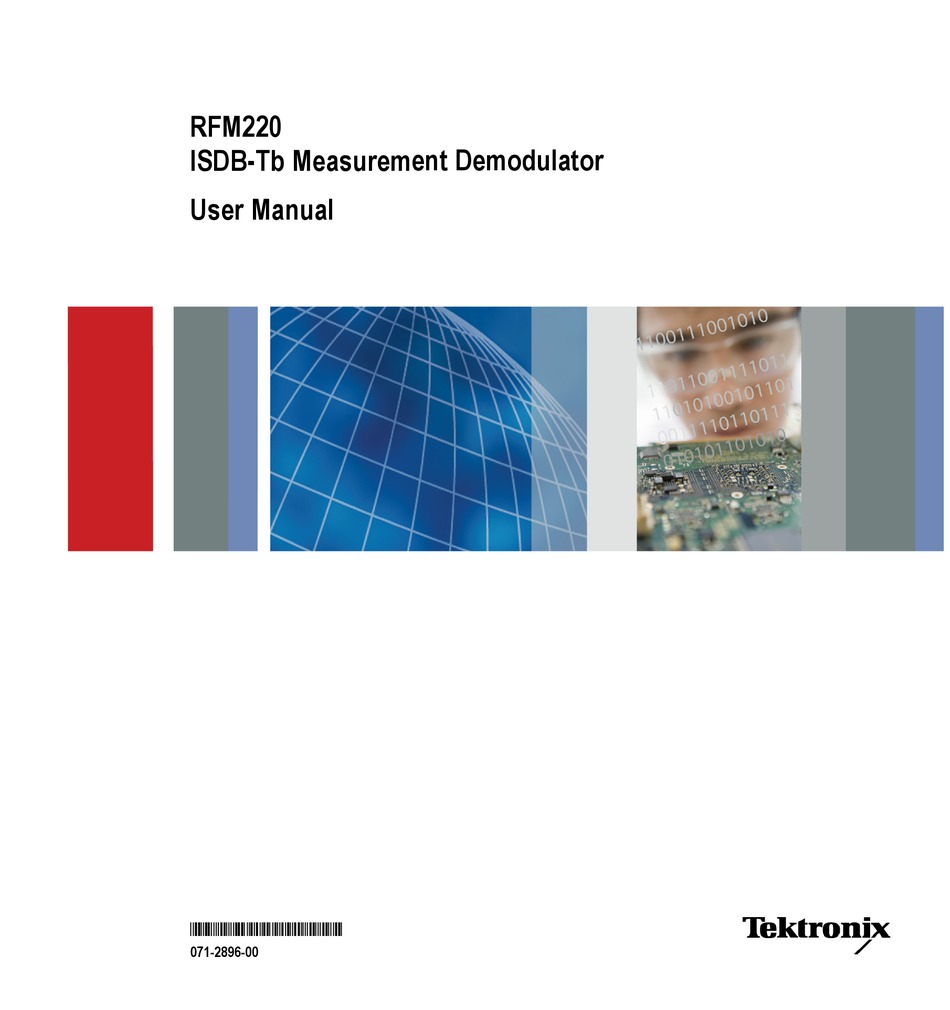

Page 1 RFM220 ISDB-Tb Measurement Demodulator User Manual *P071289600* 071-2896-00...
Page 3 RFM220 ISDB-Tb Measurement Demodulator User Manual This document supports software version 1.0. www.tektronix.com 071-2896-00...
Page 4 Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Speciﬁcations and price change privileges reserved.
Page 5 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
Page 6 In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration of the warranty period. If Tektronix is unable to provide a replacement that is free from defects in materials and workmanship within a reasonable time thereafter, Customer may terminate the license for this software product and return this software product and any associated materials for credit or refund.
Page 7 1. Transfer the Program to any person or organization outside of Customer or the corporation of which Customer is a part without the prior written consent of Tektronix, except in connection with the transfer of the equipment within which the programs are encoded or incorporated;...
Page 8 In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration of the warranty period. If Tektronix is unable to provide a replacement that is free from defects in materials and workmanship within a reasonable time thereafter, Customer may terminate the license for the Program and return...
Page 9 Tektronix. This Agreement and the license granted herein shall be governed by the laws of the state of Oregon. All questions regarding this Agreement or the license granted herein should be directed to the nearest Tektronix Sales Ofﬁce.
Page 11: Table Of Contents
Operating Basics....................RFM220 Instrument ..................
Page 12 Figure 4: Securing the instrument in an equipment rack........... Figure 5: RFM220 rear panel .................
Page 13: Figure 6: Enabling The Wcf Http And Non-Http Activation Features
Figure 53: HyperTerminal window showing the IP address in hex ........Figure 54: Enabling the WCF HTTP and Non-HTTP activation features ......RFM220 User Manual...
Page 14 Table 5: RFM220 Aggregator platform requirements ............ Table 6: RFM220 Client platform requirements ............
Page 15: General Safety Summary
Do not operate in wet/damp conditions. Do not operate in an explosive atmosphere. Keep product surfaces clean and dry. Provide proper ventilation. Refer to the manual's installation instructions for details on installing the product so it has proper ventilation. RFM220 User Manual...
Page 16 DANGER indicates an injury hazard immediately accessible as you read the marking. WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. The following symbol(s) may appear on the product: RFM220 User Manual...
Page 17: Compliance Information
Emissions which exceed the levels required by this standard may occur when this equipment is connected to a test object. For compliance with the EMC standards listed here, high quality shielded interface cables should be used. RFM220 User Manual...
Page 18 Conformity – EMC CISPR 11:2003. Radiated and Conducted Emissions, Group 1, Class A, in accordance with EN 61326-1:2006. Australia / New Zealand contact. Baker & McKenzie Level 27, AMP Centre 50 Bridge Street Sydney NSW 2000, Australia viii RFM220 User Manual...
Page 19: Safety Compliance
Pollution Degree 4. Pollution that generates persistent conductivity through conductive dust, rain, or snow. Typical outdoor locations. Pollution Degree Pollution Degree 2 (as deﬁned in IEC 61010-1). Note: Rated for indoor use only. RFM220 User Manual...
Page 20 Measurement Category II. For measurements performed on circuits directly connected to the low-voltage installation. Measurement Category I. For measurements performed on circuits not directly connected to MAINS. Overvoltage Category Overvoltage Category II (as deﬁned in IEC 61010-1) RFM220 User Manual...
Page 21: Environmental Considerations
2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Support/Service section of the Tektronix Web site (www.tektronix.com). Restriction of This product is classiﬁed as Monitoring and Control equipment, and is outside the scope of the 2002/95/EC RoHS Directive.
Page 22 Compliance Information RFM220 User Manual...
Page 23: Preface
This document uses the following naming conventions when referring to the different components of the RFM220 system: RFM220 ISDB-Tb Measurement Demodulator. This is the hardware component of the system and is referred to as either “RFM220 instrument” or just “instrument.” RFM220 Aggregator application. This is the software application that collects data from monitored RFM220 instruments and is referred to as either “RFM220 Aggregator”...
Page 24: Related Products
An in-depth, real-time MPEG analysis option allows diagnostics to be performed on live ATSC signals without having to use deferred-time analysis of captured streams. Refer to the RFM300 DTV Monitor Quick Start User Manual, Tektronix part number 071-2700-XX. RFM220 User Manual...
Page 25: Firmware And Software Upgrades
Tektronix Web site when problems are ﬁxed or when new product features are introduced. (See page 51, Upgrading Instrument Firmware.) To check for ﬁrmware or software upgrades, go to the Tektronix Web site (www.tektronix.com/products/video-test). Conventions Used in This Manual The following icons are used throughout this manual.
Page 26 Preface RFM220 User Manual...
Page 27: Getting Started
The RFM220 demodulator can measure MER in real time, commonly considered a key ﬁgure for qualifying a transmitting system. The input to the RFM220 demodulator can be an RF signal or an ASI stream. The software interface displays measurement traces, signal spectrum, and constellation and lets you conﬁgure and control the instrument using a local or remote...
Page 28 Carrier Frequency Offset (CFO) Coarse MER Fine MER per Layer BER, PER TS monitoring possible when the RFM220 output signal is fed to a TS analyzer such as the Tektronix MTM400A DTV Monitor Measurement data Recovery transmission mode (from TMCC)
Page 29: Figure 2: Rfm220 System Block Diagram
RFM220 Client application must be connected to the same Ethernet network as the PC or server running the RFM220 Aggregator application. The RFM220 system can be used as a standalone RF monitoring solution or used in conjunction with a Tektronix MTM400A DTV monitor to provide combined RF and TS monitoring.
Page 30 RFM220 instruments and makes the data available to RFM220 Clients that connect to the Aggregator. The RFM220 Aggregator can reside on a PC or on a network server. The typical RFM220 system installation will have the RFM220 Aggregator installed on a network server, where it can be accessed by remote PCs with the RFM220 Client application installed.
Page 31: Table 1: Supported Isdb-Tb Modes
Although some of the administrative functions listed below can be performed by any user, it is recommended that the person who is assigned the role of RFM220 system administrator be the one responsible for these tasks. Conﬁguring the RFM220 Aggregator and making sure the correct RFM220 Client software is installed on all user PCs.
Page 32: Before Installation
(See page 8, Hardware Installation.) 2. Install the RFM220 software. (See page 12, Software Installation.) 3. For each RFM220 instrument that you intend to monitor, reset the instrument settings back to the factory-default state and conﬁgure the network settings. (See page 18, Conﬁguring the Network Settings of a RFM220 Instrument.) 4.
Page 33: Operating Considerations
RFM220 Client. Ethernet Network The RFM220 instruments that will be monitored and the PCs running the RFM220 Client application need to be connected to an Ethernet network which has access to the PC or server running the RFM220 Aggregator application.
Page 34: Hardware Installation
Getting Started Hardware Installation Air Flow The RFM220 demodulator chassis is cooled by drawing air in from the left side of the instrument and exhausting it out the right side of the instrument. (See Figure 3.) CAUTION. To prevent damage to the instrument from overheating, do not block the left or right side of the instrument.
Page 35: Figure 5: Rfm220 Rear Panel
Figure 5: RFM220 rear panel After you install the RFM220 demodulator in the desired location, connect the power cord that was provided with the instrument to the power connector on the rear panel. Connect the power cord plug to a properly grounded electrical outlet.
Page 36: Table 4: External Connectors
Connector: Sub-D9 female Baud rate: 57600 bps Standard: RS-232 Other: No parity, 8 bits data, 1 bit stop This connector is not used. 1 PPS In CAUTION. Do not connect a signal cable to the 1 PPS In connector. RFM220 User Manual...
Page 37: Powering The Instrument On And Off
The typical RFM220 system will have the RFM220 Aggregator installed on a network server where it can communicate with RFM220 instruments on the network and be accessed by network PCs that have the RFM220 Client application installed. In this case, the network server that runs the RFM220 Aggregator must have two network ports that are dedicated for RFM220 system communications: Control port.
Page 38: Software Installation
PCs connected to the same network as the server running the RFM220 Aggregator. RFM220 Device Setup. This utility allows the user to set the IP address parameters for a RFM220 instrument. This utility is installed as part of the RFM220 Aggregator software.
Page 39: Table 5: Rfm220 Aggregator Platform Requirements
Getting Started Computer To communicate with the RFM220 instrument, you need to install the RFM220 software on a client PC or server. The following table lists the Requirements required platform requirements. Table 5: RFM220 Aggregator platform requirements Characteristic Description Processor Minimum: Commonly available dual-core system;...
Page 40 Requirements Microsoft .NET Framework 3.5 feature requirements. If the RFM220 software is installed on a computer running Windows 7, the RFM220 software will not operate properly (for example, trend graphs will not be displayed) unless the WCF HTTP and Non-HTTP Activation features in the Microsoft .NET Framework 3.5 software are enabled.
Page 41: Figure 7: Initial Rfm220 Installshield Display
Perform the following procedure to install the RFM220 software on your client PC: Software 1. Insert the RFM220 Software and Documentation CD into the CD drive of your client PC. 2. When the CD browser opens, click the Install Software button. Windows Explorer opens the directory containing the software installation ﬁles...
Page 42: Figure 8: Selecting The Applications To Install
RFM220 Aggregator application, select only RFM220 Aggregator. To install the RFM220 software on a PC that will be used as a client to access the RFM220 Aggregator application located on another PC or server, select only RFM220 Client.
Page 43: Figure 9: Installing The Software
10. As the software installs, a progress bar shows the progress of the installation. Figure 9: Installing the software 11. When the software installation is complete, click Finish to exit the InstallShield Wizard. Figure 10: Final InstallShield screen RFM220 User Manual...
Page 44: Conﬁguration
If necessary, contact your local network administrator for help in entering the correct IP address parameters. If you lose or cannot remember the existing IP address of a RFM220 instrument, you can recover the IP address using an RS-232 command. (See page 77, Recovering the IP Address.)
Page 45 For this procedure, you will need a PC or laptop that is not connected to your local network. 1. Install the RFM220 Aggregator software on a PC that is not connected to your local network. 2. Connect an Ethernet cable between the Gigabit port on the RFM220 instrument and the Ethernet port on the PC.
Page 46: Figure 12: Rfm220 Device Setup Dialog Showing Initial Connection
Getting Started 7. Start the RFM220 Device Setup utility as follows for the operating system on your PC or server: Windows 7 systems. Right-click the RFM220DeviceSetup.exe ﬁle and select Run as Administrator. Windows XP systems. Double-click the RFM220DeviceSetup.exe ﬁle. 8. In the RFM220 Device Setup dialog, enter 192.168.0.209 in the Device IP Address box, and then click Connect.
Page 47 Getting Started 11. If you will be using an Network Management System (NMS) to monitor SNMP traps sent by the RFM220 system, perform the following steps. Otherwise, leave these ﬁelds blank and go to step 12. a. Enter the IP address of the PC or server hosting the NMS system in the New secondary trap box.
Page 48 Aggregator at a time. In the case where more than one Aggregator has connected to an RFM220 instrument, only the last Aggregator to connect to the instrument will receive SNMP trap messages from the instrument.
Page 49: Figure 13: Structure Of The Conﬁguration.xml File
NOTE. There is a separate DiagnosticLog setting in the Devices section of the ﬁle for limiting which event messages appear in the RFM220 Client display and in the log ﬁle for each monitored RFM220 instrument. Devices contains the communication settings for each of the RFM220 instruments that will be monitored by the RFM220 Aggregator.
Page 50 "localhost" for this parameter instead of the IP address. However, entering localhost limits access to the RFM220 Aggregator to only the RFM220 Clients that are installed on that PC or server. It is recommended that you use the IP address instead of localhost since that will allow RFM220 Clients to access the RFM220 Aggregator from PCs other than the one hosting the Aggregator.
Page 51 NOTE. The RFM220 Aggregator supports two trap destinations. The ﬁrst destination is always set by the RFM220 Aggregator to itself so that it can record all alarms. The second destination is set for any other listener, such as an NMS (Network Management System), that needs to monitor alarms raised by the RFM220 instruments.
Page 52 Change the GetSetUDPPort parameter to match the port number on the Aggregator PC or server that will be used for UDP communications with the RFM220 Clients. You should change this value only of your PC or server is already using port 161 for communication with other devices.
Page 53 Entering the value All enables logging of all messages. Error Info Debug Verbose b. Change the DiagnosticLog MaxFileSizeInMB parameter value as needed to increase or decrease the maximum ﬁle size in megabytes for the Aggregator.Log ﬁle. RFM220 User Manual...
Page 54 Getting Started 6. Edit the Devices parameters, which are used to govern the communications for each of the RFM220 instruments that will be monitored by the RFM220 Aggregator. a. Do not change the Device Type parameter value from RFM220. This parameter is for future use.
Page 55 Device Event log. Change the DiagnosticLog Level parameter value to control the amount of logging that occurs for the RFM220 instrument. The possible values for this parameter are listed below. When this parameter is set to a value other than Off, the selected message level and the levels that are above the selected level will be logged.
Page 56: Figure 14: Partial Conﬁguration.xml File Showing The File Structure For Monitoring Two Rfm220 Instruments
Getting Started 7. If you want the RFM220 Aggregator to monitor more than one RFM220 instrument at a time, edit the Conﬁguration.xml ﬁle as follows: a. Duplicate the Device Type parameters in the Devices section of the Conﬁguration.xml for each RFM220 instrument you want to monitor.
Page 57: Figure 15: Windows Firewall Dialog
RFM220 Aggregator application and the communication ports that you conﬁgured in the Conﬁguration.xml ﬁle are set as exceptions in the Windows Firewall settings of the PC or server running the RFM220 software. Perform the following steps to set the Windows ﬁrewall exceptions: 1.
Page 58: Figure 16: Adding The Rfm220 Aggregator To The Windows Firewall
4. Add the Client Communications port to the ﬁrewall exceptions: a. In the Windows Firewall dialog, click Add Port. b. In the Add a Port dialog, enter RFM220 Aggregator in the Name box. c. In the Port number box, enter the port number you entered in the Client Communication section of the Conﬁguration.xml ﬁle.
Page 59: Figure 18: Adding The Client Communications Port To The Windows Firewall
5. Add the SNMP Conﬁguration ports to the ﬁrewall exceptions: a. In the Windows Firewall dialog, click Add Port. b. In the Add a Port dialog, enter RFM220 Aggregator in the Name box. c. In the Port number box, enter the AggregatorTrapDestination Port number you entered in the SNMP Conﬁguration section of the...
Page 60: Starting The Rfm220 Software
Getting Started Starting the RFM220 Software Starting the RFM220 software is a two step process. You must ﬁrst start the RFM220 Aggregator application and then start the RFM220 Client application. CAUTION. The RFM220 instrument must be powered on and connected to the same network as the PC/server on which the RFM220 Aggregator and Client applications are installed.
Page 61: Figure 19: Setting Full Access Privileges
Conﬁgure the Window Firewall to support network communications. (See page 31, Conﬁguring the Windows Firewall.) 2. Start the RFM220 Aggregator as follows for the operating system on your PC or server: Windows 7 systems. Right-click the RFM220 Aggregator icon on your desktop and select Run as Administrator.
Page 62 To prevent communication problems with the RFM220 system, wait until you see the message “Aggregator is ready” in the Aggregator window before you use the RFM220 Client to connect to the Aggregator. During the initialization process, the Aggregator sets trap destinations, disables some alarms, and establishes communications with each RFM220 instrument that the Aggregator is conﬁgured to monitor.
Page 63: Figure 20: Rfm220 Aggregator Window
When the RFM220 Aggregator window is selected on the PC or server desktop, pressing Ctrl-C will close the RFM220 Aggregator application. To ensure that no trend data is lost, deselect or minimize the RFM220 Aggregator window after the application initializes.
Page 64: Figure 21: Initial Rfm220 Client Login Window
Aggregator. Perform the following steps to start the Client RFM220 Client application: 1. On the PC where you installed the application, start the RFM220 Client as follows for the operating system on your PC or server: Windows 7 systems. Right-click the RFM220 Client icon on your desktop and select Run as Administrator.
Page 65: Figure 22: Rfm220 Client Login Window Showing Two Monitored Devices
RFM220 Aggregator and RFM220 Client are all compatible. If they are not compatible, an error message will be displayed and you will not be able to connect to the RFM220 instrument until the software or instrument ﬁrmware is upgraded to a compatible version.
Page 66: Figure 23: Initial Rfm220 Client Application Window
Metrics pane grayed out. This indicates the default state of all tests being disabled. The RFM220 Client will show log events and metrics data after tests are enabled and alarms are conﬁgured. (See page 60, Alarm Conﬁguration.) Figure 23: Initial RFM220 Client application window...
Page 67: Operating Basics
Network installation. If you are operating the RFM220 system on a local Ethernet network, the RFM220 instrument(s) to be monitored must be Considerations connected to the same network as the PC or server hosting the RFM220 Aggregator application. Non-network installation. If you are operating the RFM220 system without an...
Page 68: Figure 24: Front Panel Led Indicators
Signal connectors. All of the signal connectors are located on the rear panel. (See page 9, Connecting Signals to the Instrument.) CAUTION. To prevent operating problems, do not connect a signal cable to the 1 PPS In connector. Figure 25: RFM220 rear panel RFM220 User Manual...
Page 69: Rfm220 Aggregator
“SNMPConﬁguration” section of ﬁle to enter the “Control” IP address of the server. If you do not have a local network, the RFM220 Aggregator and Client applications must be installed on the same PC or server, and the Ethernet port on the RFM220 instrument must be directly connected to the Ethernet port on the PC or server hosting the RFM220 applications.
Page 70 NOTE. In the case where more than one Aggregator has connected to an RFM220 instrument, only the last Aggregator to connect to the instrument will receive SNMP trap messages from the instrument. The Aggregator requires access to the Conﬁguration.xml ﬁle in order to operate.
Page 71: Figure 26: Rfm220 Aggregator Application Window
Operating Basics The RFM220 Aggregator must be started and fully initialized before a RFM220 Client can connect and view valid data from a monitored RFM220 instrument. The Aggregator initialization process takes approximately 70 seconds for each instrument that the Aggregator will monitor. For example, if the Aggregator is conﬁgured to monitor 10 instruments, it will take...
Page 72 Operating Basics The RFM220 Aggregator maintains all of the log and settings ﬁles in the following directories on the PC or server where the Aggregator is installed: Windows 7: C:\Users\<user ID>\AppData\Local\Tektronix\RFM220\RFM220 Aggregator\Logs C:\Users\<user ID>\AppData\Local\Tektronix\RFM220\RFM220 Aggregator\Settings Windows XP systems: C:\Documents and Settings\<user ID>\Local Settings\Application Data\Tektronix\RFM220\RFM220 Aggregator\Logs C:\Documents and Settings\<user ID>\Local Settings\Application...
Page 73: Rfm220 Device Setup
Operating Basics RFM220 Device Setup The RFM220 Device Setup utility dialog shown below is used by the RFM220 system administrator to perform the following tasks: Conﬁguring the network settings of RFM220 instruments so they can operate on the local network Conﬁguring a secondary trap destination for use with an NMS system...
Page 74 RF Lock in the Status bar will blink red and the Metrics pane will be grayed to indicate that the data is no longer valid. All trend data and log entries for the RFM220 instrument is lost when the instrument is removed from the Conﬁguration.xml ﬁle. You should back up the following ﬁles before you perform instrument maintenance:...
Page 75 Aggregator to start monitoring the instrument. 1. On the PC or server where the RFM220 Aggregator is installed, locate the RFM220 Device Setup utility that was installed in the following directory: Windows 7 systems: C:\Program Files (x86)\Tektronix\RFM220\RFM220 Aggregator\RFM220DeviceSetup.exe...
Page 76: Figure 28: Rfm220 Device Setup Dialog
Save new second trap settings. If you are not using an NMS system, leave the secondary trap ﬁelds blank. 7. Click Reset to default settings to reset the RFM220 instrument back to the default settings.
Page 77 Operating Basics 9. Click Disconnect to disconnect the RFM220 Device Setup utility from the RFM220 instrument. 10. If you are conﬁguring multiple RFM220 instruments, repeat steps 3 to 9for each instrument. 11. Close the RFM220 Device Setup utility dialog. Resetting Instruments...
Page 78: Rfm220 Client
Aggregators are installed, you can use the RFM220 Client to access any Aggregator running on the network. The RFM220 Client can connect to only one Aggregator at a time and can view data from only one monitored RFM220 instrument at a time.
Page 79: Figure 29: Setting The Windows 7 Visual Effects
Operating Basics Figure 29: Setting the Windows 7 visual effects Windows XP systems. On Windows XP systems, the RFM220 software is more responsive when the display effect settings are changed as follows: 1. Use the Start menu to open the Control Panel.
Page 80 To operate the RFM220 software on Windows 7 systems, the user who has logged on must have Full Access privileges. Each user type has a different role for supporting and using the RFM220 system. Some functions of the Client application, such as using the Conﬁguration menu, are only available to a user logged in as the Administrator.
Page 81: Table 7: Error Indicator Color Codes
Conﬁguration.xml ﬁle. All of the times that are shown in the RFM220 Client displays (for example, in the event log entries and in the Status bar), are the times reported by the RFM220 instrument in terms of the time on the RFM220 Client computer, including taking into account the local time zone and daylight savings time settings.
Page 82: Figure 31: Rfm220 Client Window Elements
Operating Basics Display Elements The RFM220 Client window has the following primary display elements: Title bar. Lists the name of the product: Tektronix RFM220. Menu bar. Provides access to the various menu commands. Click on a menu name to access the commands under that menu. The menu commands are described on the following pages.
Page 83: Figure 32: Rfm220 Client Login Window
RFM220 instrument that is being monitored by the Aggregator to which you are connected or to connect to a different Aggegator that is running on the network. (See page 38, Starting the RFM220 Client.) Figure 32: RFM220 Client login window Exit.
Page 84: Figure 33: Edit Settings Dialog
Conﬁguration menu. (See page 5, User Proﬁles and Roles.) Edit Settings. Displays the Edit Settings dialog shown below. Use this dialog to conﬁgure the channel plan for your input signal. Figure 33: Edit Settings dialog RFM220 User Manual...
Page 85 3150 kHz. Conﬁgure which signal will be output from the ASI output connector of the RFM220 instrument. You can select either the ASI input signal or the RF demodulated signal. After you make any desired changes, click Apply to apply the changes. Click OK to apply the changes and close the dialog box.
Page 86: Figure 34: Alarm Conﬁguration Dialog
ﬂuctuations. If the error band is too narrow and the signal has a lot of ﬂuctuations, a large number of SNMP traps will be sent to the Aggregator. Figure 34: Alarm Conﬁguration dialog RFM220 User Manual...
Page 87: Figure 35: Change Password Dialog
Click OK to save the new password and close the Change Password dialog. About Menu Displays the About window shown below, which contains information about the RFM220 hardware and software versions. Figure 36: About window RFM220 User Manual...
Page 88: Figure 37: Status Bar
Aggregator in the RFM220 Client Login dialog. Device. The device section lists the following information: IP. This is the IP address of the RFM220 instrument to which you are connected. Date & Time. This is the current date and time of the RFM220 instrument to which you are connected.
Page 89: Alarm Thresholds
Operating Basics Alarm Thresholds Select Alarm Conﬁguration from the Conﬁguration menu in the RFM220 Client, the Alarm Conﬁguration dialog opens as shown below. Use this dialog to enable/disable tests and set alarm measurement parameters. NOTE. When you enable/disable tests or change measurement thresholds, information messages are entered in the Device Event log.
Page 90 The Delay Proﬁle alarm is a software alarm, unlike the other alarms which are SNMP alarms. Therefore, alarms generated by the Delay Proﬁle alarm will not be sent to the secondary trap destination that is intended for your NMS System. RFM220 User Manual...
Page 91: Table 8: Alarm Measurement Thresholds
28 dB Delay proﬁle echo -25 dB -25 dB -25 dB 0 dB Compensating for an external attenuator. If your input signal has an external attenuator, you need to adjust the alarm thresholds to compensate for the attenuator. RFM220 User Manual...
Page 92: Graphs
NOTE. The performance of the RFM220 Aggregator diminishes as more RFM220 Clients are connected and as more graphs are selected to be displayed by the RFM220 Clients. For best system performance, install the Aggregator and Client applications on separate computers and limit to six, the number of graphs that each RFM220 Client opens at a time.
Page 93: Figure 40: Add Graph Menu Selections
NOTE. As you select more graphs to display, the performance of the RFM220 software will diminish. Figure 40: Add Graph menu selections Trend graphs. All of the graphs in the Add Graph list that appear above the graph list separator are trend graphs.
Page 94 If the RF input signal to the RFM220 instrument is not proper or if RF lock to the signal is lost, the Constellation graph will not show data and a “Loading Data”...
Page 95 By default, all plot lines are shown. Draw maximum. Draws a plot line for the maximum measurement. Draw average. Draws a plot line for the average measurement. Draw minimum. Draws a plot line for the minimum measurement. RFM220 User Manual...
Page 96: Event Logs
CAUTION. To prevent the loss of data after the Aggregator has been shut down, the RFM220 system administrator needs to ensure that no log ﬁles are present in the Logs folder before the Aggregator is restarted. Saving log ﬁles. To help solve a problem with your RFM220 system, Tektronix may request a copy of your log ﬁles.
Page 97: Figure 41: Rfm220 Client Logs Pane
The timestamp for these Synchronized messages is the time the error was detected by the Aggregator, not the time the error occurred. Instrument reset. When a RFM220 instrument is reset, the alarm state for the SNR test is set to true. This is because during the instrument reset, the SNR value is set to 0.
Page 98: Device Metrics
The Metrics pane provides two tabs to display various metrics for the signal and instrument being monitored: Metrics and Device Information. Metrics Tab Select the Metrics tab to display metrics for the input signal. Figure 42: Metrics display RFM220 User Manual...
Page 99 Operating Basics Device Information Tab Select the Metrics tab to display metrics for the RFM220 instrument that is being monitored. Figure 43: Device Information metrics display LED Indicators When SNMP alarms from a RFM220 instrument are sent to the RFM220 Aggregator, the LED indicators in the Metrics pane will change color to match the severity level of the detected error.
Page 100 Operating Basics RFM220 User Manual...
Page 101: Reference
Figure 44: Combined RF and TS monitoring If you connect both the RF and ASI inputs to the RFM220 demodulator, you can then use the RFM220 to select which signal source to output to an MTM400A or any other device that requires ASI input. This enables monitoring before and after modulation.
Page 102: Frequency Shift Measurement
ISDB-Tb monitoring. Frequency Shift Measurement The RFM220 demodulator is able to measure the frequency shift of the input signal. To make this measurement, you must connect a 10 MHz reference signal to both the modulator equipment and to the 10 MHz In connector on the RFM220 instrument.
Page 103: Recovering The Ip Address
Reference Recovering the IP Address If you lose or cannot remember the IP address of the RFM220 instrument, use the procedure in this section to recover the address. Required Equipment You will need the equipment listed below to recover the IP address:...
Page 104 Enter the connection name you want to use and then click OK. The Connect To dialog box appears with the connection name you entered. In the example shown below, RFM220 – 150 was entered as the connection name.
Page 105 6. In the COM port properties dialog box, enter the information shown below and then click OK. Figure 49: Entering the COM port properties for HyperTerminal 7. Check that the status bar at the bottom of the HyperTerminal window now displays Connected. RFM220 User Manual...
Page 106 CAUTION. If the Status Bar displays Auto Detect, be sure to change the mode as described below. The RFM220 instrument does not support the auto detect mode. a. In the HyperTerminal window, select Properties from the File menu.
Page 107 Figure 51: Conﬁguring the ASCII setup for HyperTerminal e. Verify that the status bar in the HyperTerminal window now shows the ANSIW emulation mode. Figure 52: HyperTerminal window showing the ANSIW emulation mode RFM220 User Manual...
Page 108 This command must be entered in upper case. 11. As shown in the example below, the HyperTerminal application returns the IP address of the RFM220 instrument in hex. The hex code is eight characters long and is between the two lines shown below.
Page 109: Preventative Maintenance
A swab is useful for cleaning in narrow spaces around the connectors. Do not use abrasive compounds on any part of the unit. Make sure that the air intake area on the left side of the instrument is clear of any obstructions. RFM220 User Manual...
Page 110: Repacking For Shipment
Reference Repacking for Shipment If an instrument is to be shipped to a Tektronix ﬁeld ofﬁce for repair, attach a tag to the instrument showing the following: Owner's name and address Serial number Description of the problem(s) encountered and/or service required.
Page 111: Troubleshooting
2. Remove the RFM220 instrument for maintenance. (See page 48, Performing RFM220 System Maintenance.) 3. Use the RFM220 Device Setup utility to ﬁrst reset the instrument to the default settings, and then to reset the instrument. 4. Return the instrument to the RFM220 system. (See page 48, Performing RFM220 System Maintenance.)
Page 112 Conﬁguration.xml ﬁle to change the communication ports to an unused port number. 1. On the PC or server that is hosting the RFM220 Aggregator, open a command prompt window and enter the following command to view a list of the ports on the PC that are currently in use.
Page 113 Cannot access the RFM220 applications. To operate the RFM220 software on Windows 7 systems, observe the following: Install the RFM220 software when you are logged on to the computer with administrative privileges. Ensure that the user who is logged onto the computer has Full Access privileges for the RFM220 applications.
Page 114 Reference Trend graphs are not displayed. If trend graphs are not being displayed by the RFM220 Client on a Windows 7 system, the WCF HTTP and Non-HTTP Activation features in the Microsoft .NET Framework 3.5 software may not be enabled. In this case, open the Windows Features dialog and verify that the features are checked as shown below.
Page 115 RF Event log, 70 instrument, 9 RFM220 Aggregator, Menus, conﬁguration, 22 conﬁguration menu, 58 RFM220 Device Setup utility, 47, device menu, 57 Date and time displays, 55 Microsoft .NET Framework 3.5 Device Event log, 70 RFM220 system maintenance, 48 feature requirements, 14...
Page 116 Software upgrade, xv running the RFM220 User proﬁles, Client, 38 Standard accessories, 6 roles, 5 Status bar, 62 running the RFM220 Device User types, 40, 54 Setup utility, 20, 49 Supported ISDB-Tb modes, 5 Synchronizing alarms, 73 software installation System maintenance, 48...
