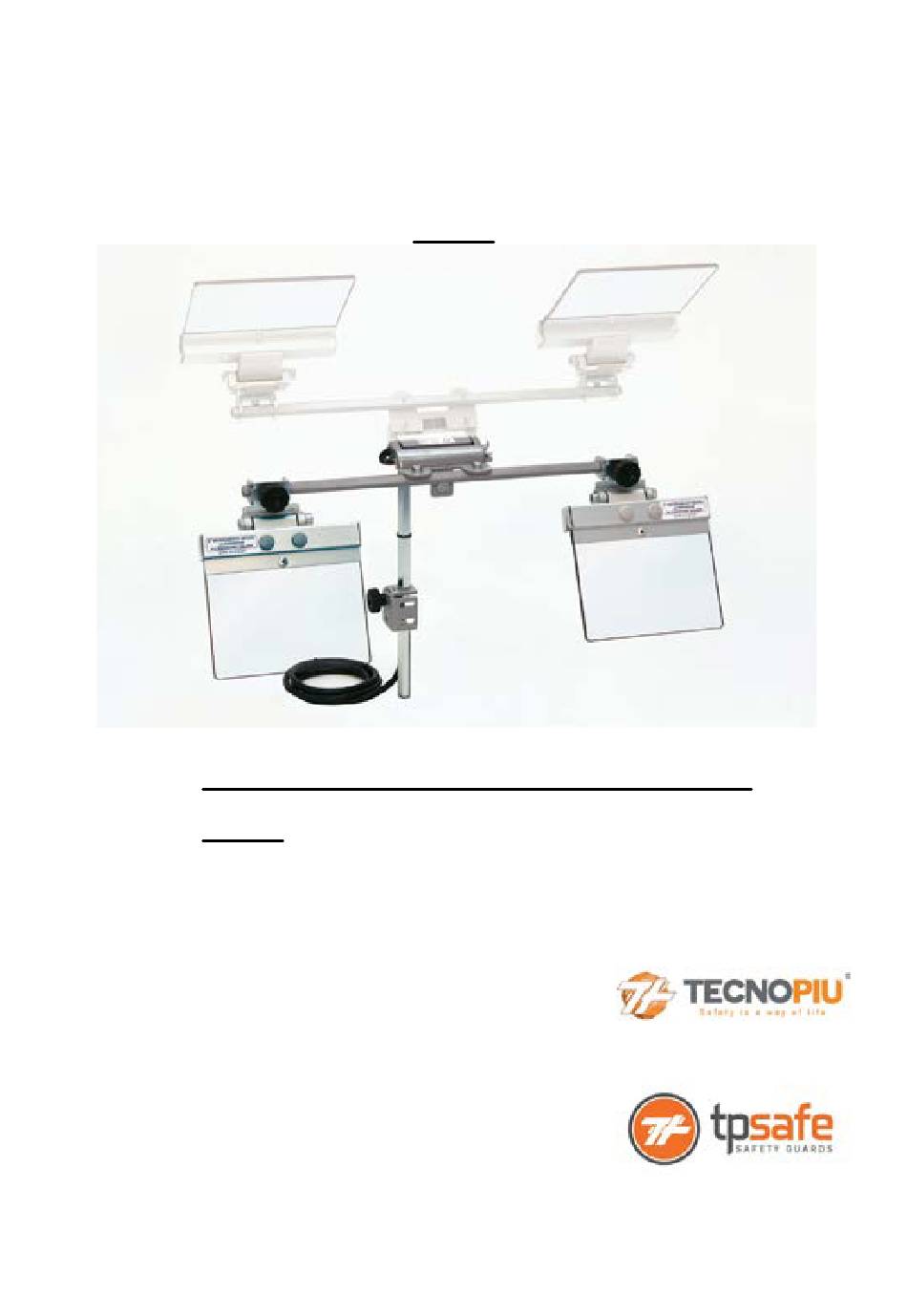

- Page 1 INSTRUCTION MANUAL Original instructions in Italian PMA 11 Designation: GUARD FOR GRINDING AND SHARPENING MACHINE Model: PMA 11 Tecno Più Srl Via Tempio Malatestiano, 21 47921 Rimini (RN) Tel. +39 0721 476381 website: www.tecnopiu.it...
-
Page 2: Table Of Contents
TABLE OF CONTENTS HOW TO CONSULT THE INSTRUCTION MANUAL HOW TO USE THE INSTRUCTION MANUAL 0.2.1 PURPOSE OF THE INSTRUCTION MANUAL 0.2.2 HOW TO STORE THE INSTRUCTION MANUAL 0.2.3 INSTRUCTION MANUAL UPDATE GLOSSARY SAFETY DECALS 0.4.1 HAZARD PICTOGRAMS 0.4.2 PROHIBITION PICTOGRAMS 0.4.3 MANDATORY PICTOGRAMS GENERAL SAFETY WARNINGS... - Page 3 TABLE OF CONTENTS DECOMMISSIONING WASTE DISPOSAL AND PACKAGING SPARE PARTS AND SERVICE Rev. 01 PMA 11 GUARD FOR GRINDING AND SHARPENING MACHINE p. I-3...
-
Page 4: How To Consult The Instruction Manual
0 - INTRODUCTION HOW TO CONSULT THE INSTRUCTION MANUAL This instruction manual consists of: • COVER WITH SAFETY PART IDENTIFICATION • TABLE OF CONTENTS • INSTRUCTIONS AND/OR NOTES ON THE SAFETY PART • ANNEXES Consult the COVER to find the safety part model covered in the manual and in your possession. By consulting the TABLE OF CONTENTS, it is possible to find the CHAPTER and PARAGRAPH under which all the notes relating to a particular topic are listed. -
Page 5: How To Use The Instruction Manual
0 - INTRODUCTION HOW TO USE THE INSTRUCTION MANUAL 0.2.1 PURPOSE OF THE INSTRUCTION MANUAL This INSTRUCTION MANUAL constitutes the guide to the INSTALLATION, USE, MAINTENANCE and DE- COMMISSIONING of the safety component in question. It is an integral part of the safety part and provides all the necessary information for: •... -
Page 6: Glossary
0 - INTRODUCTION GLOSSARY • Danger Potential source of damage. • Hazard zone Any zone inside and/or near a machine in which the presence of an exposed person poses a risk to that person’s health and safety. • Exposed person Any person who is wholly or partially in a hazardous zone. -
Page 7: Safety Decals
0 - INTRODUCTION • Interlocked guard Guard associated to an interlocking device that guarantees that: - The hazardous operations of the machine "affected" by the guard can not be carried out until the guard has been closed; - If the guard is opened during hazardous machine operations, a stop command is given; - Closing the guard permits hazardous machine operations "affected"... -
Page 8: Hazard Pictograms
0 - INTRODUCTION 0.4.1 HAZARD PICTOGRAMS SYM- SYM- DESCRIPTION DESCRIPTION BOLS BOLS General hazard. Danger of shearing upper limbs. Electrical hazard. Danger of moving parts. Danger of crushing upper and lower Danger of entanglement and dragging. limbs. Danger of crushing upper limbs. 0.4.2 PROHIBITION PICTOGRAMS SYM-... -
Page 9: General Safety Warnings
0 - INTRODUCTION GENERAL SAFETY WARNINGS Please read this manual carefully before commissioning, operating, maintaining or oth- erwise working on the safety component. • Personnel involved in the use and maintenance of the safety component must wear clothing that is appropriate for the working environment and the situation in which they find themselves;... -
Page 10: Limitations And Liability
0 - INTRODUCTION LIMITATIONS AND LIABILITY Any operation NOT explicitly described or NOT explicitly permitted by this manual is strictly forbidden. No liability, civil, criminal or otherwise, can be attributed to its manufacturer in the event of an accident occurring due to failure to comply with safety regulations. Whoever purchases and/or gives or receives such equipment without acknowledging the validity of the preceding clauses shall immediately renounce the use of such equipment, otherwise the preceding clauses shall be deemed to be explicitly and irrevocably accepted by the mere switching on and use of the equip-... -
Page 11: Manufacturer's Identification Data
1 - SAFETY PART INFORMATION MANUFACTURER'S IDENTIFICATION DATA COMPANY NAME: TECNO PIÙ S.r.l. Registered office: Via Tempio Malatestiano, 21 47921 Rimini (RN) – Italy Offices and factory: Via Pio la Torre, 5 61010 Tavullia (PU) – Italy +39 0721 476381 E-mail info@tecnopiu.it Website:... - Page 12 1 - SAFETY PART INFORMATION Drawing 1 Steel anchor bracket Adjustable support arms Screen rotation hinge with integrated mi- croswitch - No. 2 NC contacts Articulated clamp for horizontal and vertical screen adjustment Screen support profile Plastic screen CODE PMA 11 PMA 11/112 PMA 11/216 The safety component has been designed and built to work in a professional environment...
-
Page 13: Reasonably Foreseeable Improper Use
2 - SAFETY REASONABLY FORESEEABLE IMPROPER USE Reasonably foreseeable misuse includes all uses not explicitly mentioned in this manual, in particular: • Use of the safety component in a non-professional environment or by non-professional personnel; • Use of the safety component by unauthorised and untrained personnel; •... -
Page 14: Microswitches
2 - SAFETY 2.1.1 MICROSWITCHES Microswitches are the devices that monitor the opening and closing status of mobile guards. They are interlocked to the control circuit that manages their safety functions. The mobile guard installed is equipped with a safety microswitch that stops the machine if it is opened during the operating cycle, not allowing it to restart as long as the guard remains open and until the circuit is reset by the relevant procedure. -
Page 15: Copy Of The Declaration Of Conformity
2 - SAFETY COPY OF THE DECLARATION OF CONFORMITY Below is a copy of the Declaration of Conformity. The original copy accompanies the safety component and is filed with the manufacturer. DICHIARAZIONE DI CONFORMITÀ DECLARATION OF CONFORMITY DÉCLARATION DE CONFORMITÉ DECLARACIÓN DE CONFORMIDAD KONFORMITÄTSERKLÄRUNG ДЕКЛАРАЦИЯ... -
Page 16: Supply Status And Preparation
3 - TRANSPORT AND HANDLING SUPPLY STATUS AND PREPARATION The costs, as well as the preparation of the safety component on the machine, are borne by the Customer and include: • Prepared for anchoring on the machine; • The Power Supply of the machine, in accordance with the Standards in force in the Country of use. Installation requires a manoeuvring area around the machine appropriate to the requirements of the op- erations to be performed. -
Page 17: Preparation
4 - INSTALLATION AND COMMISSIONING PREPARATION The package contains - ref. drawing (2): 1. the technical documentation; 2. the screen group - detail (1); 3. the microswitch assembly including hexagonal rod - detail (2); 4. the support rod of the assembly for anchoring to the machine-detail (3); 5. -
Page 18: Installation
4 - INSTALLATION AND COMMISSIONING INSTALLATION The assembled guard must be suitably fixed to the operating machine by means of suitable supports and fastening systems; the guard is supplied with a bracket as standard - drawing (5) detail (1); 1. fix the bracket - drawing (5) detail (1) - to the machine - drawing (5) detail (2) - using the standard M8x20 fixing screws - drawing (5) detail (3);... -
Page 19: Electrical Connection
4 - INSTALLATION AND COMMISSIONING ELECTRICAL CONNECTION The installed guard must be properly connected to the operating machine to perform the safety function as required by the standard. The electrical connection must be made according to the diagram in - drawing (9). For the specific characteristics of the microswitch, please refer to the attached component data sheet. -
Page 20: Workstation
5 - USE AND MAINTENANCE WORKSTATION The safety guard PMA 11 protects the operator from the front, observe the workstation as shown in - draw- ing (11). BEFORE STARTING ANY WORK Before starting any work, it is necessary: 1. check the intact state of the protective screen, if you notice any cracks or splits as shown in drawing (13) detail (A) - contact the maintenance service immediately for replacement of the damaged part;... -
Page 21: Maintenance For Installation Technician
6 - MAINTENANCE FOR MAINTENANCE TECHNICIAN MAINTENANCE FOR INSTALLATION TECHNICIAN Any cleaning of the safety component must be carried out with the machine switched off and performed by personnel suitably trained in routine maintenance operations. Cleaning of the various components can be carried out with common universal degreasers, absolutely no corrosive agents or solvents should be used. -
Page 22: General Warnings
7 - ADDITIONAL INSTRUCTIONS GENERAL WARNINGS • The disposal and scrapping of the safety component must be carried out by qualified personnel who are familiar with the safety regulations for the type of work to be performed. • As the safety component is disconnected from the various sources of energy, the operator must wear the personal protective equipment deemed most appropriate according to the type of residual or in- herent danger when disassembling the parts. - Page 23 7 - ADDITIONAL INSTRUCTIONS WASTE DISPOSAL AND PACKAGING If you decide to no longer use the safety component which is the subject of this manual, because it is ob- solete or irretrievably defective or worn out, take it out of service using the following procedures: 1.
