WSA-100 Utility Station

The WSA-100 Utility Station (SKU 5210438) conveniently adds air and electrical outlet sources to selected BendPak

lifts.

The WSA-100 Utility Station easily mounts near the Power Unit with a versatile corner mounting bracket, or without the

mounting bracket and directly to existing threaded holes found on larger lifts. The following BendPak Lifts will accept

one of these two methods:

Four Post Lifts:

HD Series (HD-7, HD-9, HD- 14)

•

HDS Series (HDS-14, HDS- 18, HDS- 27,

•

HDS- 35, HDS-4 0)

•

HDSO-14 Series

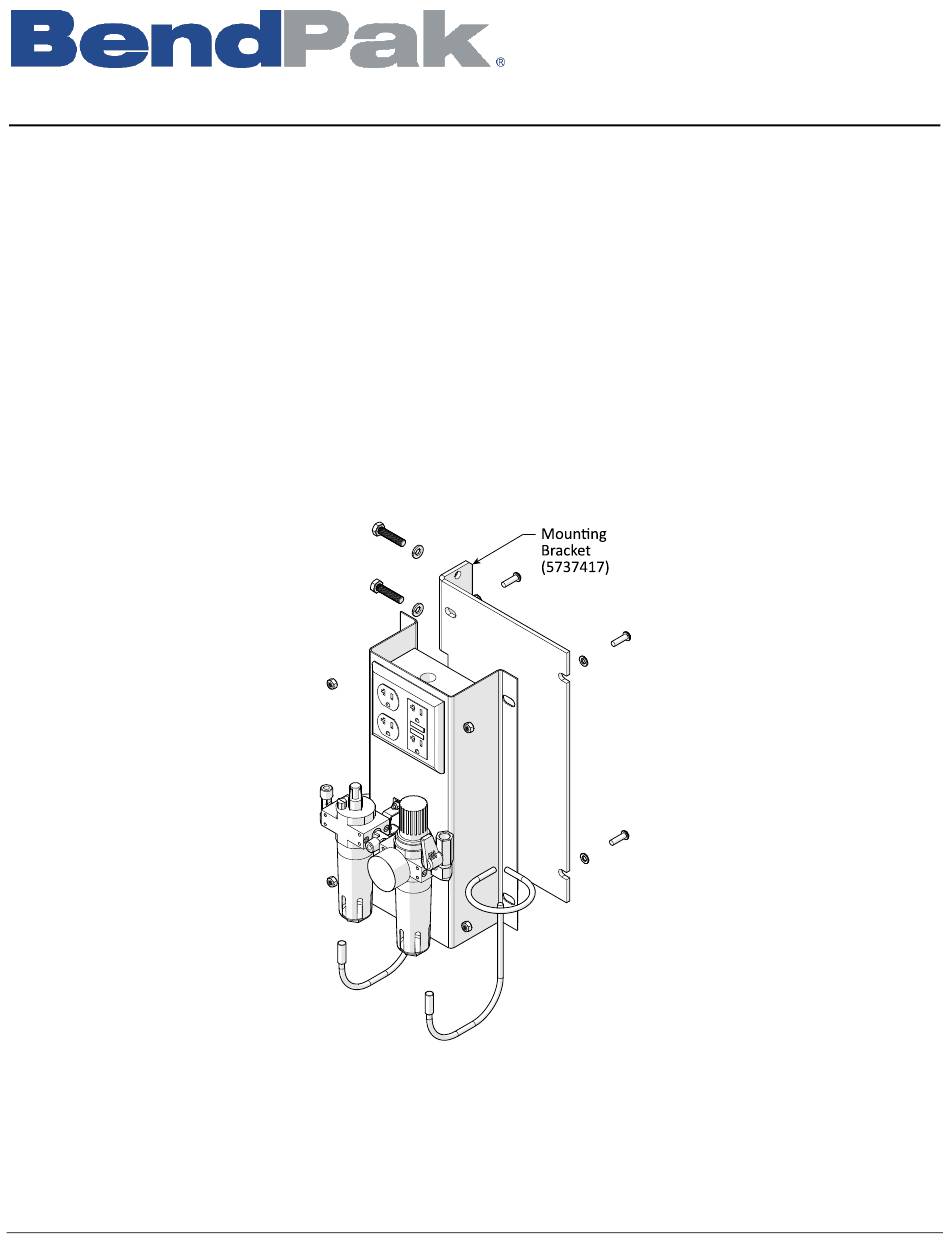

WSA-100 Utility Station with corner mounting bracket, shown.
