Summary of Contents for Flex CL 5000 10.8/18.0

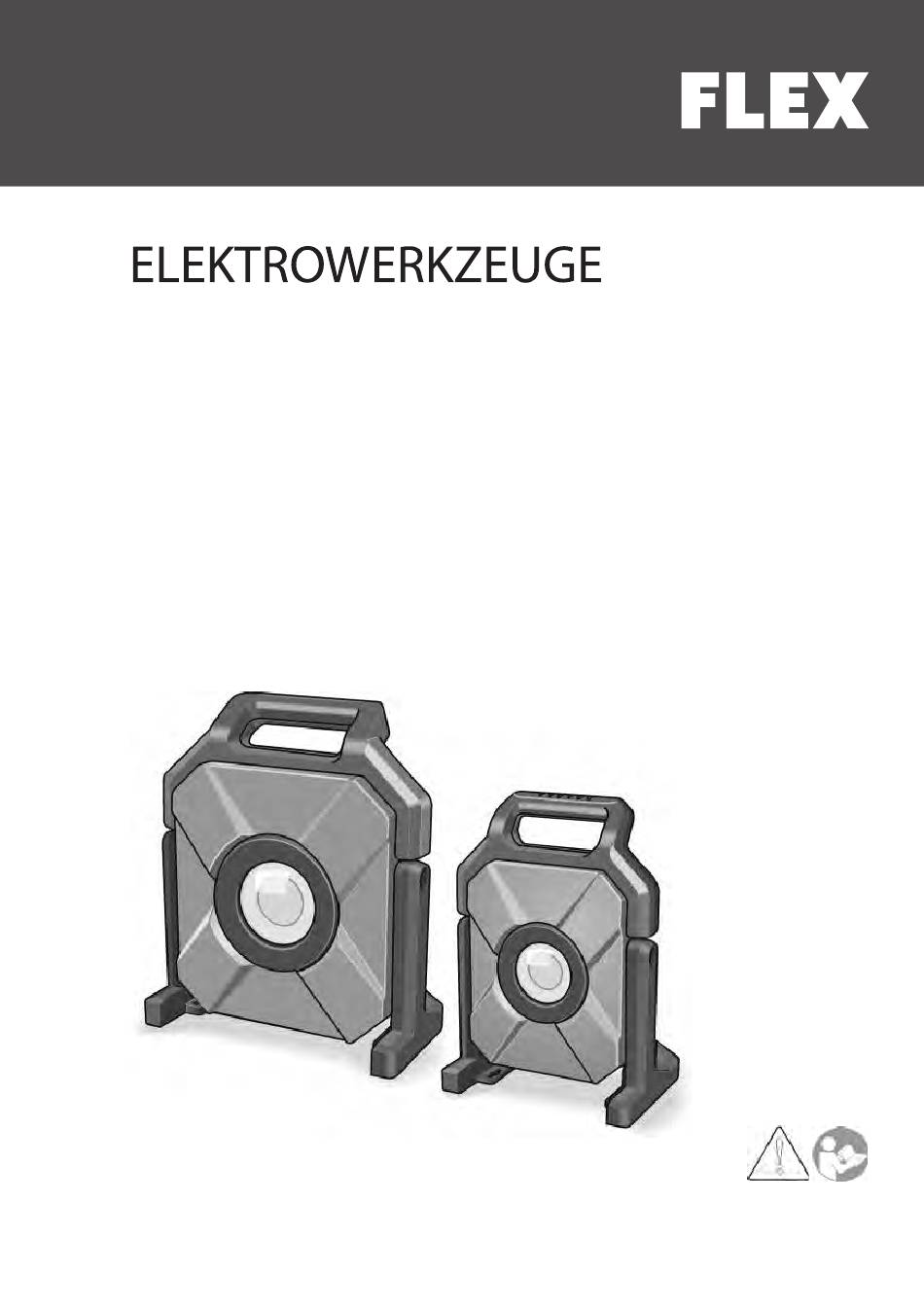

  • Page 1 CL 5000 10.8/18.0 CL 10000 10.8/18.0...
  • Page 2: Table Of Contents

    Symbole am Gerät unverzüglich behoben werden. Bestimmungsgemäße Verwendung Der akkubetriebene LED-Baustrahler Vor Inbetriebnahme Bedienungsanleitung lesen! CL 5000 10.8/18.0 / CL 10000 10.8/18.0 ist bestimmt – für den gewerblichen Einsatz in Industrie Entsorgungshinweise und Handwerk, (siehe Seite 9)! – für die gezielte Ausleuchtung des...
  • Page 3 CL 5000 10.8/18.0 / CL 10000 10.8/18.0 Sicherheitshinweise für  Durch spitze Gegenstände wie z.B. Nagel oder Schraubenzieher oder durch äußere akkubetriebene LED-Baustrahler Krafteinwirkung kann der Akku beschädigt WARNUNG! werden. Es kann zu einem internen Lesen Sie alle Sicherheitshinweise und An- Kurzschluss kommen und der Akku weisungen.
  • Page 4: Technische Daten

    CL 5000 10.8/18.0 / CL 10000 10.8/18.0 Technische Daten CL 5000 10.8/18.0 CL 10000 10.8/18.0 Gerätetyp akkubetriebener LED-Baustrahler 10.8/2,5 10.8/4,0 Lithium-Ionen Akku V/Ah 18/2,5 18/5,0 18/8,0 Leuchtdauer - 10.8/2,5 1h 25min -10% 1h 25min -10% - 10.8/4,0 2h -10% 2h 20min -10%...
  • Page 5: Auf Einen Blick

    CL 5000 10.8/18.0 / CL 10000 10.8/18.0 Auf einen Blick Schutzglas Leuchtenkopf Wandhalterungsbohrungen Handgriff Gewinde (5/8") für Stativ Ein-/Ausschalter Gestell mit Haken für Wandhalterung Leuchtintensitätstasten Akku Einstellen der Leuchtkraft Entriegelungstaste für Akku USB-C Anschluss Akkuzustands-Anzeige Einschubschacht für Akku...
  • Page 6: Gebrauchsanweisung

    CL 5000 10.8/18.0 / CL 10000 10.8/18.0 Gebrauchsanweisung Ladezustand des Akkus  Durch Drücken der Taste kann an den WARNUNG! LED der Akkuzustands-Anzeige der Vor allen Arbeiten am Gerät den Akku Ladezustand geprüft werden. herausziehen. Vor der Inbetriebnahme Gerät und Zubehör auspacken und auf Vollständigkeit der Lieferung und eventuelle...
  • Page 7 CL 5000 10.8/18.0 / CL 10000 10.8/18.0  Durch Drücken der Leuchtintensitäts-  Zum Montieren des akkubetriebenen tasten kann die Leuchtkraft geändert LED-Baustrahlers am Stativ das werden. Gewinde (5/8“) benutzen. USB-C Anschluss Mit dem integrierten USB-C Anschluss Hakenfunktion können zum Beispiel Smartphones geladen VORSICHT! werden.
  • Page 8: Wartung Und Pflege

    CL 5000 10.8/18.0 / CL 10000 10.8/18.0 Entsorgungshinweise Schwenkfunktion  Der Leuchtenkopf kann um 90° nach WARNUNG! oben und um 20° nach unten gekippt Ausgediente Elektrogeräte vor der werden. Entsorgung unbrauchbar machen: netzbetriebene Elektrogeräte durch – Entfernen des Netzkabels, akkubetriebene Elektrogeräte durch –...
  • Page 9: Symbols Used In This Manual

    (see page 16)! – for illuminating rooms. The battery-powered LED work lamp Do not look into the light source! CL 5000 10.8/18.0 / CL 10000 10.8/18.0 is not suitable – for use as a headlight. Minimum distance from all illuminated surfaces and objects.
  • Page 10 CL 5000 10.8/18.0 / CL 10000 10.8/18.0 Safety instructions for battery- Safety instructions for handling powered LED work lamp batteries  Do not open the battery. Short-circuiting WARNING! hazard! Read all safety warnings and all instruc-  Protect the battery against heat, tions.
  • Page 11: Technical Specifications

    CL 5000 10.8/18.0 / CL 10000 10.8/18.0 Technical specifications CL 5000 10.8/18.0 CL 10000 10.8/18.0 Machine type Battery-powered LED work lamp 10.8/2.5 10.8/4.0 Lithium-ion battery V/Ah 18/2.5 18/5.0 18/8.0 Lighting duration - 10.8/2.5 1h 25min -10% 1h 25min -10% - 10.8/4.0...
  • Page 12: Overview

    CL 5000 10.8/18.0 / CL 10000 10.8/18.0 Overview Protective glass of lamp head Wall mounting holes Handle Threads (5/8") for stand On/Off switch Frame with hook for wall mounting Light intensity buttons Battery Adjusting lighting output Release button for battery...
  • Page 13: Instructions For Use

    CL 5000 10.8/18.0 / CL 10000 10.8/18.0 Instructions for use Battery state of charge  Press the button to check the state of WARNING! charge at the state of charge indicator Before any work on the device, pull out the LEDs.
  • Page 14 CL 5000 10.8/18.0 / CL 10000 10.8/18.0  Pressing the light intensity buttons changes the lighting output.  To mount the battery-powered LED work lamp on the tripod, use the thread (5/8"). USB-C port Smartphones, for example, can be charged via the integrated USB-C port.
  • Page 15: Maintenance And Care

    CL 5000 10.8/18.0 / CL 10000 10.8/18.0 Swivel function EU countries only:  The lamp head can be swivelled 90° Do not dispose of the electrical equipment in upwards and 20° downwards. household waste. In accordance with the European Directive...
