ROBOTICS
Product manual, spare parts
IRB 390

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRB 390 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABB IRB 390

Summary of Contents for ABB IRB 390

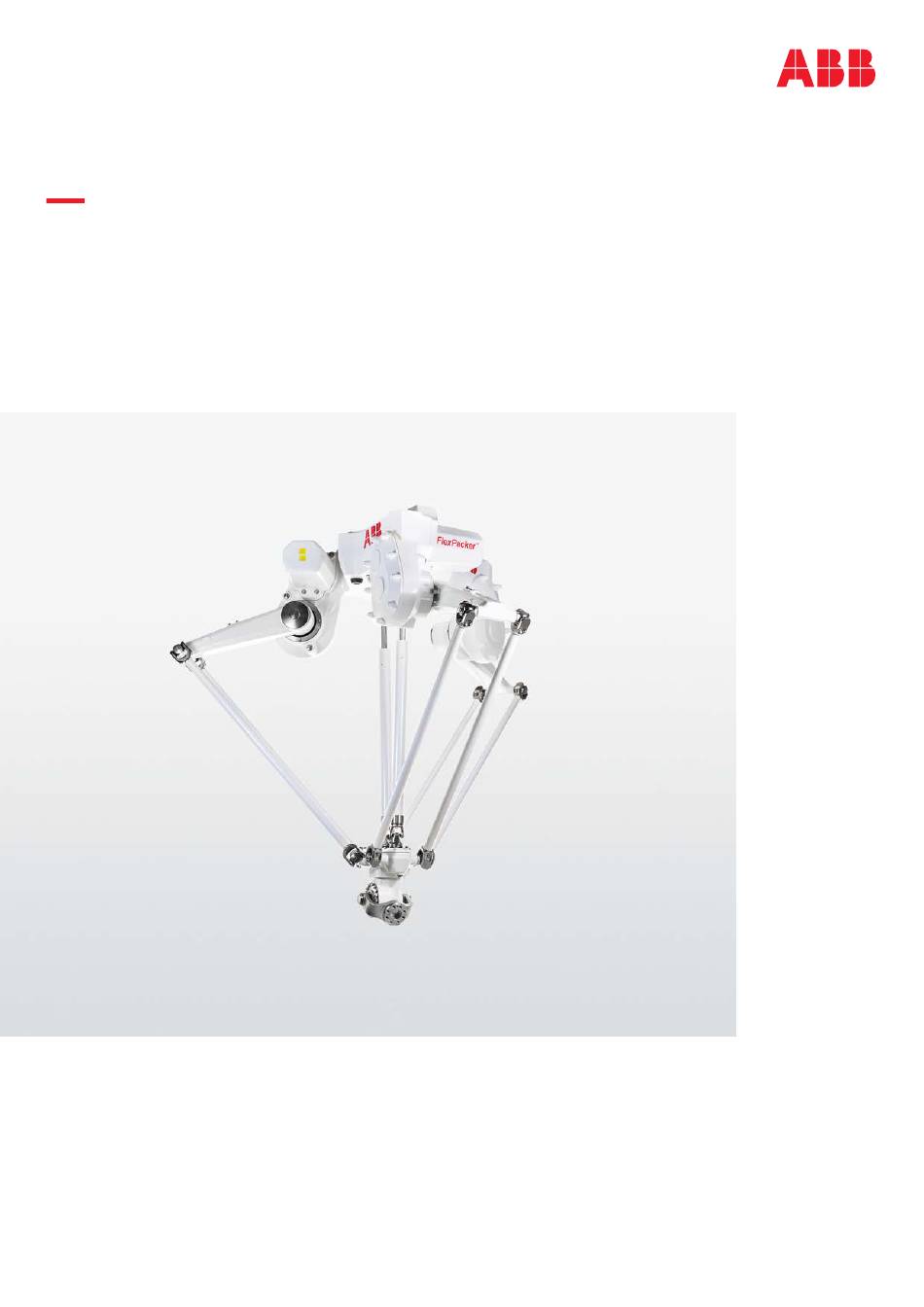

  • Page 1 ROBOTICS Product manual, spare parts IRB 390...
  • Page 2 Trace back information: Workspace 22D version a9 Checked in 2022-12-16 Skribenta version 5.5.019...
  • Page 3 Product manual, spare parts IRB 390 - 15/1300 IRB 390 - 10/1300 IRC5 Document ID: 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved. Specifications subject to change without notice.
  • Page 4 Except as may be expressly stated anywhere in this manual, nothing herein shall be construed as any kind of guarantee or warranty by ABB for losses, damage to persons or property, fitness for a specific purpose or the like.

  • Page 5: Table Of Contents

    11 Spare parts - accessories 11.1 Axis Calibration items ..................12 Consumables and wear parts 12.1 Lubrication ....................... 12.2 Wear parts ....................... Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 6 This page is intentionally left blank...

  • Page 7: Overview Of This Manual

    Overview of this manual About this manual This manual contains spare parts for: • IRB 390 and all its variants. Usage This manual shall be used as a complement to the product manual for IRB 390 during: • maintenance work • repair work.
  • Page 8 Published in release 22D. The following updates are made in this revision: • Added protection screws and washers for lifting eye attachment holes on the base. Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.

  • Page 9: Definition Of Spare Part Levels

    1 Definition of spare part levels 1 Definition of spare part levels Spare part level ABB spare parts are categorized into two levels, L1 and L2. Always check the part level before conducting a service work on a spare part. •...
  • Page 10 This page is intentionally left blank...

  • Page 11: Spare Parts - Electrical Parts

    IRB 390 - IRB 390 - Spare part 15/1300 10/1300 level 3HAC060469-001 Cable harness 3HAC030936-001 Cable harness axis 7 Spare part illustration xx2000000916 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.

  • Page 12: Smb Unit

    Spare part 15/1300 10/1300 level 3HAC043904-001 Serial measurement unit DSQC 633C 3HAC044075-001 Battery unit 3HAC058649-003 Sealing washer Spare part illustration xx2000000100 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.

  • Page 13: Signal Lamp Unit

    IRB 390 - Spare part 15/1300 10/1300 level 3HAC060934-001 Signal lamp 3HAC059429-001 Sight glass 3HAC059429-003 Sealing ring Spare part illustration xx2000000917 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.

  • Page 14: Brake Release Unit

    IRB 390 - IRB 390 - Spare part 15/1300 10/1300 level 1SFA616105R4006 Brake release unit 3HAC059429-003 Sealing Spare part illustration xx2000000918 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.

  • Page 15: Brake Release Box

    Spare part number Description IRB 390 - IRB 390 - Spare part 15/1300 10/1300 level 3HAC077658-001 Brake release box 3HAC044075-001 Battery unit xx2000000863 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 16 This page is intentionally left blank...

  • Page 17: Spare Parts - Base Unit

    The spare part includes fol- lowing parts: • base • axis-1, axis-2 and ax- is-3 gear • brake release button Spare part illustration xx2000000868 xx2000000869 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.

  • Page 18: Base Parts

    O-ring, nitrile rubber 3HAC079467-001 3HAC060233-011 Protection screw 3 pcs 3 pcs 3HAC081466-001 Sealing washer 3 pcs 3 pcs Continues on next page Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 19 3 Spare parts - base unit 3.2 Base parts Continued Spare part illustration xx2000000073 Continues on next page Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 20 3 Spare parts - base unit 3.2 Base parts Continued xx2100002297 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.

  • Page 21: Spare Parts - Lower Arm

    IRB 390 - Spare part 15/1300 10/1300 level 3HAC060138-001 Lower arm / parallel bar 3HAC062123-001 Sealing washer Spare part illustration xx1900001798 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 22 This page is intentionally left blank...

  • Page 23: Spare Parts - Upper Arm

    3HAC060604-003 Upper arm 3HAC062067-001 Sealing ring 3HAC058619-001 Gasket 3HAC043799-001 Washers, 12 pcs 12 pcs 12 pcs Spare part illustration xx2000000074 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 24 This page is intentionally left blank...

  • Page 25: Spare Parts - Telescopic Shaft Unit

    2 pcs 4 pcs 3HAC058626-004 Washer 4 pcs 8 pcs 3HAC058625-001 Hexagon flange bolt 4 pcs 8 pcs Continues on next page Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 26 6 Spare parts - telescopic shaft unit 6.1 Telescopic shaft unit Continued Spare part illustration xx2000000075 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.

  • Page 27: Spare Parts - Delta Unit

    Sealing ring 3HAC061440-001 Sleeve 3HAB3409-69 Hex socket head cap screw M12x50 12.9 Gleitmo 603+Geomet 500 3HAC061398-001 Friction shim Continues on next page Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 28 7 Spare parts - delta unit 7.1 Delta unit Continued Spare part illustration IRB 390 - 15/1300 xx2000000076 Continues on next page Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 29 7 Spare parts - delta unit 7.1 Delta unit Continued IRB 390 - 10/1300 xx2000000077 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 30 This page is intentionally left blank...

  • Page 31: Spare Parts - Motors

    Spare part 15/1300 10/1300 level 3HAC058368-003 Rotating AC motor M106.1 with pinion 3HAC063720-001 Sealing washer 3HAB3772-102 O-ring Spare part illustration xx2000000078 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.

  • Page 32: Axis-4-5 Motor

    Rotating AC motor M104 with pinion 3HAC058581-003 Rotating AC motor M104 with pinion 3HAB3772-163 O-ring 1 pcs 2 pcs Spare part illustration xx2000000079 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.

  • Page 33: Spare Parts - Gears

    IRB 390 - Spare part 15/1300 10/1300 level 3HAC060588-003 Gear unit, pre-stage 3HAC060588-003 Gear unit, pre-stage 3HAC059017-002 Sealing ring Spare part illustration xx2000000867 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 34 This page is intentionally left blank...

  • Page 35: Spare Parts - Labels

    Axis mark label, axes 4 and 5 3HAC076469-001 Warning label Hot surface 3HAC076465-001 Instruction label Lifting of robot Continues on next page Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 36 10 Spare parts - labels Continued Spare part number Description Spare part level 3HAC055008-001 Information label Battery 3HAC075329-001 FlexPicker label Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.

  • Page 37: Spare Parts - Accessories

    Axis Calibration method. There is one bushing and one fixed calibration pin each on axes 1, 2, 3 and 5. Axis 4 has two bushings. xx2000000025 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 38 This page is intentionally left blank...

  • Page 39: Consumables And Wear Parts

    12 Consumables and wear parts 12.1 Lubrication Spare part list This table specifies required lubricants for installation and service. Detailed information about usage of lubricants is found in Product manual - IRB 390. Description Spare part number P-80 rubber lubration gel...

  • Page 40: Wear Parts

    Telescopic shaft unit 3HAC059382-003 1 pcs 2 pcs Nipple dimension: DIN 3402 Universal joint 3HAC059503-001 2 pcs 4 pcs Wear part illustration xx2100000316 Product manual, spare parts - IRB 390 3HAC066567-001 Revision: D © Copyright 2020 - 2022 ABB. All rights reserved.
  • Page 42 SHANGHAI 201319, China Telephone: +86 21 6105 6666 ABB Inc. Robotics & Discrete Automation 1250 Brown Road Auburn Hills, MI 48326 Telephone: +1 248 391 9000 abb.com/robotics © Copyright 2020 - 2022 ABB. All rights reserved. Specifications subject to change without notice.
