Summary of Contents for Tiger ET3

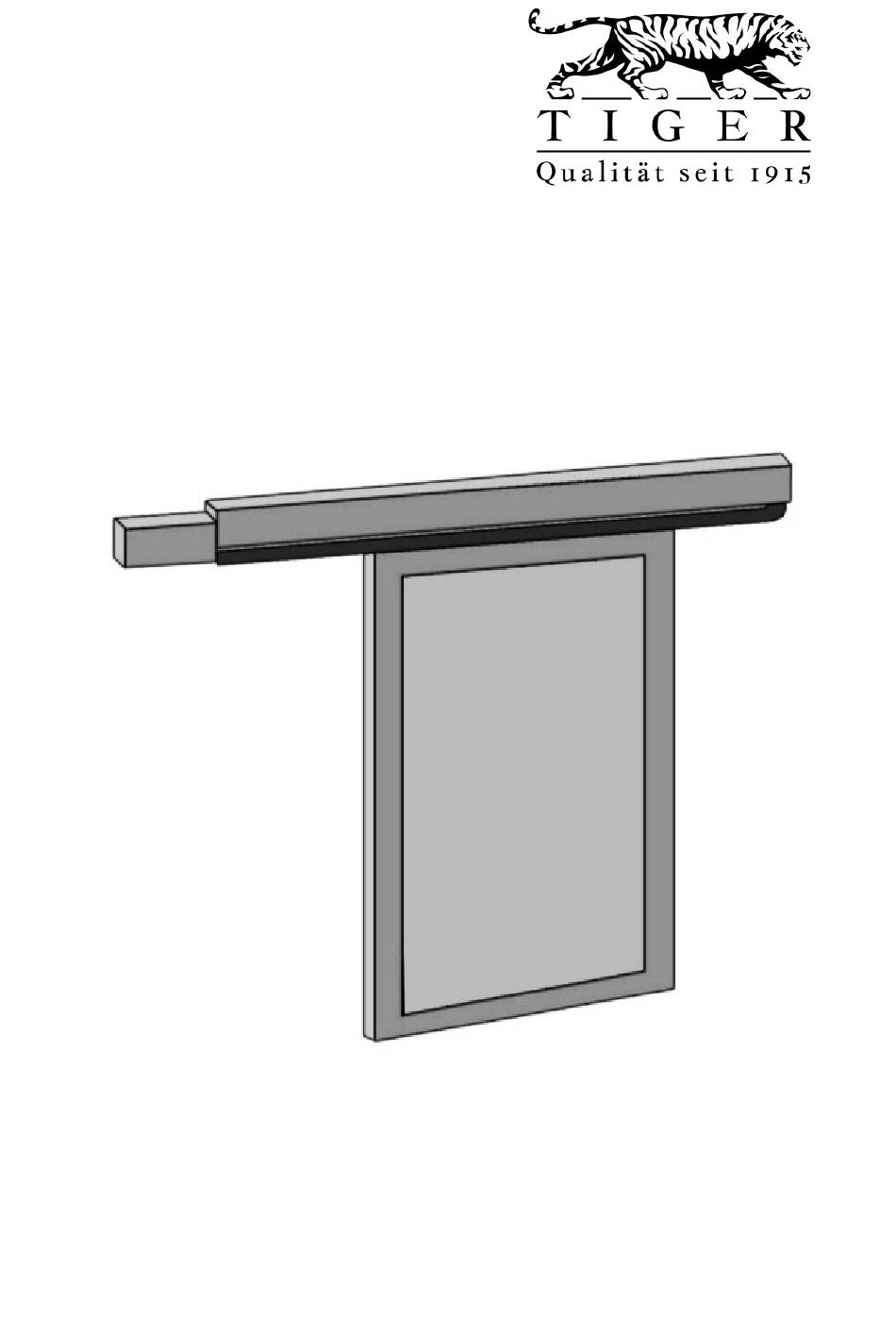

- Page 1 Instruction manual Version: 1.11 Sprache: englisch Originalsprache: deutsch Document: ------...
- Page 2 Changes of technical details are expected. Please use the latest version of the document and contact the manufacturer in case of doubt. Questions In case of questions contact the customer service. Please have the order number or serial number ready. ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 2/28...
-
Page 3: Table Of Contents
Cleaning ......................... 21 Function control ...................... 21 Maintenance......................22 Test book ....................... 23 8.4.1 Object and plant data ......................23 8.4.2 Initial test ..........................24 8.4.3 Repeat test ..........................25 9 Notes ........................27 ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 3/28... -
Page 4: About This Document
Symbolizes a list with no specific order 1. Symbolizes a list or instruction in specific order Instructions symbolizes an action symbolizes a reference symbolizes the result of an action ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 4/28... -
Page 5: Safety
The 24V motor control device for sliding doors is designed for standard wall jacks in dry interior. 2.2 Proper use This product is a motor control device for the sliding door ET3 of the manufacturer. The manufacturer`s specifications must be respected, in especially maximum and minimum dimensions and maximum weight of the door leaf. -
Page 6: Functional Description
3.1 General description The product ET3 is an electric drive for sliding doors. The motor control device ET3-80-S13 drives a 24V DC motor ET3-80-M7. The motor drives a sliding door, to which it is connected by a timing belt. Hint This document describes the functionality of the motor control device ET3-80-S13. -
Page 7: Modes Of Operation
The product is designed for the electrical operation of a sliding door. Avoid manual operations, especially acceleration or pushing the door leaf that is already electrically driven. ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 7/28... -
Page 8: Cabling
Between power supply and control device up to 20 m: (60 ft.): 2 x 0,50 mm² (20 AWG) 20 to 50 m: (60..160 ft.): 2 x 0,75 mm² (18 AWG) Table 1 – Cable requirements ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 8/28... -
Page 9: Mounting And Electrcal Connection
Plug switch through cover frame into control device. Control device and switch are mounted. Flush Box (on site) Control device Cover frame Switch Figure 2 – Mounting of control device and switch ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 9/28... -
Page 10: Electrical Connection
Ground (-) Power supply - blue Motor 1 Ground On-site +5V DC brown Stop control green Signal 2 Open inputs yellow Signal 1 Close Ground white Figure 3 – Control device inputs ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 10/28... -
Page 11: Exemplary Connection Of On-Site Actuators
Conventional open and close buttons (potential free, normaly open). Button Ground Open Close Button Hint Operation with one button is only possible in automatic operation mode (Open command). Otherwise two buttons are necessary. ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 11/28... -
Page 12: Initial Operation
After configuration is applied, the door stays open for a shorter time. Refer to chapter 6.1 Hinweis The minimum closing delay time is 5 seconds, the maximum closing delay time is 30 seconds. ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 12/28... -
Page 13: Dip Switch
Switch 1 is inactive, when dead man`s control is selected. Switch 3: Push & Go With push & go enabled the drive starts to move, as soon as the door leaf is pushed. ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 13/28... - Page 14 Weight of door leaf up to 50 kg - Maximum speed is 25 cm/s. Hint The safety stop (which can be set with DIP-switch No.6) provides increased safety and is recommended for use in sensitive areas like kindergartens or retirement homes. ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 14/28...
-
Page 15: Steps During Initial Operation
In case of malfunction check electrical connections and configuration. For electrical connection refer to chapter 5.2 For configuration refer to chapter 6.1 Repeat initial operation, if necessary. Initial operation is completed, when function is correct. ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 15/28... -
Page 16: Behavior After A Power Cut
First movement will start with reduced speed. Normal operation is restored. Hint After a power cut, no further initial operation is necessary. The operation parameters are saved permanently during initial operation. ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 16/28... -
Page 17: Error Mode
This cycle repeats every 24 seconds until the error is reset. green 20 s In this example, the error code 4 is shown (Self-test – Oscillator error). ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 17/28... -
Page 18: Wireless Receiver
Preparation of receiver Remove front cover of receiver. Have your hand transmitter ready. Place cover over receiver, when programming is done. Red LED LEARN button Figure 4 – Wireless receiver ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 18/28... -
Page 19: Teach-In Of Hand Transmitters
Red LED blinks fast. Press LEARN button for more than 2 seconds. Red LED lights up for about 4 seconds. Red LED goes out. All hand transmitters are deleted. ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 19/28... -
Page 20: Maintenance
Service by trained and authorized personnel only, at least annually in case of electrically operated equipment. Hint Inspection openings, mechanics and drives as well as associated control units are to be kept accessible. Hint Only original spare parts should be used. ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 20/28... -
Page 21: Cleaning
Perform functional check Check the usual and desired functions. Refer to chapter 3 In case of malfunction contact manufacturer. Move the system into danger-free condition. Function check completed. ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 21/28... -
Page 22: Maintenance
Clean the system Function of the system Visible and load-bearing screw connections Drive belt, as well as it`s tension Weather protection of the drive Wiring and electrical connection Power shutdown Table 5- Checklist ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 22/28... -
Page 23: Test Book
Model / Serial number If available Operating devices Button, radio transmitter, sensor etc. Safety equipment Power switch off, emergency stop, Sensor etc. Other comments / Hints Table 6- Object and system data ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 23/28... -
Page 24: Initial Test
Refer to chapter 8.3 Briefing of the client about the system. Complete the table below Comments Date of the initial test Name of the examiner Signature operator Signature examiner Tabel 7- Initial test ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 24/28... -
Page 25: Repeat Test
All points mentioned in the maintenance checklist. Refer to chapter 8.3 Briefing of the client about the system. Complete the table below. Name and signature the Date Special notes examiner ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 25/28... - Page 26 Name and signature the Date Special notes examiner Tabel 8- Perform repeat test ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 26/28...
-
Page 27: Notes
9 Notes Tabel 9- Notes ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 27/28... - Page 28 Hermann Francksen Nachfolger GmbH & Co.KG Baubeschlagfabrik Lesumbroker Landstraße 22 DE-28719 Bremen Telefon: +49 (0) 421 / 69 44 6 – 0 info@tiger.de www.tiger.de ___________________________________________________________________________ Instruction Manual ET3 – Version 1.11 28/28...
