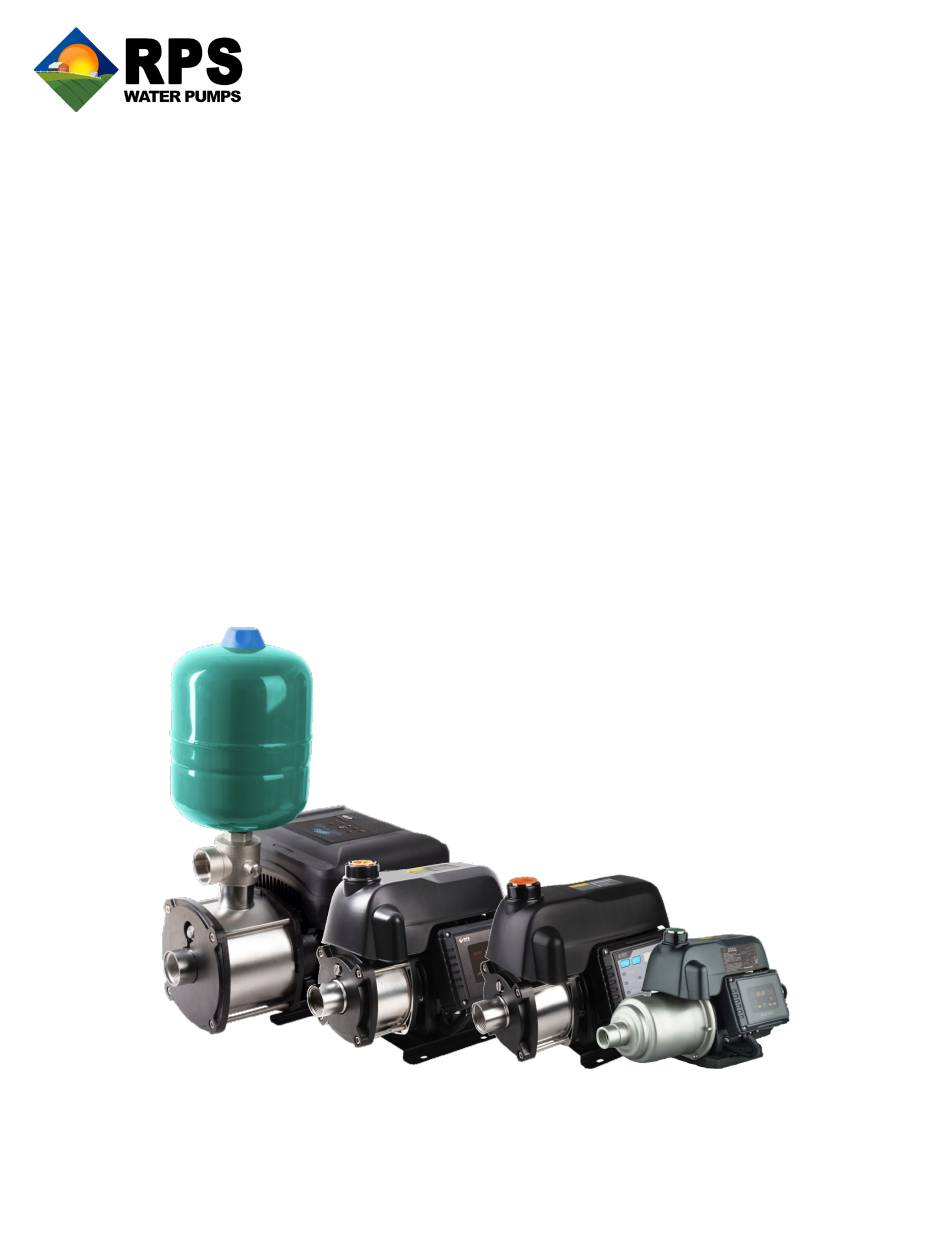

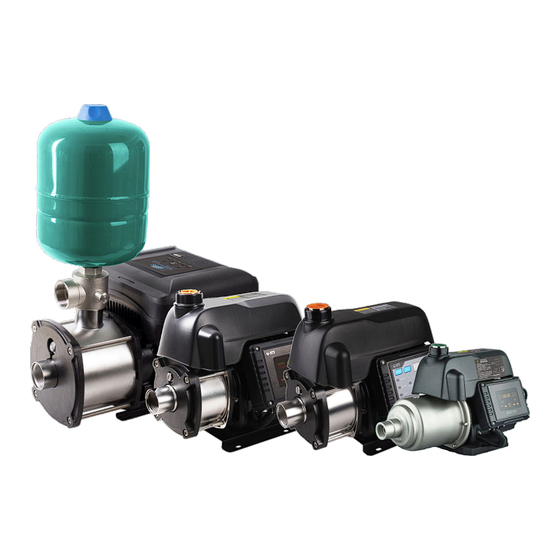

- Page 1 AC Pump User Manual Eco-Steady Booster Pump ™ Models: BP05, BP1, BP2, BP3 For Support & Help Call Our Friendly Techs 855-560-5670 RPSwaterpumps.com...
- Page 2 That’s right, every single one of our customers is now successfully pumping water with an RPS system. This starts with making sure we supply you with the right pump for your land, and if issues do arise, we will immediately provide technical support and replacement parts so you can get up and pumping again as quickly as possible.
- Page 3 But never fear, RPS Water Pumps has tens of thousands of customers across the USA who have successfully installed and, in those rare cases, troubleshoot their system with...
- Page 4 WARNING ● Ground the system before turning on. Improper grounding may cause shock, burns, damage to property or death ● Abide by local electrical and building codes or ordinances when installing. Follow the National Electrical Code (NEC) and Canadian Electrical Code as required. ●...
-
Page 5: Model Details
MODEL DETAILS High Pressure Eco-Steady Eco-Steady Eco-Steady Eco-Steady Booster Pump Booster Pump Booster Pump Booster Pump BP05 BP1-HP 30psi 55psi 60psi 70psi Pressure Volume 5-10 GPM 5-25 GPM 10-30 GPM 20-50 GPM Pump Inlet 1” 1-¼” 1-¼” 1-1/2” (FNPT) Pump Outlet 1”... -
Page 6: Quick Startup Checklist
Quick Startup Checklist Find a suitable install location for pump that is protected from the elements (small well or pump house is a good idea), no more than 20 feet of your storage tank/body of water location. If you’re in a frost/ freeze location, ensure that there is proper insulation in the pump house, especially for the 2HP and 3HP models as the inlet face plates are susceptible to cracking if frozen. -
Page 7: Installation Details
INSTALLATION DETAILS -Your pump is designed for use out of the direct elements, sun, rain and snow. Covering or building into a small enclosure is ideal. -Since water does expand when it freezes, care should be taken to winterize the system if being used in a climate that experiences hard freezing. -
Page 8: Piping Example
Piping Example Straight piping from tank to pump without elbow bends is recommended. If elbow bends are necessary on the inlet side, we don’t recommend using more than two elbows due to positive pressure loss. ELBOW THREADED NIPPLE BALL VALVE BUSHING There are a variety of ways to plumb BP pumps, here’s an example of what you could use... -
Page 9: Priming The Pump
110vac or 220vac, you can test the pump before hooking up the panels, batteries, and controllers - just be sure to prime it first. Otherwise, prime the pump after hooking everything up to the controller except for the pump. BP05, BP-1 RPSwaterpumps.com... - Page 10 PRIMING THE PUMP Priming your pressure pump is essential before operation! If you have access to 110vac or 220vac, you can test the pump before hooking up the panels, batteries, and controllers - just be sure to prime it first. Otherwise, prime the pump after hooking everything up to the controller except for the pump.
- Page 11 PRIMING THE PUMP ASSEMBLY **With stainless steel connections, we recommend Thread Sealant and large wrenches. 1) Thread your Tee with Pressure Sensor to the upper outlet of the pump chamber using ample pipe dope/thread sealant. 2) On the left and right sides of the Tee are two openings for small fittings.
- Page 12 PUMP MODES for BPO5, BP1 and BP2 Once you have your pump primed and connected to power, your pump will automatically turn on! Depending on the model you have, your pump will either have a LED touch screen or physical buttons to press.
- Page 13 Button Function Button Function Press to select the working Illuminated when power is on mode The different modes the Solid: pump is running and working pump can operate; the pressure = set pressure current mode will be Flashing: pump is running but illuminated working pressure ≠...
- Page 14 = set pressure call for multiple, parallel pumps to achieve Flashing: pump is running but higher volumes . Very rare, call RPS for help if working pressure ≠ set pressure you plan on using this feature! Light off: pump is not running...
-
Page 15: Pump Troubleshooting
Startup fault Hard Reset, Contact RPS to check for impeller obstructions Motor communication error Check for damage to motor wires, Hard Reset, Contact RPS Not used n/a, Hard Reset Display communication error Hard Reset, Contact RPS... - Page 16 BP05 PUMP SPECS Inlet 1" FNPT Power Range 750 - 1500w Outlet 1" FNPT Suction Up to 4M, 15ft (wetted) Acceptable pH 5 - 8, Water (No Fuel) Max Current 8 Amps Temp. Range 0 - 40°C, 32 - 104°F...
- Page 17 BP05 PUMP SPECS Inlet 1" FNPT Outlet 1" FNPT Acceptable pH 5 - 8, Water (No Fuel) Temp. Range 10 - 40°C, 50 - 113°F Max Liquid Temp 60°C, 140°F Power Range 350-750W Suction Up to 4M, 15ft (wetted) Max Current 6 Amps...
- Page 18 BP-1HP PUMP SPECS Inlet 1" FNPT Outlet 1" FNPT Acceptable pH 5 - 8, Water (No Fuel) Temp. Range 10 - 40°C, 50 - 113°F Max Liquid Temp 60°C, 140°F Power Range 750-1500W Suction Up to 4M, 15ft (wetted) Max Current 8 Amps Pump Dims 16in x 6in x 11in Box Size...
- Page 19 BP2 PUMP SPECS Inlet 1.25" FNPT Outlet 1" FNPT Acceptable pH 5 - 8, Water (No Fuel) Temp. Range 10 - 40°C, 50 - 113°F Max Liquid Temp 60°C, 140°F Power Range 1200 - 2000w Suction Up to 4M, 15ft (wetted) Max Current 12 Amps Pump Dimensions 14in x 6in x 11in...
- Page 20 BP3 PUMP SPECS Inlet 1.5" FNPT Outlet 1.5" FNPT Acceptable pH 5 - 8, Water (No Fuel) Temp. Range 0 - 40°C, 32 - 104°F Max Liquid Temp 60°C, 140°F Power Range 1500-3000 w Suction Up to 4M, 15ft (wetted) Max Current 16 Amps Pump Dimensions 16in x 9in x 10in...
- Page 21 With both the RPS Tankless Pressure Pump™ and Eco-Steady Booster Pumps™ you'll get smooth Offgrid Solar continuous, steady, reliable water pressure without the need for AC power or the Conversion Kits utility grid. Available!! The solar charged battery bank powers your pump through your Solar Power Train™.
- Page 22 But never fear, RPS Water Pumps has tens of thousands of customers across the USA who have successfully installed and, in those rare cases, troubleshoot their system with the help of our dedicated RPS Water Pumps support engineers! RPSwaterpumps.com...
- Page 23 Title and risk of loss of the RPS Products will pass to the customer upon delivery of possession of the RPS Products by RPS Water Pumps to the carrier, subject to stoppage of RPS Products in transit.
- Page 24 PRODUCT WARRANTY 2-Year System Warranty: Rural Power Systems Inc. (RPS Water Pumps) warrants to the owner for a period of twenty-four (24) months from the date of purchase (“Warranty Period”) such RPS Products will be free from material defects in material and workmanship. During the Warranty Period, RPS Water Pumps will repair or replace any defective part(s) at no cost to the owner.
- Page 25 All intellectual property rights of RPS materials and content on the Website, including but not limited to text, designs, images, graphics, logos, and software, is the property of RPS Water Pumps or its licensors and is protected by US intellectual property laws. You may not use any of our intellectual property without our prior written permission.
- Page 26 Any of the material available through the Services may be out of date at any given time, and we are under no obligation to update such material. From time to time, RPS Water Pumps may issue an update to the Services, which may add, modify, and/or remove features; these updates may be pushed out automatically with little or no notice.
- Page 27 NOTES RPSwaterpumps.com...
- Page 28 NOTES RPSwaterpumps.com...
- Page 29 NOTES RPSwaterpumps.com...
- Page 30 NOTES RPSwaterpumps.com...
- Page 31 NOTES RPSwaterpumps.com...
- Page 32 WARRANTY: Rural Power Systems Inc extends to the original consumer purchaser a limited warranty against defects in material and workmanship for a period of twelve months from the date of purchase. This warranty covers the pump, controller, and solar panels. Rural Power Systems Inc will repair or replace any defective part or parts of the product free of charge within the first twelve months of purchase.
