PEMENOL 13339 Manual

Timer delay relay controller boardwith digital lcd display
Hide thumbs

Advertisement

Table of Contents

sameiyi@163.com
www.amazon.com/shops/PEMENOL

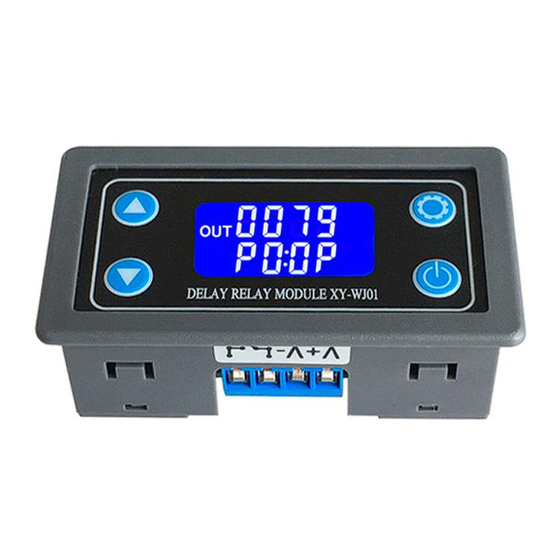

PEMENOL Timer Delay Relay Controller Board
with Digital LCD Display

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 13339 and is the answer not in the manual?

Questions and answers

Related Manuals for PEMENOL 13339

Summary of Contents for PEMENOL 13339

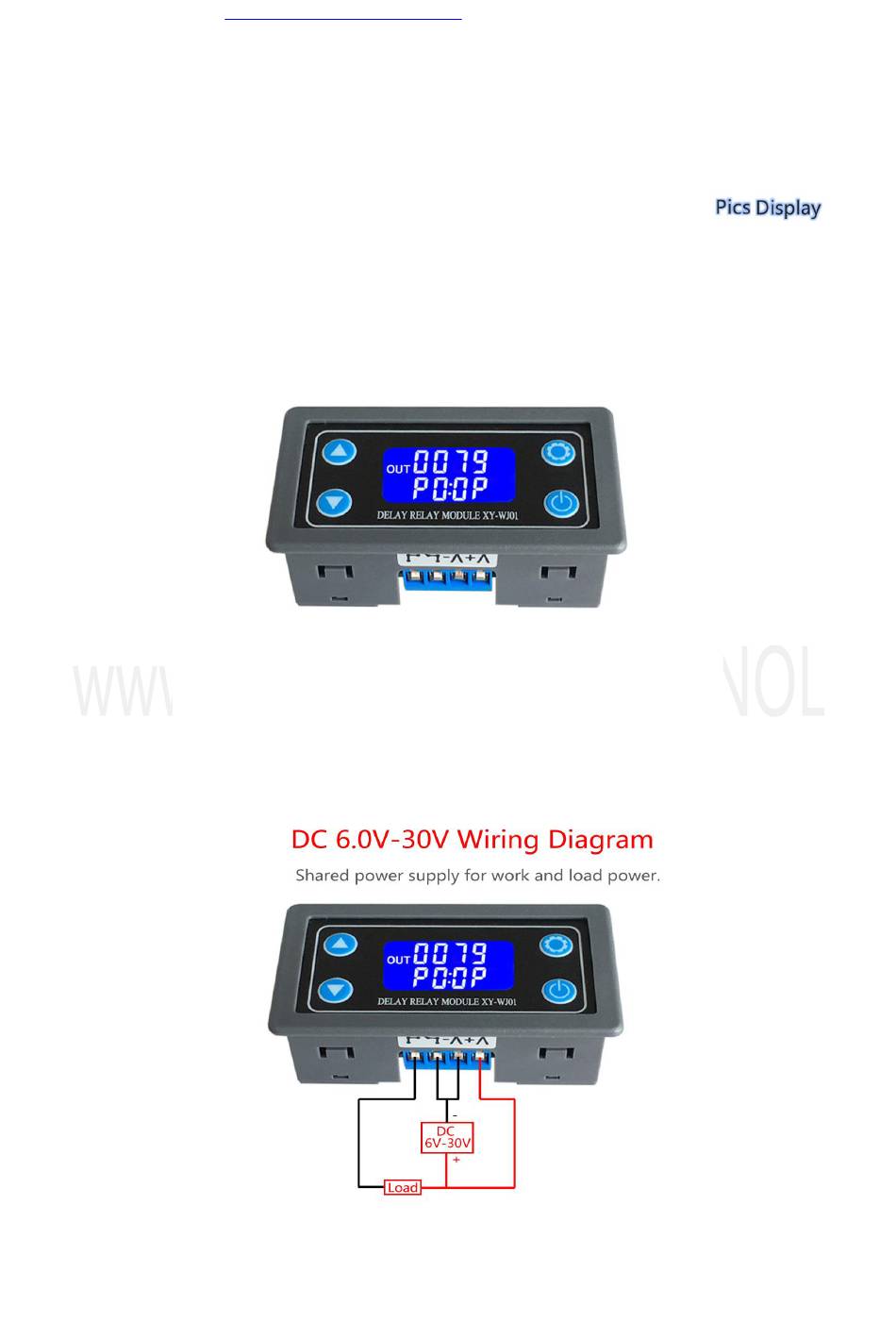

  • Page 1 PEMENOL Timer Delay Relay Controller Board with Digital LCD Display...
  • Page 2 www.amazon.com/shops/PEMENOL...
  • Page 3 www.amazon.com/shops/PEMENOL...
  • Page 4 Brief Intro: It is a multifunctional delay relay module.With LCD display, very clear and easy to use.It can be widely used at Smart home, Industrial control, Automatic irrigation, Indoor ventilation, equipment Protection. Highlights:  LCD display  Support high and low level trigger ...

  • Page 5: Parameter Details

    Parameter Details: Working Voltage DC 6V-30V Control Load Current 10A(Max) Quiescent Current 15mA Working Current 50mA -40~85℃ Working Temp Operating Humidity 5%-99%RH Suitable for battery Storage/Lithium Battery High Level Trigger (3.0V~24V) Trigger signal source Low Level Trigger (0.0V~0.2V)

  • Page 6: Working Mode

    This function can be used in circuit protection for improper operation or preventing instantaneous high current. 2>.Cycle timing. The load switch changes the status according to the specified time after setting the cycle time.
  • Page 7 ON for time OP and then loops the above action. The number of cycles (LOP) can be set. Relay will keep ON if loop ends. Signal hold function. Timing resets and relay keep ON if getting trigger signal.

  • Page 8: Parameter Description

    Eg: For example, if you want to set the OP to 3.2 seconds, move the decimal point to the penultimate position, LCD will display ‘003.2’. Display Position of decimal point Range 0000 No decimal point 1 second ~ 9999 secs 000.0...
  • Page 9 View parameters: In the running interface, short press the SET button to display the current  parameter settings of the system, which does not affect the normal operation of the system. Switch the parameter displayed: It will switch the display content by short press button 'DOWN' in the P5~P6 ...

  • Page 10: Package Listing

    Application: Motor  Robot  Smart home  Industrial control  Automatic irrigation   Indoor ventilation *It is a relay output module and cannot be used as a power module. It cannot output voltage. The load needs to be connected to a separate power supply.
