Teletype 38 Disassembly And Reassembly

TELETYPE CORPORATION
Skokie, Illinois, U.S.A.
SECTION 574-421-702TC
Issue 1, May 1972
38KEYBOARD
DISASSEMBLY AND REASSEMBLY
CONTENTS PAGE
1.
GENERAL
..
1
2.
KEYBOARD
1
KEYTOP GUIDE 1
KEYLEVERS AND KEYTOPS 2
CONTACT BLOCK
ASSEMBLY
.........
2
1. GENERAL
1.01 This section provides disassembly and
reassembly instructions for the 38 Key-
board. These instructions are confined to major
i:::nh~u;:.i;:pmhliPi::: nnly.
Tf
fnrthPl" kPyhn~..-a rlii:::a,s.~Pm-
bly and reassembly is required, refer to Section
574-421-S00TC.
1.02 To remove the keyboard as a unit from
the teletypewriter, refer to Section
574-400-702TC.
2. KEYBOARD
KEYTOP GUIDE
2.01 Disassemble keytop guide (Figure 1) as
follows:
2.02
(a) Remove LOCAL RETURN and PAPER
ADVANCE pushbutton knobs.
(b) Pull tab at front of keytop guide
forward, until it is disengaged from
post on front of keyboard.
( c) Rotate keytop guide toward rear and
up over keytops.
( d) Remove keytop guide from keyboard.
Reassemble keytop guide by reversing
procedure in 2.01.
pushbutton knobs
keytop guide

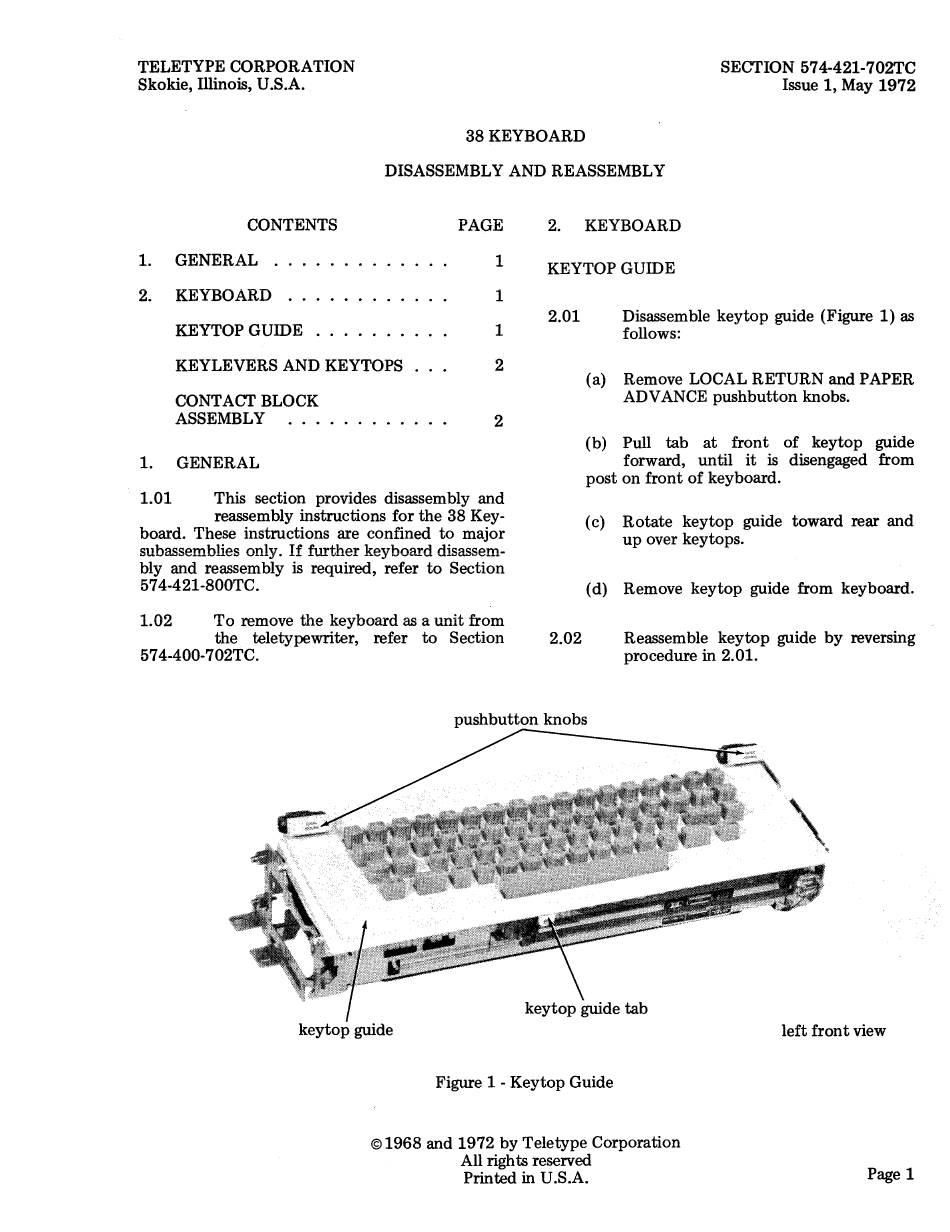

Figure 1 - Keytop Guide
©
1968 and 1972 by Teletype Corporation
All rights reserved
Printed in U.S.A.
left front view
Page 1
