Sony STR-DE575 - Fm Stereo/fm-am Receiver Dimensions

STR-DE575/675
RM-PP505L REMOTE
1/2" 1 7/8 "
1 "
OPTICAL ANTENNA
AM.
COAXIAL
FM
COAX
FRONT REAR
MULTI CH INPUT
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS.
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 986 3062 • b2b.sel.sony.com
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.

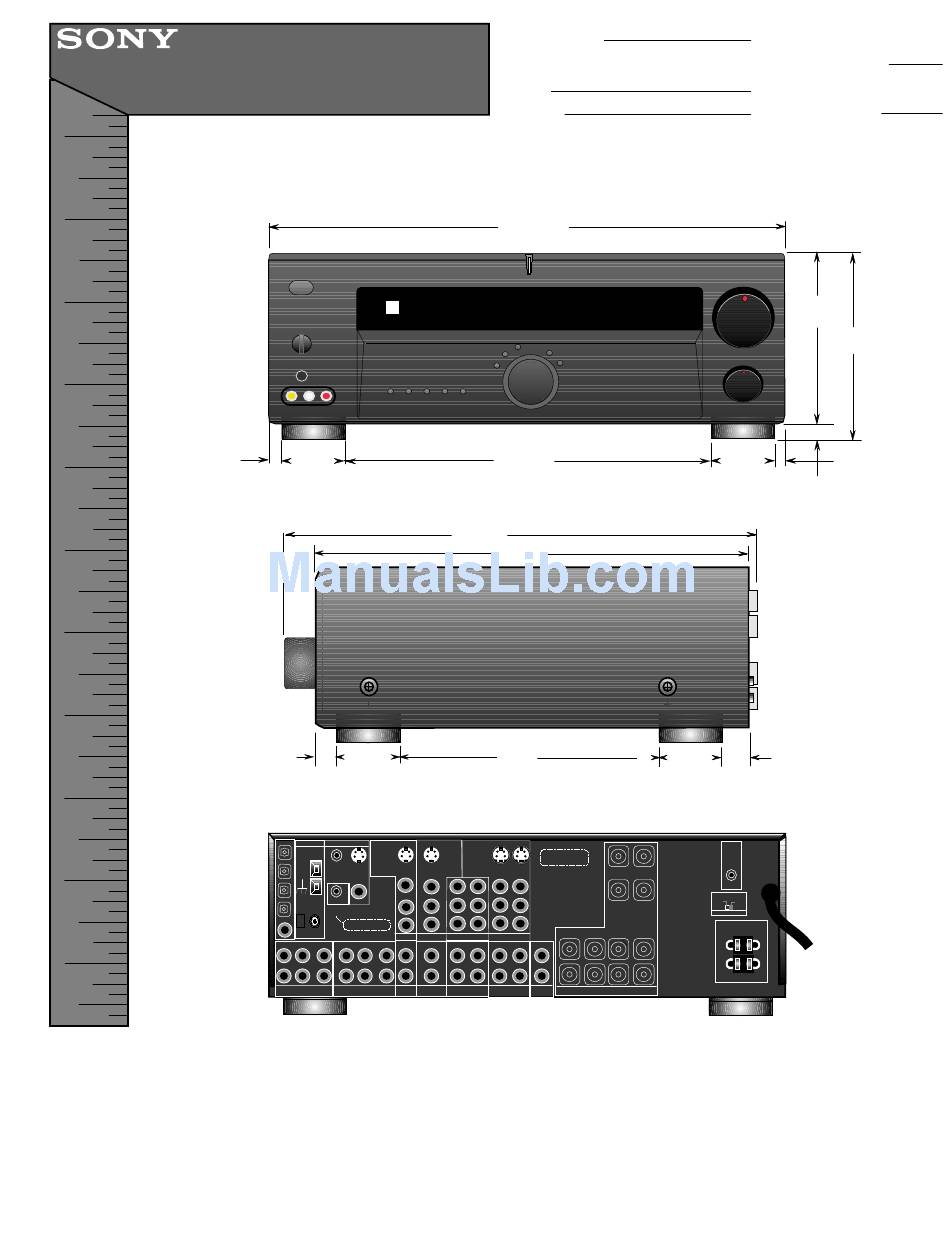

FRONT VIEW
R FM102.7MHz A3
SIDE VIEW
14 7/8 "
1 7/8 "
BACK VIEW
MONITOR
S-VIDEO S-VIDEO S-VIDEO
CTRL-S VIDEO
IN IN OUT
IN OUT
CONTROL
A1 ll
STR-DE675 ONLY!
TV/SAT DVD VIDEO 2 VIDEO 1
CNT FRONT REAR CNT
SUB SUB
WOOFER WOOFER
MULTI CH INPUT PH CD
MD/DAT
SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
Dolby Digital
DESCRIPTION:
Receiver
DIMENSIONS
(WHD): 17" x 6 1/4" x 14 7/8"
WEIGHT:
Approx 35 lbs
17"
12 1/4 "
12 7/8"
7 1/2" 1 7/8 "
S-VIDEO ON
STR-DE675 ONLY!
S-VIDEO
IN
FRONT
SURR
SURROUND CNT
BACK
2nd
SPEAKERS
TAPE
AUDIO OUT
POWER
REQUIREMENTS:
POWER
CONSUMPTION:
5 3/4"
6 1/4"
1 7/8 " 1/2"
1/2"
5/8"
AUDIO
OUT
4 8
IMP Selector
AC OUTLET
SWITCHED
120V
60H
300
Watts
