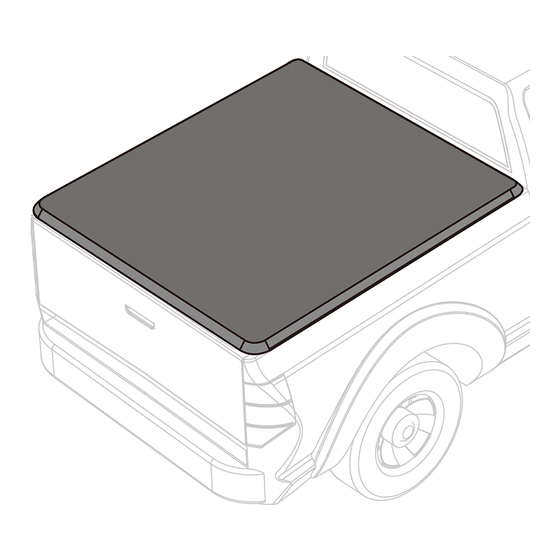

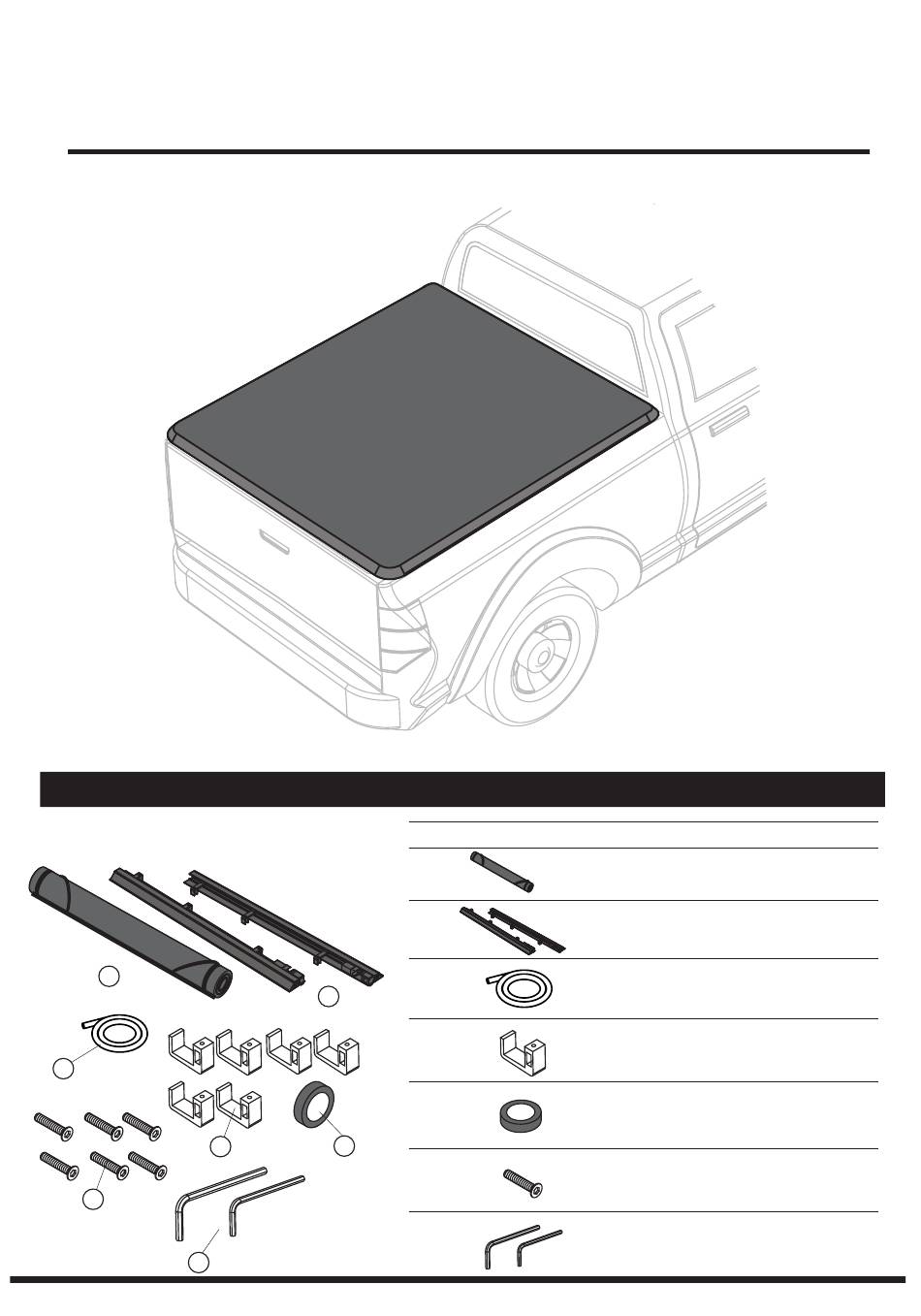

- Page 1 SOFT ROLL UP TONNEAU COVER INSTALLATION GUIDE PARTS LIST ITEM DESCRIPTION QTY. Bed cover Side Rails(L&R) Seal strip 118(in) G clamp Light screw hexagonal wrench Page 1/7...
- Page 2 Clean truck bed thoroughly before installa on. S ck the supplied front seal strip on the front bed rail by aligning with the outer edge. Install the provided LED lamps according to the actual situa on of the truck bed. IF THE TRUCK'S FRONT BED RAIL IS LOWER THAN THE SIDES, USE THE PROVIDED WEATHER SEAL STRIPS.
- Page 3 Slide the front clamp to the best posi on, clamp the interface under the metal bed rail point, and then use the Triangle screw to rotate into the metal rod to fix the en re clamp Un e the spring cords on both sides of the bed cover and unfold the bed cover to ensure correct and neat coverage of the en re lathe Page 3/7...
- Page 4 Snap the tail lock into the lock groove of the side rails as shown Press down to close the cover and the lock will automa cally clamp. Page 4/7...
-
Page 5: Finish The Installation
FINISH THE INSTALLATION Tighten the velcro on both sides of the bed cover. Make the cover more docile and overall, and finally complete the installa on. NOTE: COVER MAY NOT COMPLETELY COVER TO THE OUTSIDE EDGE OF THE BED RAILS DUE TO SLIGHT DIFFERENCE IN TRUCK BED SHAPE FOR DIFFERENT YEAR MODELS Open the tailgate, pull down the rope, and the lock will automa cally open. - Page 6 Roll up the tarp and buckle the spring cord to enjoy plenty of bed space. There is a scale label on the tail of the side rail. If you find that the bed cover tarp is loose, you can move the tail lock backwards according to the situa on.
- Page 7 SPECIAL INSTRUCTIONS FOR ALTERNATIVE BRACKETS SUPPLEMENT TO INSTALLATION INSTRUCTIONS (Only for models with system track) T clamp *4 L clamp *4 Screw base*4 Screw A*4 Screws B*4 Screws C*4 Slide the T clamp into the side rail Fixed with screw C Slide the screw base into the system track Use L clamp and screw B to fix system rail and side rail...
