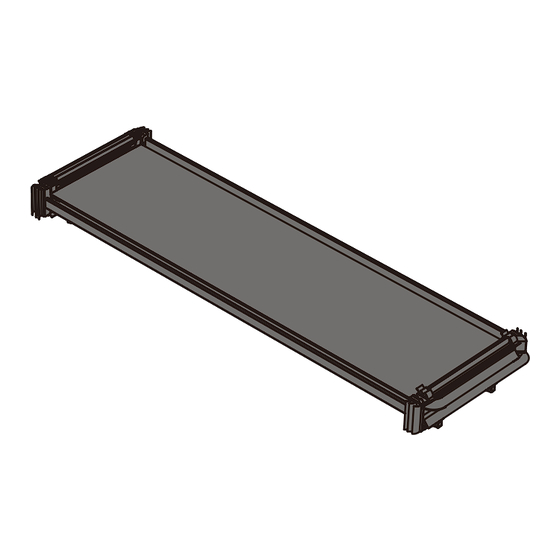

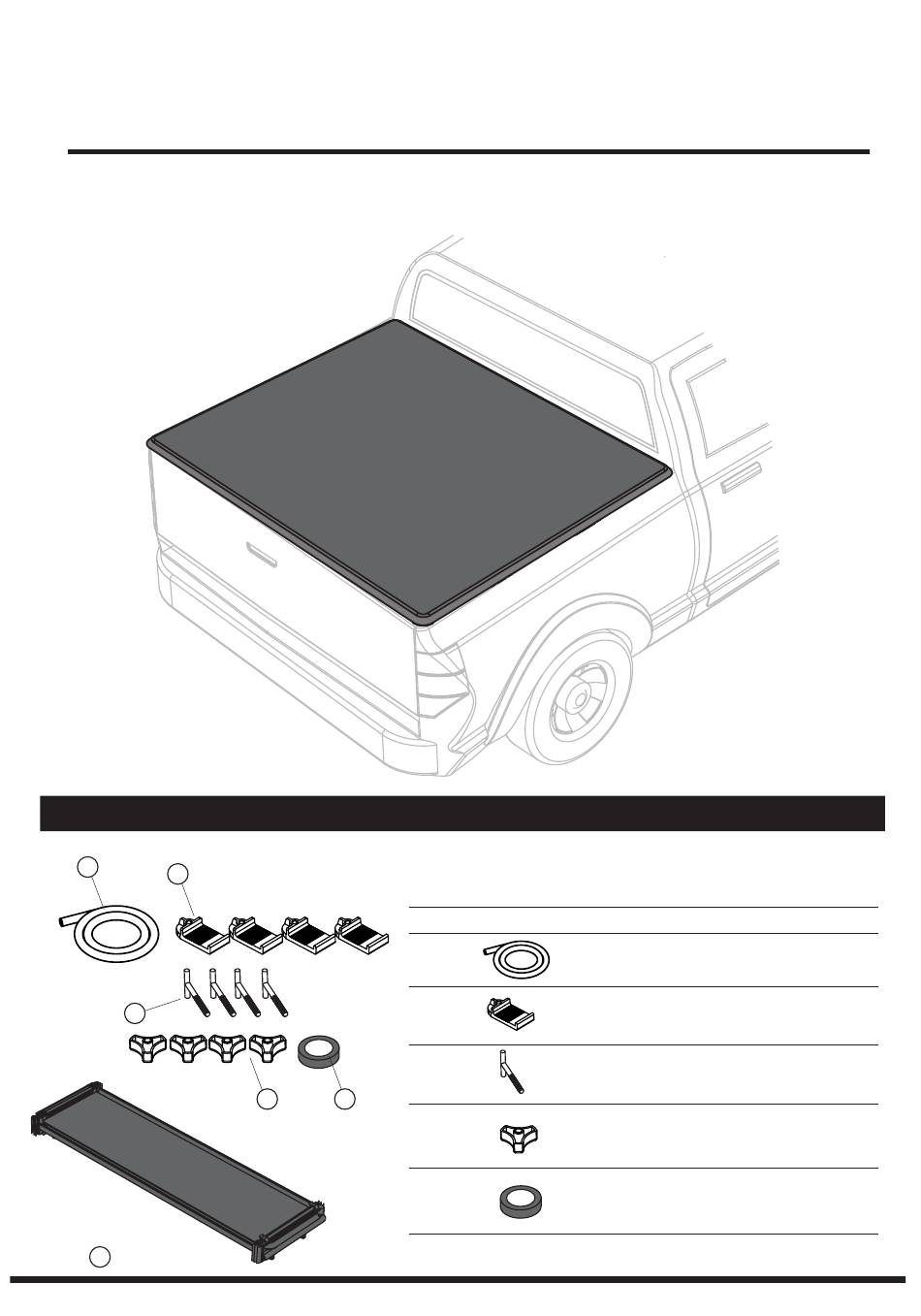

- Page 1 SOFT FOLDING TONNEAU COVER INSTALLATION GUIDE PARTS LIST ITEM DESCRIPTION QTY. Seal strip 118(in) Front clamps T-bar Triangle screw Light Bed cover*1 Page 1/7...
- Page 2 Clean truck bed thoroughly before installa on. S ck the supplied front seal strip on the front bed rail by aligning with the outer edge. Install the provided LED lamps according to the actual situa on of the truck bed. IF THE TRUCK'S FRONT BED RAIL IS LOWER THAN THE SIDES, USE THE PROVIDED WEATHER SEAL STRIPS.
- Page 3 Clamp the T-bar on the aluminum slider of the first fold, use Front clamps and Triangle screw to install it on the T-bar to complete the first fold. Ⅰ Ⅱ Ⅲ Slide the front clamp to the best posi o, clamp the interface under the metal bed rail, and then use the Triangle screw to rotate into the metal rod to fix the en re clamp Page 3/7...
- Page 4 Open the bungee cord at the front end,fully unfold cover towards the tailgate and ensure cover ailgns on all sides Page 4/7...
-
Page 5: Finish The Installation
Adjust the connec on posi on of the rear clamp and T-bar according to the actual situa on, open the cover and place it on the lathe, and push the rear clamp ver cally to fix it to the rails on both sides of the lathe. FINISH THE INSTALLATION A er rear clamps have been latched securely, close/lock tailgate and cover cannot be opened from the outside... - Page 6 When it is necessary to completely foldthe cover, place the rear clamps correctly clamping rubber block, and then fold it. Page6/7...
- Page 7 SPECIAL INSTRUCTIONS FOR ALTERNATIVE BRACKETS SUPPLEMENT TO INSTALLATION INSTRUCTIONS (Only for models with system track) J-shaped aluminum*6 Screw base*12 Screws, washers*12 Slide the screw base into Put the gaskets in order and ghten Fix the J-shaped aluminum the system rail the screws according to the posi on of the clamps on the cover...
