- Page 1 Type-C 5-in-1 Multiple Port Adapter for Ipad User Manual...
-
Page 2: Table Of Contents
Type-C 5-in-1 Multiple Port Adapter for Ipad Contents 1.0 INTRODUCTION ..........1 2.0 FEATURES ............1 3.0 SPECIFICATIONS ..........1 4.0 PACKAGE CONTENTS ........4 5.0 CONNECTION DIAGRAM ........4... -
Page 3: Introduction

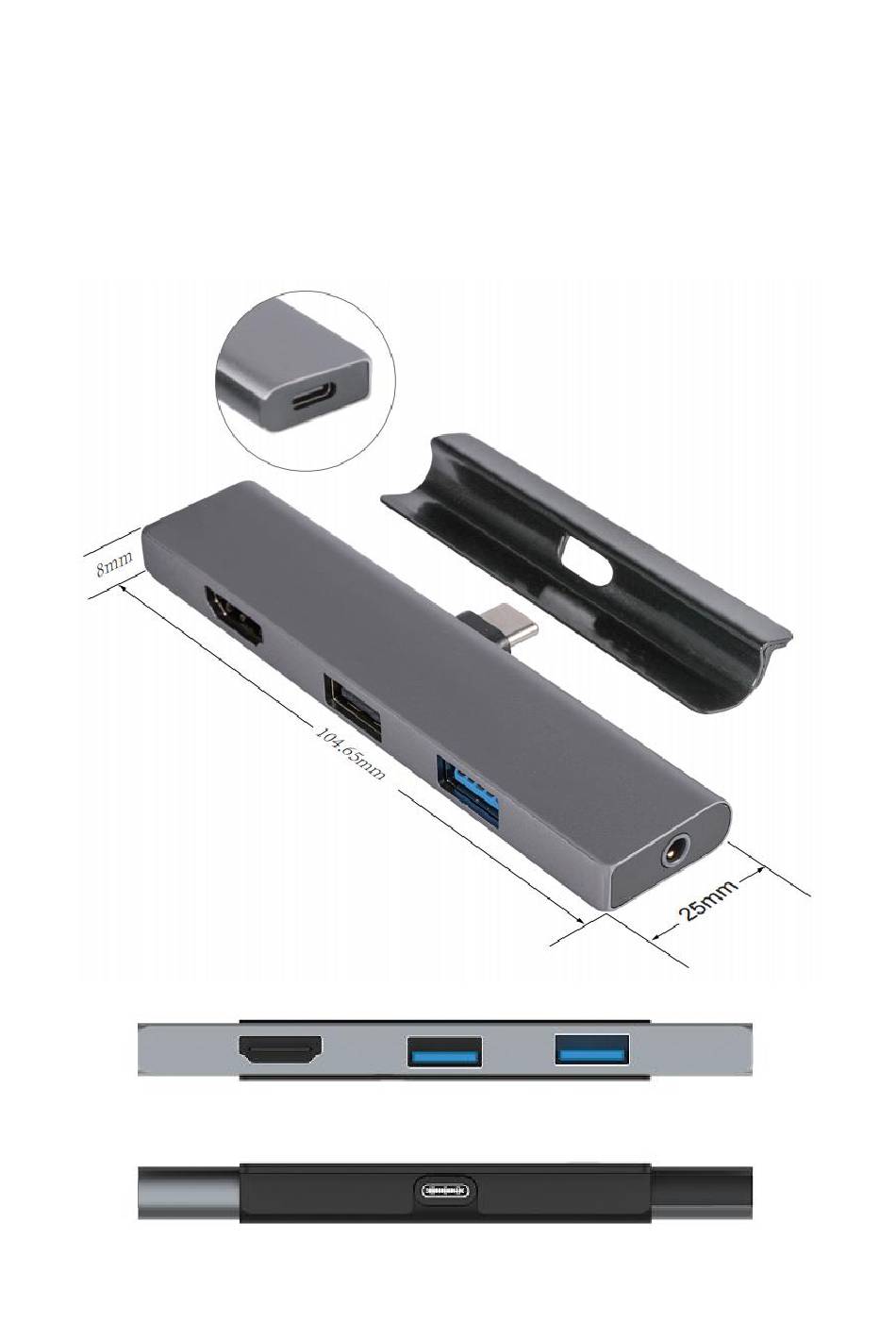

Type-C 5-in-1 Multiple Port Adapter for Ipad DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference. 1.0 INTRODUCTION This is a 5-in-1 Type-C hub with HDMI, USB-A3.0，USB-A2.0, 3.5mm audio and Type-C PD charging, of which the ID design perfectly suits for Apple Ipad Pro. -
Page 4: Specifications
Type-C 5-in-1 Multiple Port Adapter for Ipad 3.0 SPECIFICATIONS Connector Upstream Type-C Malex1 Downstream HDMIx1 USB-A 2.0x1 USB-A 3.0x1 3.5mm combo audiox1 Type-C Femalex1 ( PD Charging) Type-C Malex1(Connect to host) Support DP1.4 Alt mode,downward compatible with DP1.2 Alt mode Note: To get max bandwidth, the host should support standard DP1.4 Alt mode with DSC3:1 and HBR3... - Page 5 Type-C 5-in-1 Multiple Port Adapter for Ipad When two USB ports output more than 1A totally, it’s suggested to connect a PD adapter to supply enough power. 3.5mm combo audioX1 Support phone out with digital audio max 96KHz ADC sampling rate and 24bits ADC resolution ...
-
Page 6: Package Contents
Type-C 5-in-1 Multiple Port Adapter for Ipad 4.0 PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: Main unit x1 User Manual x1 5.0 CONNECTION DIAGRAM...
