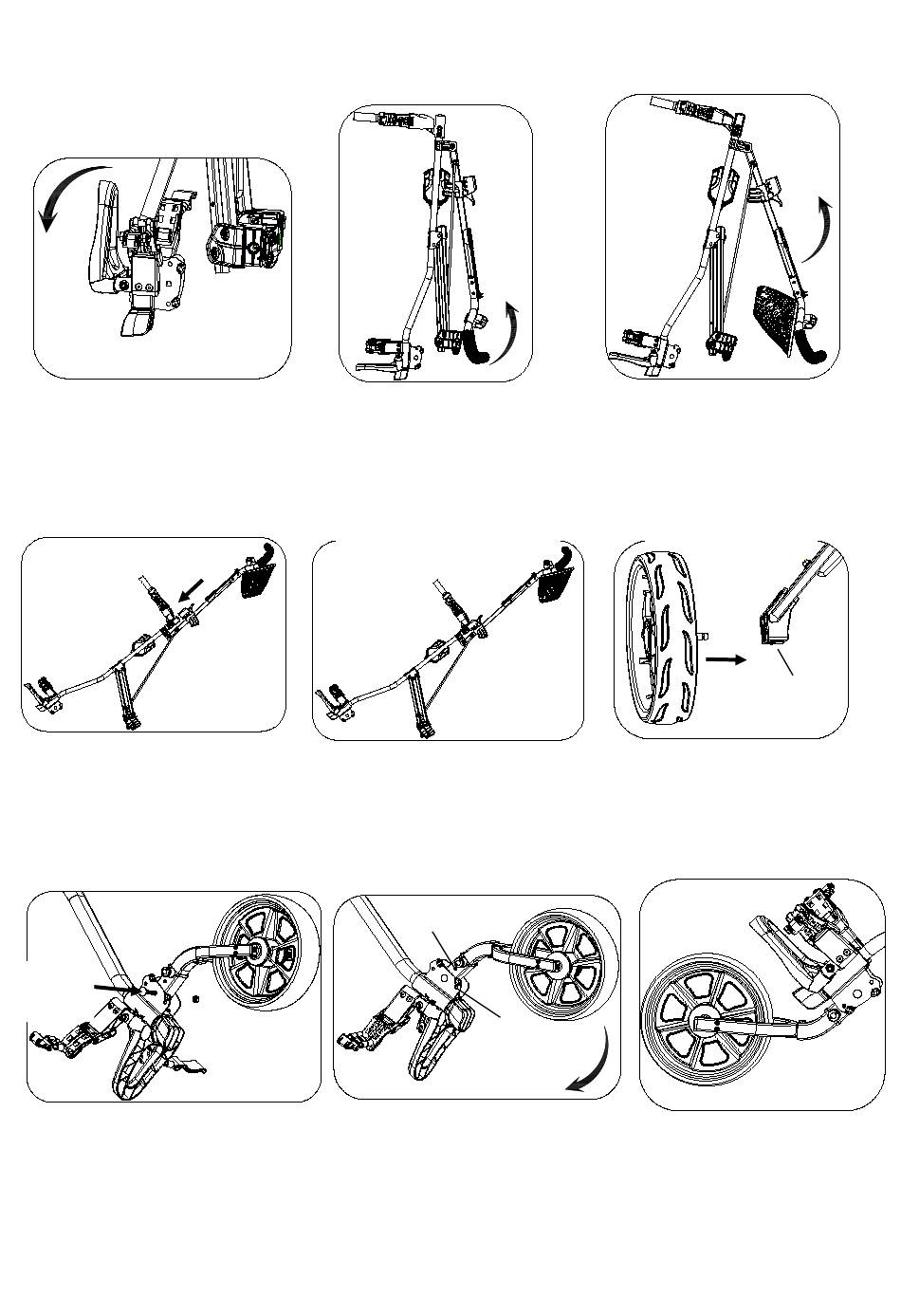

Assembly the cart
Extend the lower bag holder
assembly as Fig. 1.
Fig. 4
Fig. 7
M6*40mm
screw
Assembly front wheel set into the lower frame by 1pc M6*40mm screw and nut as Fig.7,then
rotate until the pin inserts in the hole as Fig.8＆9.
Fig. 2
Fig. 1
Holding the lower main frame with one hand and lift the
handle/upper frame upward to extend the cart as shown Fig
2&3 till the cart is fully extended as Fig. 4. Slide down the
locking holder into the top of the main body frame to lock the
cart as Fig. 4.
Fig. 5
The upper and main frames
are fully extended as Shown
in Fig. 5.
Fig. 8
pin
hole
2
Fig. 3
Fig. 6
button
Press the button on the wheel
lock mechanism to assembly
rear wheel as Fig.6.
