Caddytek CaddyLite 11.5 V3 Manual

Package contents

1. The main frame of the cart
2. Two main wheels
3. Front wheel assembly
4. Umbrella holder
5. Drink holder
6. This user manual
7. Tools for adjustment

In case any of the above items are missing or damaged, please call 800-906-6918 or email service@caddytek.net to report.

Parts identification

1. Foam grip
2. Handle frame
3. Umbrella holder base
4. Mesh net basket
5. Scorecard holder assembly
6. Upper main frame
7. Sliding locking/unlocking holder bracket
8. Upper bag holder bracket assembly
9. Connection joint
10. Right stabilization bar
    J1: Left stabilization bar
11. Beverage holder
12. Main frame
13. Leg bracket
14. 2 holes leg frame
    4 holes leg frame
15. Rear wheel assembly
16. Right wheel locking mechanism
    P1: Left wheel locking mechanism
17. Foot brake assembly
18. Anti-splay wire
19. Lower bag holder bracket assembly
20. Front wheel assembly
21. Umbrella holder
22. Basket

Assembly the cart

Extend the lower bag holder assembly as Fig. 1.

Holding the lower main frame with one hand and lift the handle/upper frame upward to extend the cart as shown Fig 2&3 till the cart is fully extended as Fig. 4. Slide down the locking holder into the top of the main body frame to lock the cart as Fig. 4.

The upper and main frames are fully extended as Shown in Fig. 5.

Press the button on the wheel lock mechanism to assembly rear wheel as Fig.6.

Assembly front wheel set into the lower frame by 1pc M6*40mm screw and nut as Fig.7,then rotate until the pin inserts in the hole as Fig.8&9.

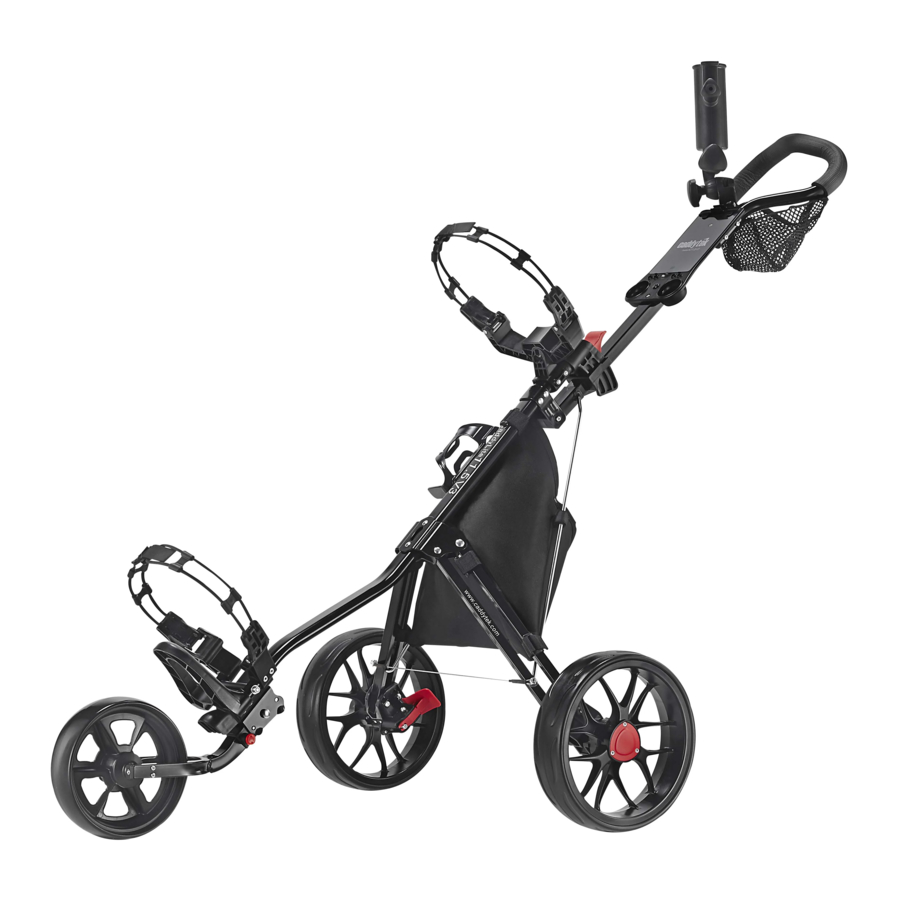

The cart is fully assembled and extended as Fig.10.

Folding the cart

Press the button to release the front wheel, then fold until the pin inserts in the hole as Fig.11&12.

Slide the connecting holder upward to release the upper main frame and fold the upper main frame downward fully to fold the cart as shown in Fig.13&14. & 14.

The cart is fully folded as shown in Fig.15.

Umbrella Holder

To put in use: Simply attach the umbrella holder onto the cart as in Fig. 16&17.

Use the brake

Press the footbrake to brake, lift it up to release as Fig. 18.

Front Wheel Adjustment Mechanism

If during use, you find the cart veers to the right or left please see the instructions below to correct this problem.(Fig.19)

If the cart veers to the left, face the front wheel of the cart and use the Allen wrench provided to screw the right bolt counterclockwise or the left bolt clockwise until the front wheel is centered between the front fork.(Fig.20)

If the cart veers to the right, face the front wheel of the cart and use the Allen wrench provided to screw the left bolt counterclockwise or the right bolt clockwise until the front wheel is centered between the front fork.(Fig.21)

Bag Holder Strap Length Adjustment

Refer to the Fig. 22 & Fig.23:

1. Pull the elastic strap out of the strap buckle as in fig. 22.

2. Adjust the strap to the desired length.
3. Push the elastic strap back to the strap buckle as in fig. 23.


Adjusting Handle Height

Press the red buckle to adjust the suitable handle height, and then release the buckle to lock the handle in position as Fig.24.

REGISTER YOUR PRODUCT
Please register your golf cart and purchase on line at www.caddytek.com. Failure to do so may results in the delayed response to your warranty claim.

FOR YOUR OWN SAFETY, PLEASE REVIEW THESE WARNINGS AND KEEP THIS USER GUIDE FOR FUTURE REFERENCE.

• Before using this golf cart, please read and understand the important instructions and warnings in this user guide.
• AVOID INJURY by always following the instructions carefully.
• AVOID INJURY by keeping clear of moving parts while adjusting, folding or unfolding this cart.
• ALWAYS make sure the cart is fully extended and locked before use.
• ALWAYS make sure the cart is folded and locked properly before lifting or transporting.
• ALWAYS use the brake when parking the cart.
• DO NOT run while using this cart.
• DO NOT use accessories other than those designed specifically for this cart.
• Keep hands and fingers away from moving parts or sliding sections of the cart.
