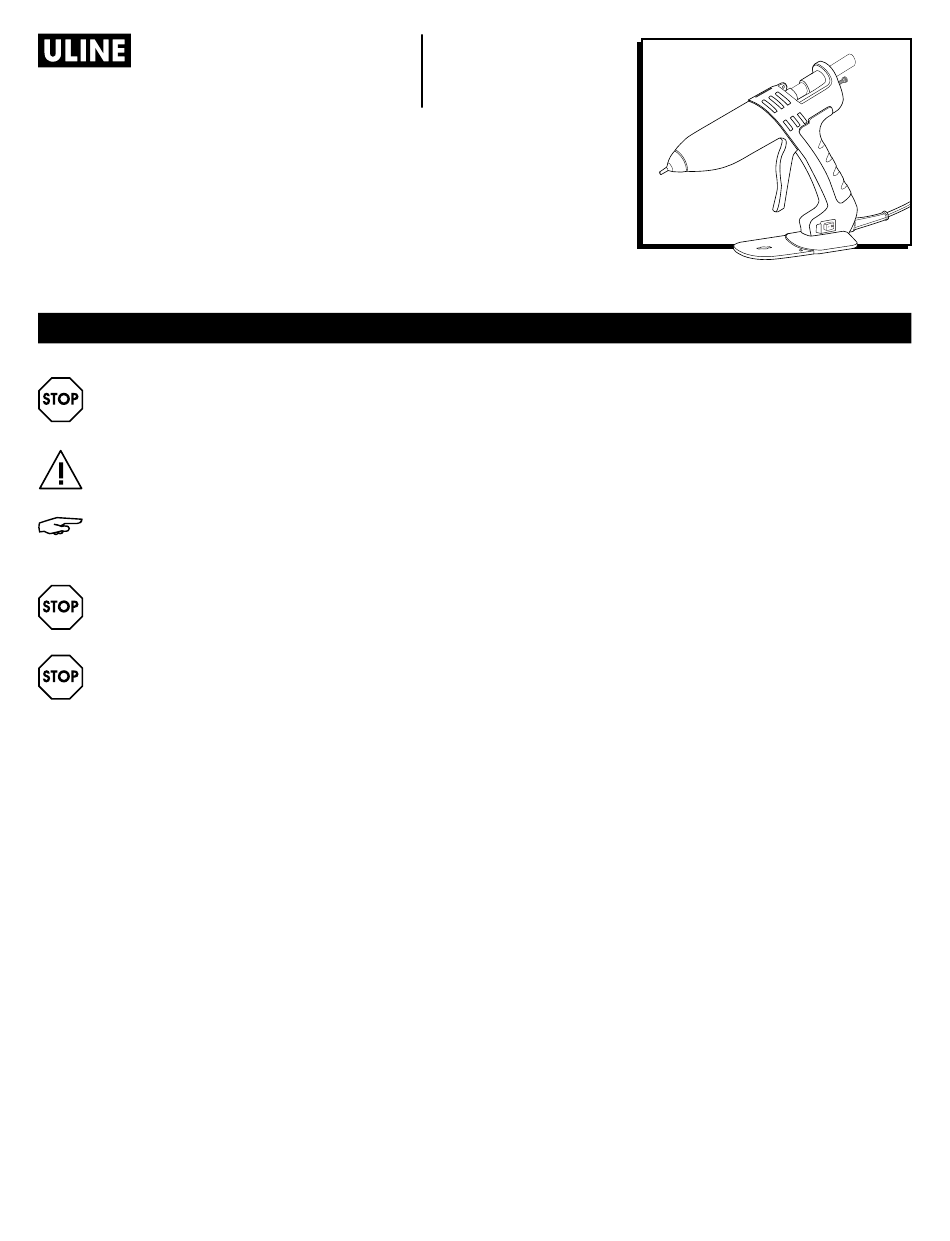

H-11043
3M™ AE GEN II GLUE GUN –
1⁄2", 250 WATT
WARNING! Indicates a hazardous situation
which, if not avoided, could result in serious
injury or death.
CAUTION! Indicates a hazardous situation
which, if not avoided, could result in minor or
moderate injury and/or property damage.
NOTE: Indicates a situation which, if not
avoided, could result in property damage.
WARNING! Read instructions thoroughly before
operating or performing any maintenance on
3M™ glue gun.
WARNING! To reduce the risk of electrical shock
or injury, observe the following safety rules:
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
• Children or persons needing supervision
should be supervised to ensure they do not
play with the appliance.
• Operate and service the applicator only as
described in these instructions.
• Connect the applicator only to a properly
grounded outlet.
• Do not unplug the applicator by pulling on
the cord. Grasp the plug, not the cord, to
unplug.
• Do not handle the plug or applicator with
wet hands.
PAGE 1 OF 15
1-800-295-5510
uline.com
SAFETY
• Do not use the applicator outdoors or on wet
surfaces.
• Do not use the applicator if the cord or plug
is damaged.
• Do not use the applicator if it is not working
properly or has been damaged, submerged
in water or left outdoors.
• Use only authorized replacement parts. Use
of other replacement parts may cause
hazardous conditions or damage the
applicator. Repair should only be performed
by a qualified repair person.
• If supply cord is damaged, it must be
replaced by a qualified repair person or
Uline. Contact Uline Customer Service at
1-800-295-5510 for assistance.
• Do not use near highly flammable items.
• If an extension cord is used, use an extension
cord that complies with local electrical
requirements and is properly rated for your
application. Use of an improper extension
cord may cause electrical shock.
• Do not clean or remove the 3M™ hot melt
adhesive with solvent. This may cause fire.
For additional health and safety information,
see the product label and safety data sheet
for 3M™ hot melt adhesive used.
• Do not modify the plug provided with
the applicator or use with an adaptor or
ungrounded outlet. Improper grounding
connection of the applicator may cause
electrical shock. Check with a qualified
electrician or service person to determine
whether the plug is properly grounded. If the
plug will not fit the outlet, have a qualified
electrician or service person install the
proper outlet.
Para Español, vea páginas 6-10.
Pour le français, consulter les pages 11-15.
1223 IH-11043
