- Page 1 Box Manual for ATS200 V1.0, May 21 , 2024 © 2024 page 1 of 13...
-
Page 2: About
We believe that preparing for whatever comes next is as important as enjoying the outdoors. Be prepared, get Raddy, and HAVE FUN! Please feel free to contact us by email via support@iraddy.com and we'll do our best to solve your concerns. -
Page 3: Table Of Contents
Box Manual for ATS200 v1.0 Table of contents About ..................... 2 Product features ..................5 What is in the box? .................. 6 Get started ....................7 Operation ....................7 Charging ........................7 Flashlight on /off ......................7 Power on/off ....................... 7 Touch lock ........................ - Page 4 Box Manual for ATS200 v1.0 5.3.3 External antenna ..................11 Frequencies of some stations .............. 12 Shortwave stations ....................12 Technical specifications ................ 13 General specifications ..................... 13 Covered frequency ranges ..................13 Where to find support material ............13 ©...
-
Page 5: Product Features

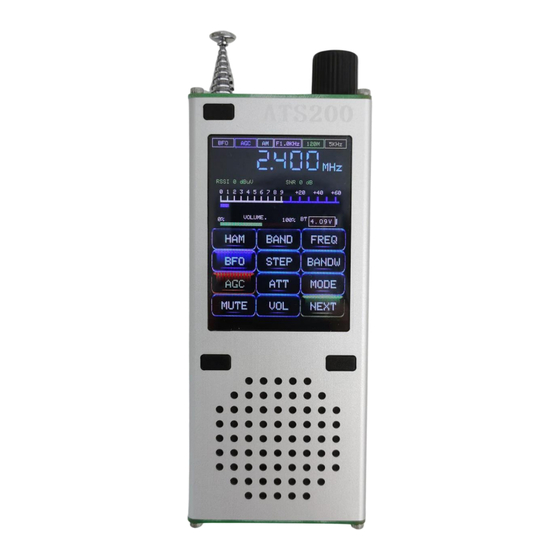

Product features • The ATS200 can receive radio signals of LW, MW, SW, FM and AIR. Depending on the selected band It supports several kinds of demodulation (FM, AM, LSB, USB and Stereo) and Bandwidth (BW) settings according to the used frequency band, attenuation for local stations, preamplifier for DX-stations and a socket for connecting an external antenna. -
Page 6: What Is In The Box
What is in the box? Thank you for choosing the ATS200. We recommend that you first check the delivery contents listed in the following table and keep the packaging for later storage. If something is missing or damaged, please contact your dealer immediately. -
Page 7: Get Started
Press the upper left button for about 2 seconds to turn on the flashlight at the top of the ATS200. Press it again to turn off the flash light. 4.3 Power on/off Press the upper left button for more than 2 seconds until the touch screen backlight is turned on and the radio powers up. -
Page 8: Touch Lock
Amplifier (LNA). An activated Low Noise Amplifier is indicated by “LNA” left to the battery symbol. 4.7 Bluetooth ATS200 normally automatically pairs to Bluetooth devices that are in pairing mode. Short press the lower right button to disconnect a paired Bluetooth-Speaker/Earphone. -
Page 9: Menu Structure Of Soft Buttons
Box Manual for ATS200 v1.0 Menu structure of soft buttons The menu structure is subject to change without further notice depending on the firmware version. This manual is based on firmware “V5.2b_Dark”. Notes: Not all buttons/parameters are available in all bands. -
Page 10: Step
Box Manual for ATS200 v1.0 5.2.5 STEP Depending on the selected band the stepping width (when turning the rotary encoder to change the frequency can be set. 5.2.6 BANDW Depending on the selected band the bandwidth can be selected. 5.2.7 Automatic Gain Control (AGC) can be turned on and off. -
Page 11: Rds
5.3.1 USB-C On the top of the ATS200 you find a USB-C socket. To charge the built- in battery connect the USB-C socket via the supplied USB-cable to a 5V DC USB-A power source. Furthermore, the USB-C port can also be used to update the internal firmware of the radio. -
Page 12: Frequencies Of Some Stations
Box Manual for ATS200 v1.0 Frequencies of some stations 6.1 Shortwave stations Country Frequency (kHz) Modulation 2310, 2325, 2485, 4835, 4910, 5025, 5995, 6020, 6080, 7240, 9475, 9560, 9580, 9590, 9660, 9710, AUSTRALIA 11650, 11880, 12080, 13630, 13670, 15160, 15230, 15240, 15515, 17715, 17750, 17775,... -
Page 13: Technical Specifications
AIR BAND Where to find support material Please kindly note that all the files related to the ATS200 can be found in the Download area of our official website by following these steps: https://iraddy.com → Download → click on the appropriate radio model As soon as any new file becomes available, it will be published within our download area.
