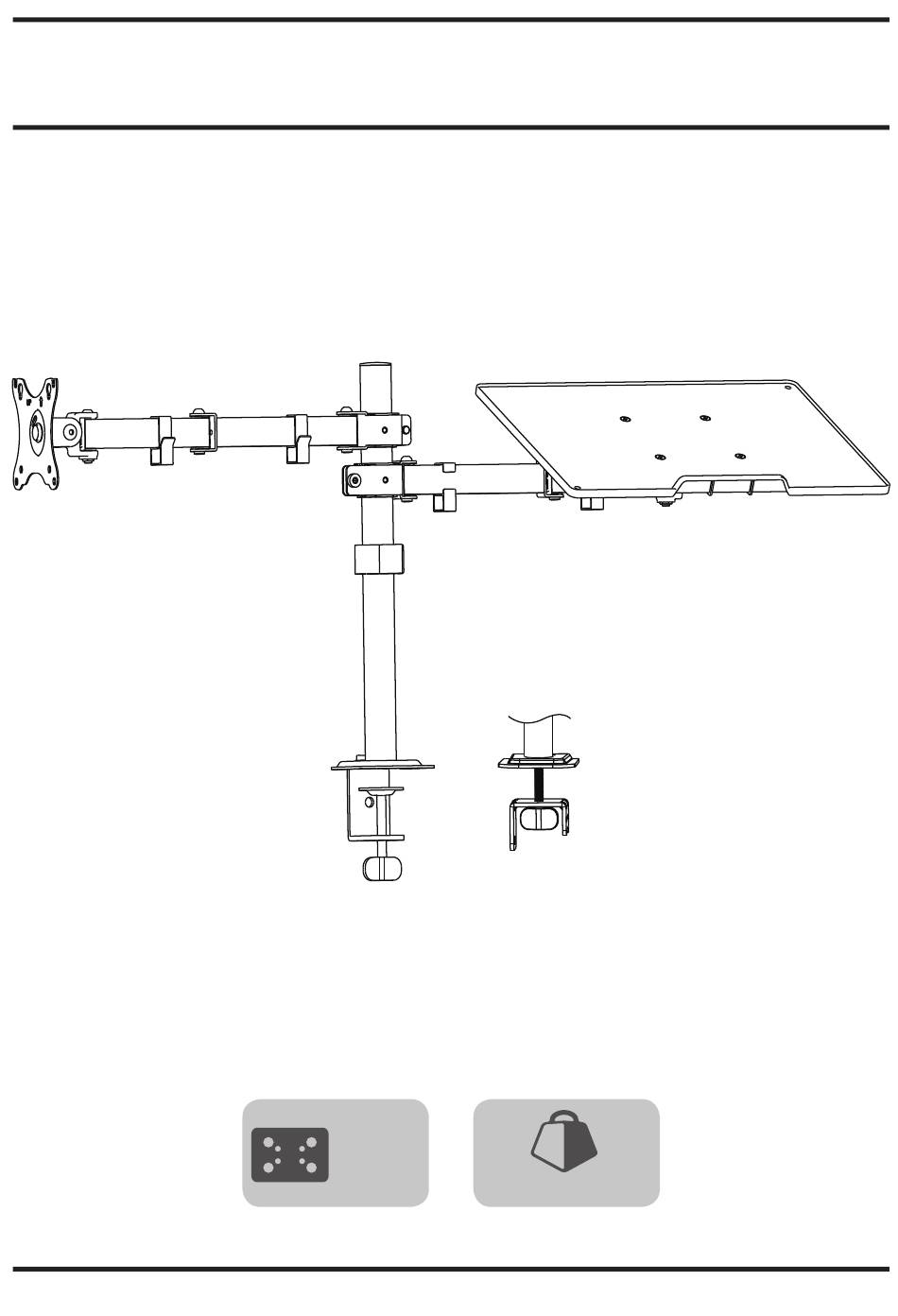

- Page 1 Monitor and Laptop Tray Desk Mount Instruction Manual 75x75mm 100x100mm (17.6lbs / 8kg)x2 DWD1414-US1.0 If you have any questions, please feel free to contact Customer Service via Amazon before returning.
-
Page 2: Package Contents
WARNING! If you have any confusion or are not quite sure about the installation, please do not hesitate to ask for our help. Before assembly, please check and make sure all necessary accessories are included and undamaged. Improper installation, such as using the product for monitors over its load capacity or for any purpose not explicitly specified, may cause damage or serious injury. -
Page 3: Assembly Steps
ASSEMBLY STEPS Warm Tips You could also refer to the Video Guide about installation on our product page. STEP 1: Clamp Installation OR Grommet Base Installation OPTION A: Clamp Installation Apply pad (F) to the Pole (C) bottom to avoid desk scratches. Mount Clamp (B) to the bottom of Pole (C) by tightening pre-assembled bolts (B6) with 5mm Allen Key (G). - Page 4 STEP 1: (Continued) OPTION B: Grommet Base Installation If existing grommet hole comes with a plastic protector, remove it to ensure a flat surface before installing the desk mount. Detach Bracket (B1) and Bolt Y (B2) from Clamp (B). DESK ø...
-
Page 5: Step 2 : Arm Installation
STEP 2 : Arm Installation Install wire clip (D) and two swivel arms (A) to the pole (C). Fasten the bolt with supplied 6mm Allen Key (H). Attach the wire clips (E) to the swivel arm (A). Tighten DESK DESK Please do not move stand outside desk for safety! - Page 6 STEP 3 : Attach the Monitor or Laptop Tray to the VESA Plate 3-1: Attach Monitor OPTION A: Flat Back Monitor Firstly choose suitable srcews (I) according to the hole size of your monitor back, then assemble top two of them with 2-3mm space left.
-
Page 7: Step 4: Tilt Adjustment
3-2: Attach Laptop Tray Install the swivel arm (A) to the laptop tray (K) using 4pcs screws (I) and 4pcs butterfly nuts (J) , tighten by 5mm Allen key (G) . STEP 4: Tilt Adjustment Tighten the bolt with the supplied 5mm Allen Key (G) to fix the tilt angle. - Page 8 Guideline to adjust monitor tilting angle. Note: When tilted, if the monitor sags or does not stay, and if the method is useless, please feel free to contact our customer service. Problem: If monitor faces down Solution: 1. Loosen the tilting bolt. 2.
-
Page 9: Step 6: Cable Management
STEP 6: Cable Management Manage cables and store Allen Keys in wire clip (D) for future use. G or H... -
Page 10: Product Dimensions
Adjust as Desired Adjust monitor position and rotation. ±90° ±90° ±90° +90° -90° 360° Note: To ensure stability, the tightness of the rotating axis has been preset, so it would be kind of difficult to rotate the VESA plate. Suggestion: Please attach the monitor first, then hold the sides of it with both hands, and rotate vigorously. - Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
