Carr 103991-1 Installation Instructions

A
A
B
C
5/16 Jam Nut
D
Optional wedge washers
5/16 Jam Nut
E
Optional wedge washers
Mark
center line
Mark
center line
Applications for Diagram
Mark
center line
3 vertical marked center holes
3 vertical marked center holes
Applications for Diagram "A"
CHEVY/GMC FORD
73-87 Pickup 91-01 Explorer
76-91 Suburban 96-01 Mer Mtn
76-93 S10/S15 PU 75-02 F/S E-Van
67-96 F/S Van 05-14 F/S E-Van
15-20 F/S E Van
DODGE (Cutaway cab)
74-93 F/S PU
JEEP
97-09 Dakota 93-98 Grd Chrk
74-92 Ram Chrgr
83-91 Raider MAZDA
91-94 Navajo
Applications for Diagram "B"
DODGE MAZDA
02-09 F/S Pickup* 83-93 B-Ser PU
02-09 Quad Cab
06-09 Mega Cab
MITSUBISHI
*Will not fit 09 1500 97-02 Montr Sport
IZUSU TOYOTA
84-91 Trooper 89-95 Pickup
91-02 Trooper 90-95 4 Runner
91-02 Rodeo 91-98 FJ80 LC
91-02 Amigo
89-93 Pickup
Applications for
"C"
Diagram "C"
DODGE
"Old Body Style"
94-02 F/S PU
98-02 F/S Quad
Applications for
Diagram "D"
FORD
01-03 Super Crew
97-04 F150 F/S PU
04 F150 Heritage
97-03 F150 Quad Cab
97-17 Expedition
Applications for Diagram "E"
CHEVY/GMC
02-09 Trail Blazer
02-09 Envoy
02-20 Denali Truck only
88-18 Sierra/Silverado 1500
88-19 Sierra/Silverado 2500-
3500
88-18 F/S Crew Cab all doors
02-13 Avalanche
FORD
04-14 F150 New Body Style
MITSUBISHI
78-94 Pickup
83-99 Montero
NISSAN
98-01 Frontier Reg
02-19 Frontier Crw
00-04 Xterra all drs
86-01 Pathfinder
86-97 Hrdbody PU
72-86 Pickup

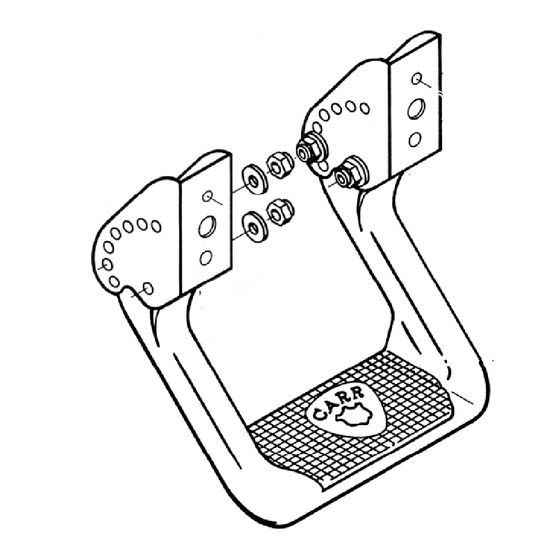

Hoop II Multi-Mount Step
Installation Instructions
Part No's:
103991-1 / 103992-1
103994-1 / 103997-1
For Diagrams: A / B / C / D / E
Quality and Style that Endures
Follow the diagram and the
written directions carefully for a
proper, safe installation.
Should you encounter an
unusual, unforeseen problem,
contact our Technical Help Line
7:00 AM – 3:00 PM Pacific Time
(951) 719-1068
Visit our web-site at
www.CARR.com
Warranty Information
On our website
Carr Pattern Co., Inc.
WAX YOUR STEP ON A
REGULAR BASIS TO
MAINTAIN ITS LUSTER
TOYOTA
74-88 Pickup
84-89 4 Runner
80-91 FJ60/FJ62
