- Page 1 Installation Instructions for Carr XRS Rota Light Bar - Black Powder Coat (07-16 Wrangler JK) Installation Time: 30-50 Minutes Tools Required: Ratchet Torque bits (8mm) Allen wrenches 3/16” All bolts and smaller pieces that are included...

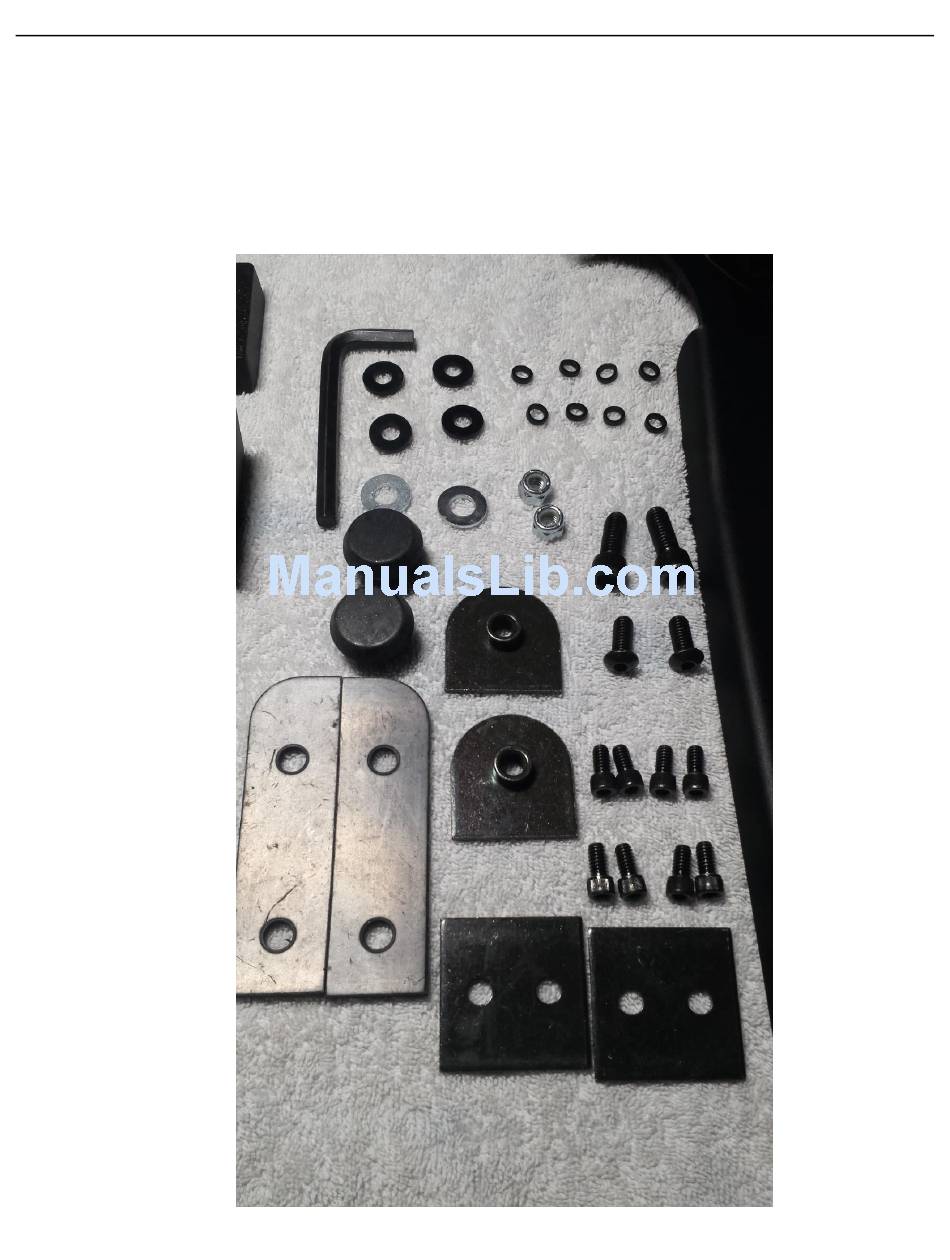

- Page 2 Bracket Mount with all parts for assembly (Same for both sides minus Torque bits *not included) Cross Bar I did not tighten everything down until the very end to ensure proper fit. I also did most of the assembly inside BEFORE mounting them to my 08 Jeep Jk.
- Page 3 2. Then secure the Mounting End Bracket to the Rota Square Casting (and the rest of the assembly) by using the 1/4 “socket bolts & Nylon washers and screwing them into the Rota square casting.
- Page 5 3. Lastly place the Rubber Grommet into the hole in the middle of the Mounting Bracket. I placed a little oil on it and “screwed” it in and it made life much easier. Then that side is complete! 4. Repeat the same steps to assemble the other side. 5.
- Page 7 6. After you mount one side repeat the process to the other side. 7. Take the cross bar and slide it onto the Rota Hood Casting and then place the 5/16” bolt through the Rota Hood Casting, through the cross bar, the holding plate (metal piece with two holes) and then add the washer to hold it in place.
- Page 8 Installation Instructions Written by Extreme Terrain Customer Adam A. Erlewein 07/19/2016...
