Summary of Contents for GRAVEDA GRASPRESSO GP9-1

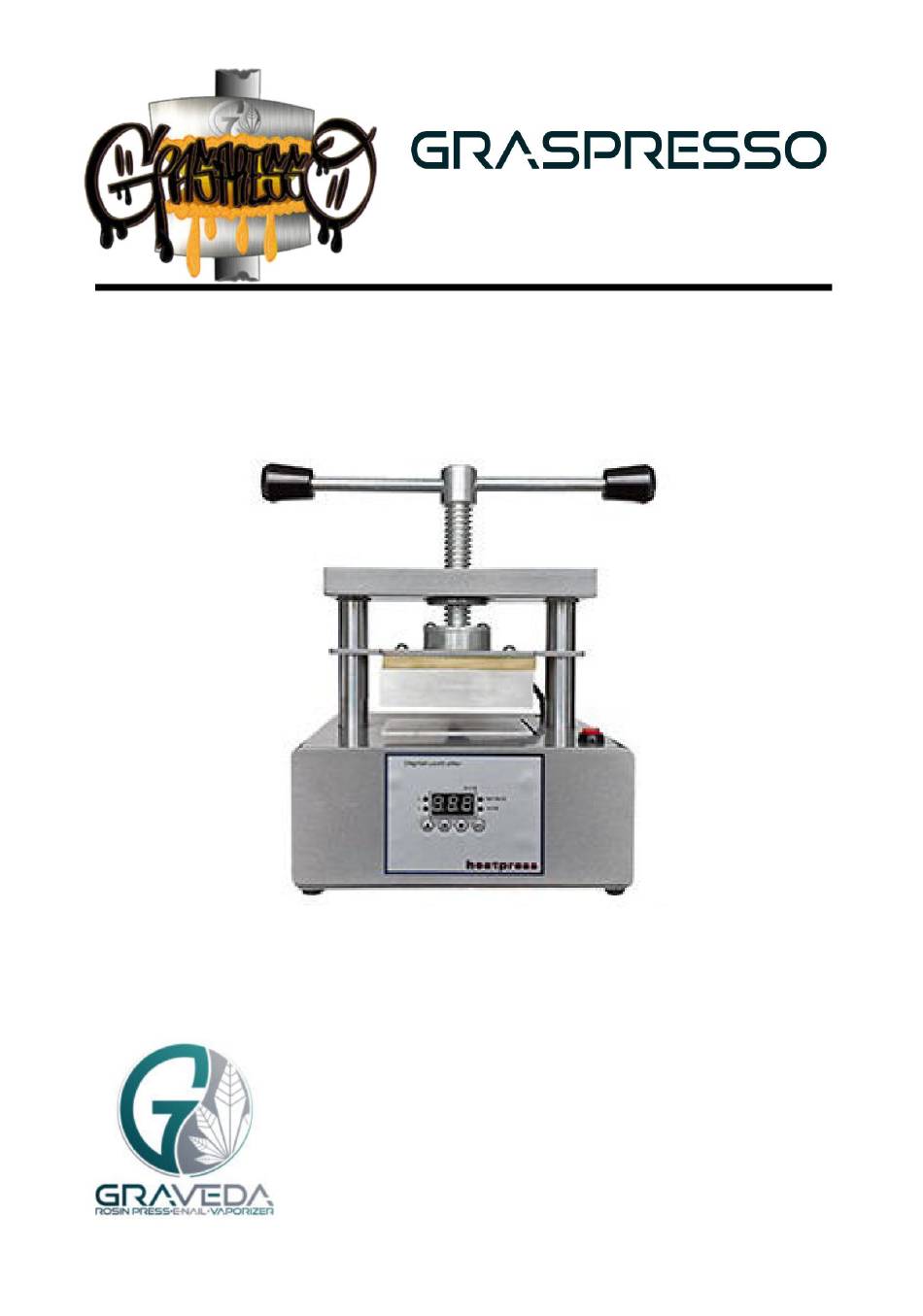

- Page 1 Machine Translated by Google ® GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark © all rights reserved GRAVEDA®GRASPRESSO® Rosin Presse 1T Manual press with up to 1000 kg pressure Kolophoniumpresse Model number: GP9-1...
-
Page 2: Table Of Contents
Machine Translated by Google Table of contents GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark Page 2 Contact & Warranty Page 3 Introduction Page 4 Precautions Page 5 Safety instructions Page 6 Unpacking and assembly Page 7 Functions and components... - Page 3 We accept no liability for damage to you or third parties that occurs due to improper or incorrect or intentionally incorrect handling of the press. Spare parts are available at cost price from GRAVEDA® Support at info@graveda.de available.
-
Page 4: Introduction
© Copyright by GRAVEDA® The published content, brand names, images and information provided are subject to German copyright and ancillary copyright law. - Page 5 If the product appears to be damaged or if there is obvious damage or malfunctions, please contact our GRAVEDA® customer service immediately at the email address info@graveda.de •...
-
Page 6: Safety Instructions
Machine Translated by Google safety instructions GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark • Use this product only as described in this manual. • Always keep the device out of the reach of children. • Check that the device is working properly before using it for the first time. -
Page 7: Unpacking And Assembly
5. After unpacking, check the device for damage. If there is any damage, contact GRAVEDA customer service immediately info@graveda.de 6. Make sure all accessories are present ÿ 1 x GRAVEDA® GRASPRESSO® Rosin Presse 1 Tonne GP9-1 ÿ 1 x Hebel ÿ 1 x power cable ÿ 1 x User Manual... -
Page 8: Functions And Components

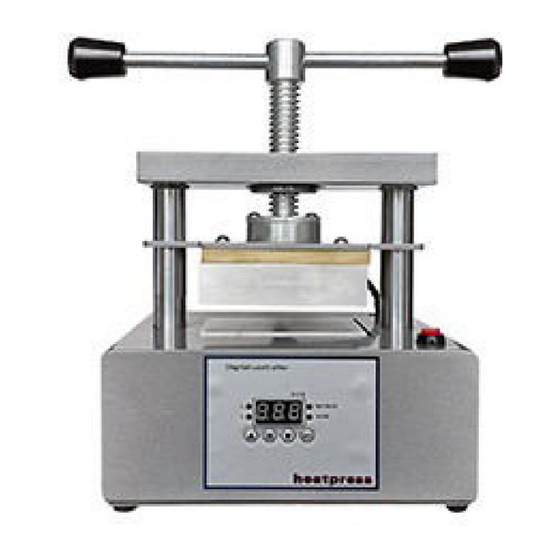

Machine Translated by Google Functions and components GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark Drehrad Heizplatten Timer On/Off switch Power connection Display Page 7... - Page 9 Machine Translated by Google Installation GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark Check the power voltage before using the device. The correct voltage is 220-240V/50Hz. Do not set the temperature above 235°C. The operating temperature is between 0°C and 235°C.
- Page 10 Machine Translated by Google Installation GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark Place the prepared material in the center of the base plate. The lever (depending on the model) is used to push the cylinder upwards until the desired pressure is reached.
-
Page 11: Technical Data Sheet
Machine Translated by Google Technical data sheet GRAVEDA® GRASPRESSO® Registered Trade Mark Registered Trade Mark GP9-1 Model Type 1 Tonne Pressure Manual Manual operation Operating mode 500W Power output Current 2.2 Ampere 50 Hz frequency 220 V Tension 7,5 x 12 cm Plate size 0°C –...
